Jirásek Vít, Stehlík Štěpán, Štenclová Pavla, Artemenko Anna, Rezek Bohuslav, Kromka Alexander
Institute of Physics, Czech Academy of Sciences Cukrovarnická 10, 160 21 Prague 6 Czech Republic
Institute of Plasma Physics, Czech Academy of Sciences Za Slovankou 1782/3, 182 00 Prague 8 Czech Republic.
RSC Adv. 2018 Nov 9;8(66):37681-37692. doi: 10.1039/c8ra07873d. eCollection 2018 Nov 7.

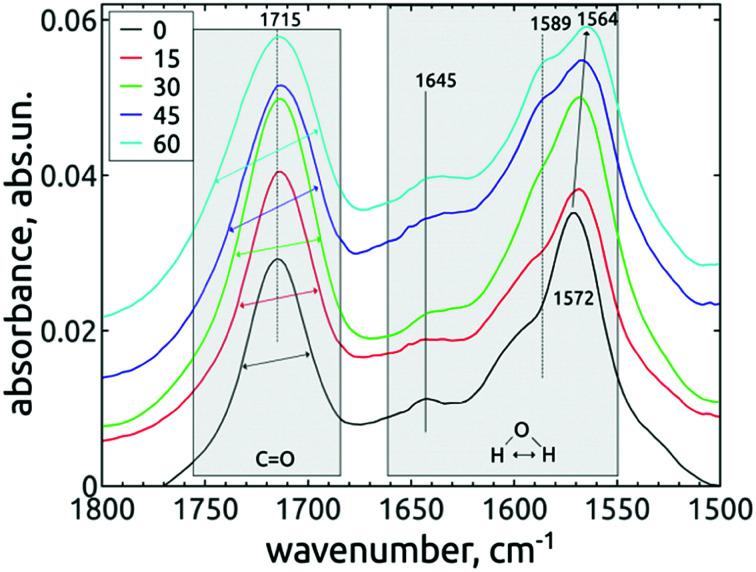

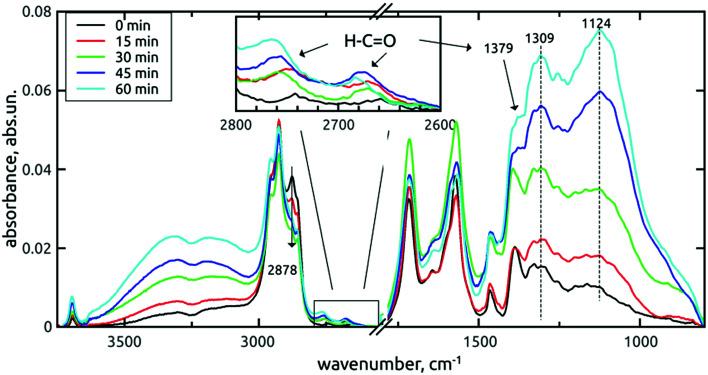

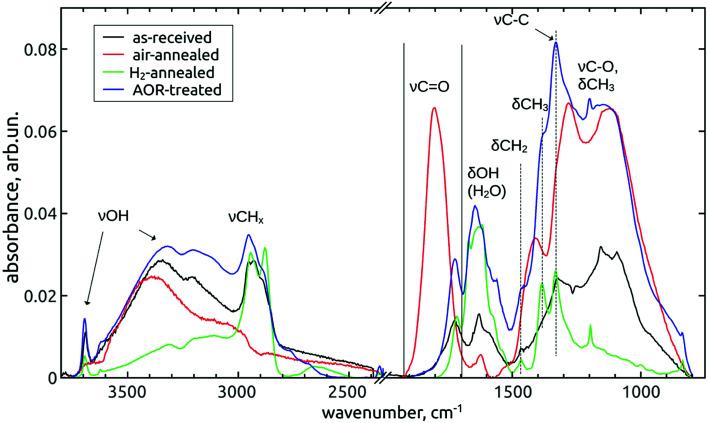

Plasma chemical surface modification of nanoparticles in gas-liquid type reactors enables a controllable, specific, low-cost, and environmentally friendly alternative to wet chemistry methods or thermal and dry plasma treatments. Here the atmospheric pressure radio-frequency microplasma jet (µ-APPJ) operating with 0.6% O in He is used to deliver aqueous oxygen radicals (AOR) to the surface of ∼3 nm hydrogenated detonation nanodiamonds (H-DNDs) suspended in water. The AOR-treated H-DND samples are characterized by FTIR and XPS spectroscopies and by AFM and SEM imaging. The main chemical reaction mechanism is identified as the abstraction of surface hydrogen atoms by O or OH radicals and a consequent attachment of the OH group, thereby increasing concentration of alcohols, carboxyls, and aldehydes on the DND's surface. FTIR spectra reveal also a structural re-arrangement of the surface water on the AOR-treated H-DNDs. Yet zeta-potential of AOR-treated H-DNDs still remains positive (decreases from +45 mV to +30 mV). The chemical modification gives rise to formation of nanoscale chain-like aggregates when AOR-treated H-DNDs are deposited on Si substrate.
在气液型反应器中对纳米颗粒进行等离子体化学表面改性,为湿化学方法或热等离子体和冷等离子体处理提供了一种可控、特定、低成本且环保的替代方案。在此,使用在氦气中通入0.6%氧气运行的大气压射频微等离子体射流(µ-APPJ),将水性氧自由基(AOR)输送到悬浮于水中的约3纳米氢化爆轰纳米金刚石(H-DNDs)表面。经AOR处理的H-DND样品通过傅里叶变换红外光谱(FTIR)和X射线光电子能谱(XPS)以及原子力显微镜(AFM)和扫描电子显微镜(SEM)成像进行表征。主要化学反应机制被确定为表面氢原子被氧或羟基自由基夺取,随后羟基附着,从而增加了DND表面醇、羧基和醛的浓度。FTIR光谱还揭示了经AOR处理的H-DNDs表面水的结构重排。然而,经AOR处理的H-DNDs的zeta电位仍保持正值(从+45 mV降至+30 mV)。当经AOR处理的H-DNDs沉积在硅衬底上时,化学改性导致形成纳米级链状聚集体。
