方形钢管混凝土柱承载力预测:基于元启发式神经网络模型的应用

Prediction of Bearing Capacity of the Square Concrete-Filled Steel Tube Columns: An Application of Metaheuristic-Based Neural Network Models.

作者信息

Sarir Payam, Armaghani Danial Jahed, Jiang Huanjun, Sabri Mohanad Muayad Sabri, He Biao, Ulrikh Dmitrii Vladimirovich

机构信息

College of Civil Engineering, Tongji University, Shanghai 200092, China.

State Key Laboratory of Disaster Reduction in Civil Engineering, Tongji University, Shanghai 200092, China.

出版信息

Materials (Basel). 2022 May 5;15(9):3309. doi: 10.3390/ma15093309.

DOI:10.3390/ma15093309
PMID:35591652
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9104517/
Abstract

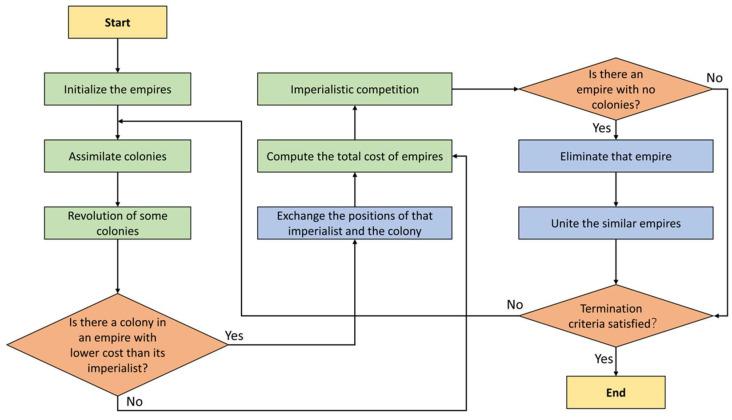

During design and construction of buildings, the employed materials can substantially impact the structures' performance. In composite columns, the properties and performance of concrete and steel have a significant influence on the behavior of structure under various loading conditions. In this study, two metaheuristic algorithms, particle swarm optimization (PSO) and competitive imperialism algorithm (ICA), were combined with the artificial neural network (ANN) model to predict the bearing capacity of the square concrete-filled steel tube (SCFST) columns. To achieve this objective and investigate the performance of optimization algorithms on the ANN, one of the most extensive datasets of pure SCFST columns (with 149 data samples) was used in the modeling process. In-depth and detailed predictive modeling of metaheuristic-based models was conducted through several parametric investigations, and the optimum factors were designed. Furthermore, the capability of these hybrid models was assessed using robust statistical matrices. The results indicated that PSO is stronger than ICA in finding optimum weights and biases of ANN in predicting the bearing capacity of the SCFST columns. Therefore, each column and its bearing capacity can be well-predicted using the developed metaheuristic-based ANN model.

摘要

在建筑物的设计和施工过程中,所使用的材料会对结构性能产生重大影响。在组合柱中,混凝土和钢材的性能对结构在各种荷载条件下的行为有显著影响。在本研究中,将两种元启发式算法,即粒子群优化算法(PSO)和竞争帝国主义算法(ICA)与人工神经网络(ANN)模型相结合,以预测方钢管混凝土(SCFST)柱的承载力。为实现这一目标并研究优化算法对人工神经网络的性能影响,在建模过程中使用了最广泛的纯SCFST柱数据集之一(有149个数据样本)。通过多次参数研究,对方钢管混凝土柱基于元启发式算法的模型进行了深入细致的预测建模,并设计了最优参数。此外,使用稳健的统计矩阵评估了这些混合模型的能力。结果表明,在预测方钢管混凝土柱的承载力时,粒子群优化算法在寻找人工神经网络的最优权重和偏差方面比竞争帝国主义算法更强。因此,使用所开发的基于元启发式算法的人工神经网络模型可以很好地预测每根柱子及其承载力。
