Department of Physical Medicine and Rehabilitation, National Taiwan University Hospital and College of Medicine, Taipei, Taiwan, ROC.
Department of Physical Medicine and Rehabilitation, National Taiwan University Hospital, Taipei, Taiwan, ROC.
J Neuroeng Rehabil. 2022 Jul 14;19(1):71. doi: 10.1186/s12984-022-01052-0.

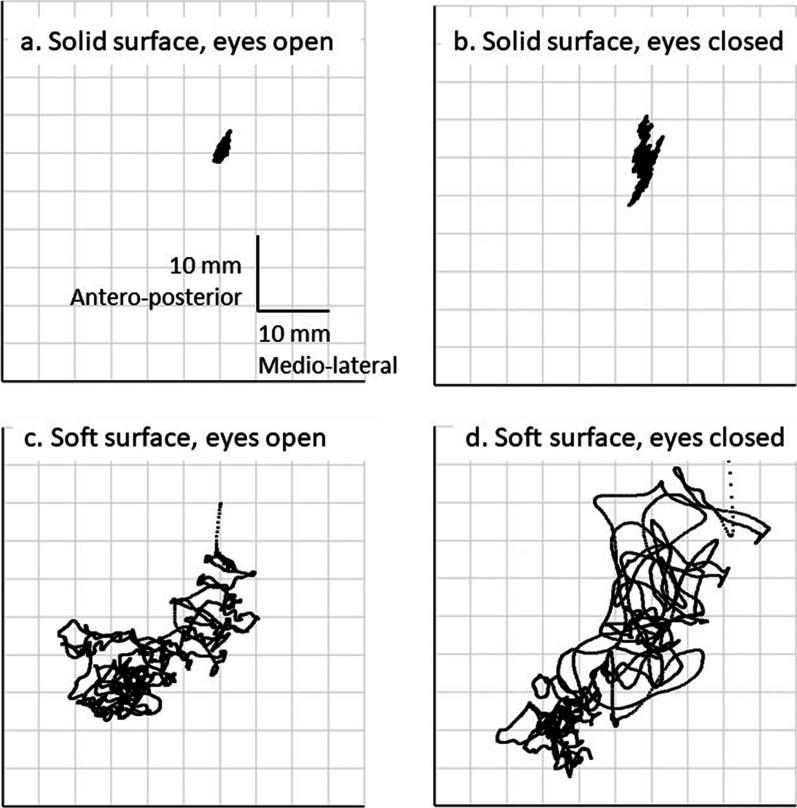

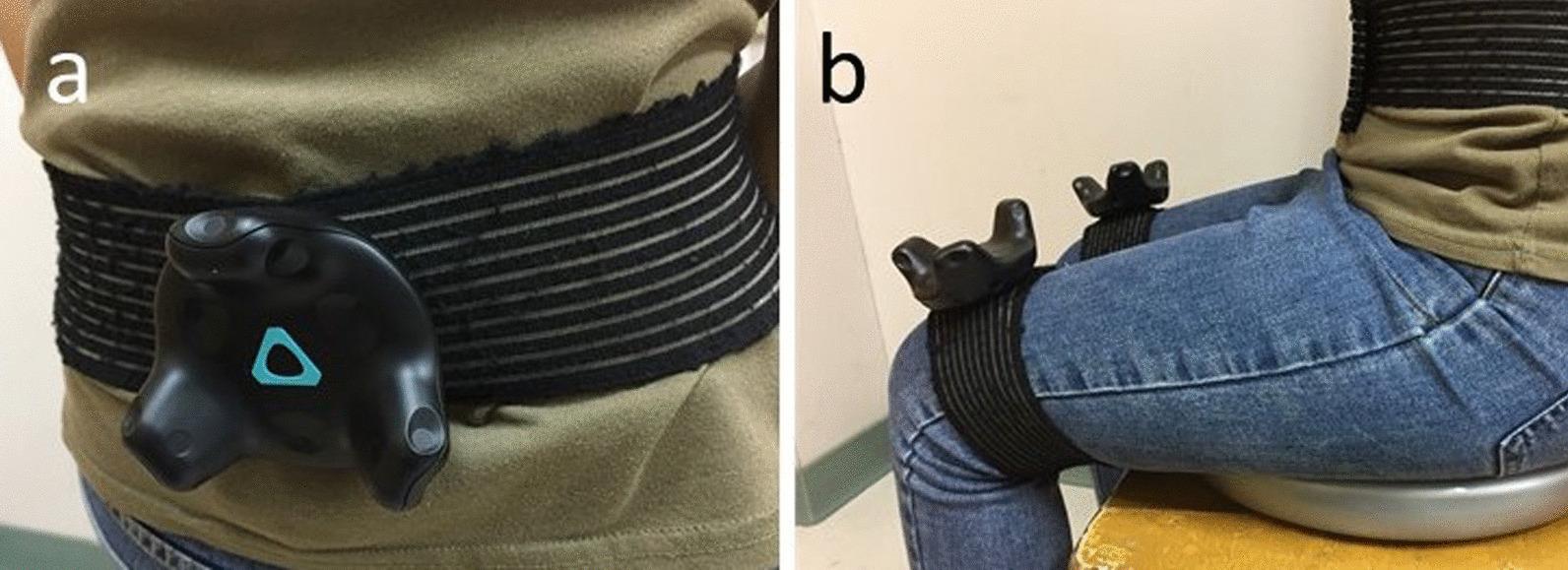

BACKGROUND: Postural stability while sitting is an important indicator of balance and an early predictor for future functional improvement in neurorehabilitation, but the evaluation is usually dependent on clinical balance function measures. Meanwhile, instrumental posturography has been used widely to obtain quantitative data and characterize balance abilities and underlying control mechanisms, but not as often for sitting balance. Moreover, traditional kinetic methods using a force platform to test sitting stability often require modification and are costly. We proposed a tracker-based posturography with a commercial virtual reality system, the VIVE Pro system (HTC, Inc. Taiwan), to record the trunk displacement (TD) path with a lumbar tracker for evaluation of sitting stability. The goals were to test the reliability and validity of the TD parameters among stroke patients. METHODS: Twenty-one stroke individuals and 21 healthy adults had their postural sway measured with this system under four sitting conditions, i.e., sitting on a solid surface or a soft surface, with eyes open or closed. The test-retest reliability of the TD parameters was evaluated with intraclass correlation coefficients in 22 participants. We also tested the discriminative validity of these parameters to discriminate between stroke and healthy controls, and among four sitting conditions. Furthermore, the TD parameters were correlated with the three balance function tests: the Berg Balance Scale (BBS), the Postural Assessment Scale for Stroke Patients (PASS) and the Function in Sitting Test (FIST). RESULTS: The results indicated that the TD parameters obtained by tracker-based posturography had mostly moderate to good reliability across the four conditions, with a few exceptions in the solid surface and eyes open tasks. The TD parameters could discriminate the postural stability between sitting on solid and soft surfaces. The stroke group had more seated postural sway than the control group, especially while sitting on a soft surface. In addition, velocity measures in the sagittal and frontal planes had moderate to high correlations with the PASS and BBS scores. CONCLUSIONS: This tracker-based system is a cost-effective option for the clinical assessment of body stability for stroke patients in a seated position and shows acceptable reliability and validity.
背景:坐姿下的姿势稳定性是平衡的一个重要指标,也是神经康复中未来功能改善的早期预测指标,但评估通常依赖于临床平衡功能测量。同时,仪器动态描记术已被广泛用于获取定量数据,并描述平衡能力和潜在的控制机制,但在坐姿平衡方面应用并不广泛。此外,传统的使用力台测试坐姿稳定性的运动学方法通常需要修改且成本高昂。我们提出了一种基于追踪器的动态描记术,使用商业虚拟现实系统 HTC Vive Pro 系统(台湾宏达国际电子股份有限公司),通过腰部追踪器记录躯干位移(TD)轨迹,以评估坐姿稳定性。目标是测试 TD 参数在脑卒中患者中的可靠性和有效性。
方法:21 名脑卒中患者和 21 名健康成年人在四种坐姿条件下,即坐在固体表面或软表面上,睁眼或闭眼,使用该系统测量其姿势摆动。22 名参与者的 TD 参数的测试-重测信度用组内相关系数评估。我们还测试了这些参数的区分效度,以区分脑卒中患者和健康对照组,以及四种坐姿条件。此外,TD 参数与三项平衡功能测试相关:伯格平衡量表(BBS)、脑卒中患者姿势评估量表(PASS)和坐姿功能测试(FIST)。
结果:结果表明,在四种条件下,除了在固体表面和睁眼任务中,基于追踪器的动态描记术获得的 TD 参数具有中等至良好的可靠性。TD 参数可以区分固体表面和软表面坐姿的稳定性。脑卒中组的坐姿姿势摆动比对照组大,尤其是坐在软表面上时。此外,矢状面和额状面的速度测量与 PASS 和 BBS 评分具有中等至高度的相关性。
结论:该基于追踪器的系统是一种经济有效的选择,可用于脑卒中患者的坐姿身体稳定性的临床评估,具有可接受的可靠性和有效性。
