基于多孔纳米材料的电致化学发光生物传感器的进展与展望。

Progress and Prospects of Electrochemiluminescence Biosensors Based on Porous Nanomaterials.

机构信息

Collaborative Innovation Center for Green Chemical Manufacturing and Accurate Detection, Key Laboratory of Interfacial Reaction & Sensing Analysis in Universities of Shandong, School of Chemistry and Chemical Engineering, University of Jinan, Jinan 250022, China.

Provincial Key Laboratory of Rural Energy Engineering in Yunnan, Yunnan Normal University, Kunming 650500, China.

出版信息

Biosensors (Basel). 2022 Jul 11;12(7):508. doi: 10.3390/bios12070508.


DOI:10.3390/bios12070508
PMID:35884311
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9313272/
Abstract

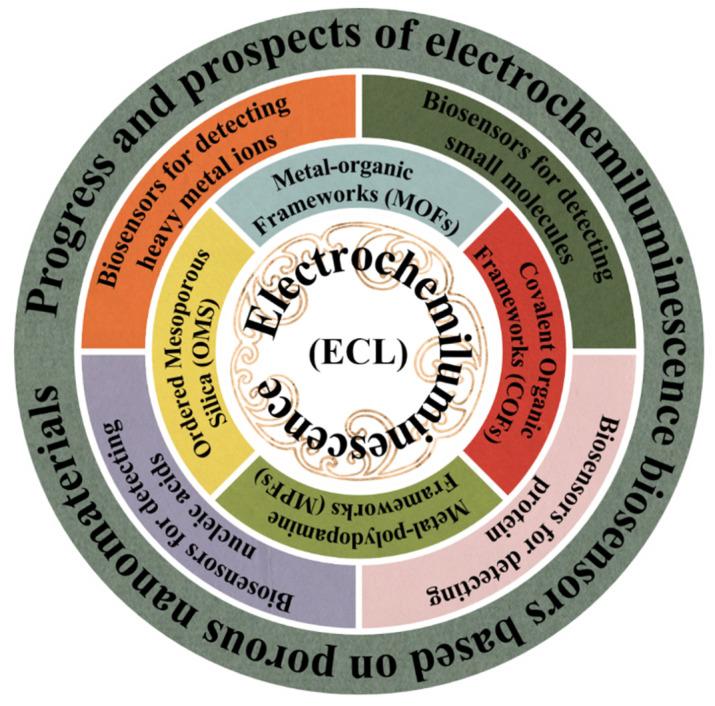

Porous nanomaterials have attracted much attention in the field of electrochemiluminescence (ECL) analysis research because of their large specific surface area, high porosity, possession of multiple functional groups, and ease of modification. Porous nanomaterials can not only serve as good carriers for loading ECL luminophores to prepare nanomaterials with excellent luminescence properties, but they also have a good electrical conductivity to facilitate charge transfer and substance exchange between electrode surfaces and solutions. In particular, some porous nanomaterials with special functional groups or centered on metals even possess excellent catalytic properties that can enhance the ECL response of the system. ECL composites prepared based on porous nanomaterials have a wide range of applications in the field of ECL biosensors due to their extraordinary ECL response. In this paper, we reviewed recent research advances in various porous nanomaterials commonly used to fabricate ECL biosensors, such as ordered mesoporous silica (OMS), metal-organic frameworks (MOFs), covalent organic frameworks (COFs) and metal-polydopamine frameworks (MPFs). Their applications in the detection of heavy metal ions, small molecules, proteins and nucleic acids are also summarized. The challenges and prospects of constructing ECL biosensors based on porous nanomaterials are further discussed. We hope that this review will provide the reader with a comprehensive understanding of the development of porous nanomaterial-based ECL systems in analytical biosensors and materials science.

摘要

多孔纳米材料由于具有较大的比表面积、高孔隙率、拥有多种官能团和易于修饰等特点,在电致化学发光(ECL)分析研究领域引起了广泛关注。多孔纳米材料不仅可以作为负载 ECL 发光体的良好载体,制备具有优异发光性能的纳米材料,而且还具有良好的导电性,有利于电极表面和溶液之间的电荷转移和物质交换。特别是一些具有特殊官能团或中心金属的多孔纳米材料甚至具有优异的催化性能,可以增强体系的 ECL 响应。基于多孔纳米材料制备的 ECL 复合材料由于其非凡的 ECL 响应,在 ECL 生物传感器领域有广泛的应用。本文综述了近年来各种常用的制备 ECL 生物传感器的多孔纳米材料的研究进展,如有序介孔硅(OMS)、金属有机框架(MOFs)、共价有机框架(COFs)和金属-聚多巴胺框架(MPFs)。还总结了它们在重金属离子、小分子、蛋白质和核酸检测方面的应用。进一步讨论了基于多孔纳米材料构建 ECL 生物传感器的挑战和前景。我们希望本综述能使读者全面了解分析生物传感器和材料科学中基于多孔纳米材料的 ECL 系统的发展。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/adee1d303943/biosensors-12-00508-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/c94a2131dd1a/biosensors-12-00508-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/250f68384c1f/biosensors-12-00508-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/650fbb936db6/biosensors-12-00508-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/2143f947e516/biosensors-12-00508-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/4286e5edb2d0/biosensors-12-00508-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/b71979a67762/biosensors-12-00508-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/adee1d303943/biosensors-12-00508-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/c94a2131dd1a/biosensors-12-00508-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/250f68384c1f/biosensors-12-00508-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/650fbb936db6/biosensors-12-00508-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/2143f947e516/biosensors-12-00508-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/4286e5edb2d0/biosensors-12-00508-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/b71979a67762/biosensors-12-00508-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1331/9313272/adee1d303943/biosensors-12-00508-g007.jpg
