Valdebenito Cristián, Pinto Jose, Nazarkovsky Michael, Chacón Gustavo, Martínez-Ferraté Oriol, Wrighton-Araneda Kerry, Cortés-Arriagada Diego, Camarada María Belén, Alves Fernandes Jesum, Abarca Gabriel
Centro de Nanotecnología Aplicada, Facultad de Ciencias, Universidad Mayor Camino la Pirámide 5750 Huechuraba Santiago Chile
School of Chemistry, University of Nottingham NG7 2RD Nottingham UK
Nanoscale Adv. 2020 Feb 12;2(3):1325-1332. doi: 10.1039/d0na00055h. eCollection 2020 Mar 17.

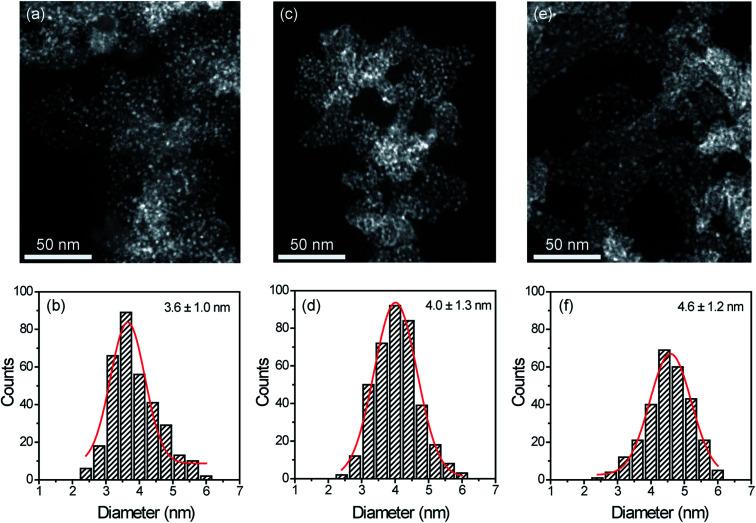

A series of new triazolium-based supported ionic liquids (SILPs), decorated with Cu NPs, were successfully prepared and applied to the N-arylation of aryl halides with anilines. The triazoles moieties were functionalised using copper-catalysed azide-alkyne cycloaddition. SILP surface characterisation showed a strong correlation between the triazolium cation volume and textural properties. STEM images showed well-dispersed Cu NPs on SILPs with a mean diameter varying from 3.6 to 4.6 nm depending on the triazolium cation used. Besides, XPS results suggest that the Cu(0)/Cu(i) ratio can be modulated by the electronic density of triazolium substituents. XPS and computational analysis gave mechanistic insights into the Cu NP stabilisation pathways, where the presence of electron-rich groups attached to a triazolium ring plays a critical role in leading to a cation adsorption pathway ( = 72 kcal mol). In contrast, less electron-rich groups favour the anion adsorption pathway ( = 63 kcal mol). The Cu@SILP composite with electron-rich groups showed the highest activity for the C-N Ullmann coupling reaction, which suggests that electron-rich groups might act as an electron-like reservoir to facilitate oxidative addition for N-arylation. This strategy firmly suggests the strong dependence of the nature of triazolium-based SILPs on the Cu NP surface active sites, which may provide a new environment to confine and stabilise MNPs for catalytic applications.
一系列负载有铜纳米颗粒(Cu NPs)的新型三唑鎓基负载离子液体(SILPs)被成功制备,并应用于芳基卤化物与苯胺的N-芳基化反应。三唑部分通过铜催化的叠氮化物-炔烃环加成反应进行功能化。SILP表面表征显示三唑鎓阳离子体积与结构性质之间存在很强的相关性。扫描透射电子显微镜(STEM)图像显示Cu NPs在SILPs上分散良好,平均直径根据所使用的三唑鎓阳离子不同,在3.6至4.6纳米之间变化。此外,X射线光电子能谱(XPS)结果表明,Cu(0)/Cu(i)比例可通过三唑鎓取代基的电子密度进行调节。XPS和计算分析为Cu NP稳定化途径提供了机理见解,其中连接在三唑鎓环上的富电子基团的存在在导致阳离子吸附途径(ΔG = 72 kcal mol)中起关键作用。相比之下,电子富集程度较低的基团有利于阴离子吸附途径(ΔG = 63 kcal mol)。具有富电子基团的Cu@SILP复合材料在C-N乌尔曼偶联反应中表现出最高活性,这表明富电子基团可能充当类似电子的储存库,以促进N-芳基化的氧化加成。该策略有力地表明了基于三唑鎓的SILPs的性质对Cu NP表面活性位点的强烈依赖性,这可能为限制和稳定MNPs用于催化应用提供一个新的环境。
