A Design Method of Styreneic Methyl Copolymers Normal Temperature Modified Asphalt Mixture Based on Performance Balance.

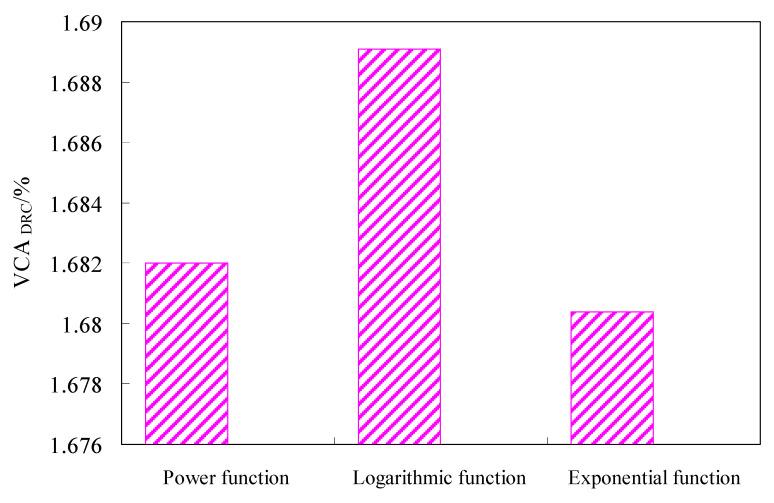

The objective of this research was to develop a solution for the deterioration effect on the high-temperature rutting performance and water stability of SMC. This research proposed a method for designing an SMC normal temperature modified asphalt mixture based on the existing findings, experimental research and the performance balance. First, the power function curve model of the aggregate gradation was put forward. The 0.075 mm, 4.75 mm and nominal maximum particle size were the key points of the aggregate gradation, and their passing rate was about 6%, 30%, and 95% respectively. Then, on the basis of the quadratic curve model, a method for determination of the optimum asphalt aggregate ratio of SMC normal temperature modified asphalt mixture was put forward, considering the skeleton-density structure. Last, rutting tests, small beam bending tests, freeze-thaw split tests, permeability coefficient tests, texture depth tests and pavement roughness tests were conducted, and the test results all met the performance requirements of the specifications for the construction of highway asphalt pavement in China perfectly, especially the high-temperature and water stability properties, which indicated that the design method for SMC normal temperature modified asphalt mixtures based on performance balance presented in this paper was reasonable and practical.
