Bijani Masoud, Khamehchi Ehsan, Shabani Mehdi
Department of Petroleum Engineering, Amirkabir University of Technology (Tehran Polytechnic), Tehran, Iran.
Sci Rep. 2022 Oct 1;12(1):16472. doi: 10.1038/s41598-022-20595-9.

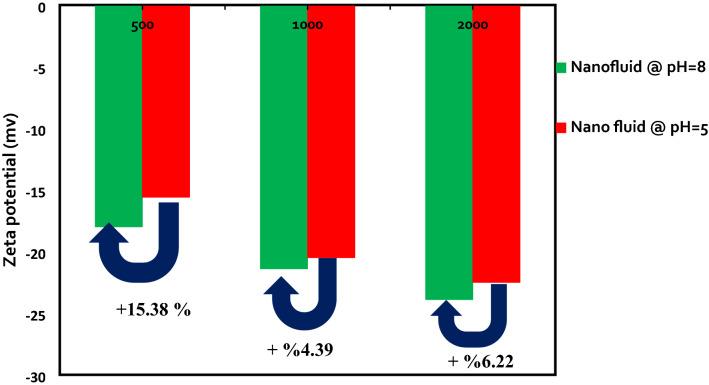

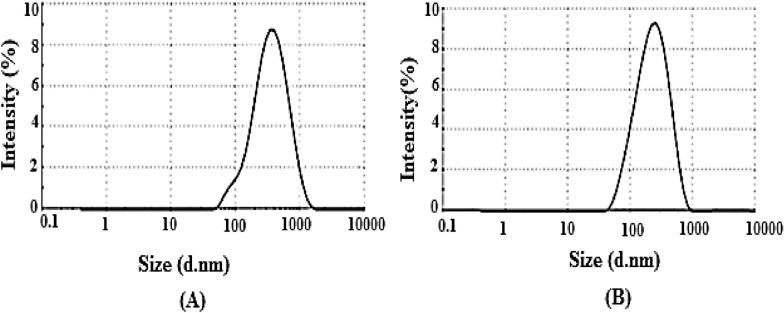

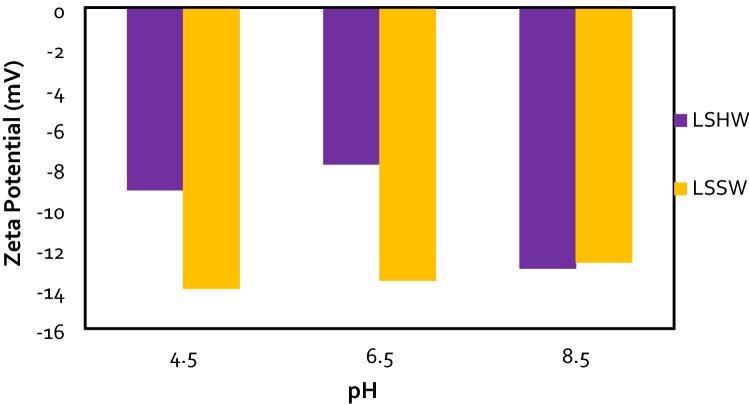

Recent studies showed the high potential of nanofluids as an enhanced oil recovery (EOR) agent in oil reservoirs. This study aimed to investigate the effects of salts and ions, the salinity of aqueous solution, total dissolved solids (TDS), scale deposition of mixing brines, surface charge as zeta potential (ZP) value, and pH of injected brines as low salinity water (LSW) on the stability of silica nanoparticles (NPs). The experiments were conducted on the stability of silica NPs at different concentrations and brines to determine optimum salinity, dilution, cations, and anions concentrations. The results showed that 10 times diluted seawater (SW#10D) was optimum low salinity water (OLSW) as injected LSW and water-based nanofluids. Results showed that by decreasing the salinity, increasing seawater dilution, and removing Mg and Ca cations, the amount of scale deposition decreased, and the brine's brine's brine stability of NPs in brine improved. At the optimum salinity and dilution conditions, compared with other salinities, there was less scale formation with more nanofluid stability. Obtained results from ZP measurements and dynamic light scattering (DLS) showed that by removing divalent ions (Mg and Ca) of water-based nanofluid (low salinity hard water (LSHW) composition), more NPs were attached to the surface due to the reduction in repulsive forces between the NPs. Therefore, at optimum low salinity soft water (OLSSW), more wettability alteration occurred compared with optimum low salinity hard water (OLSHW) due to the more stability of NPs in OLSSW. The obtained results from the contact angle measurements, surface adsorption of the NPs by FESEM images, and ZP measurements showed that the predominant mechanism in enhancing oil recovery by nanofluid was the wettability alteration by disjoining pressure. According to wettability alteration results, the silica NPs with an optimized concentration in the optimized LSHW and LSSW compositions could be improved the wettability alteration by up to 23.37% and 55.81% compared with the without NPs. The optimized LSSW compared with LSHW composition could be improved the wettability alteration by up to 11.69%. In addition, OLSSW-based nanofluid compared with OLSHW could be increased wettability alteration toward strongly water-wet by up to 33.44%.
最近的研究表明,纳米流体作为油藏强化采油(EOR)剂具有很高的潜力。本研究旨在调查盐和离子、水溶液的盐度、总溶解固体(TDS)、混合盐水的结垢沉积、作为zeta电位(ZP)值的表面电荷以及作为低盐水(LSW)的注入盐水的pH值对二氧化硅纳米颗粒(NPs)稳定性的影响。对不同浓度和盐水条件下二氧化硅NPs的稳定性进行了实验,以确定最佳盐度、稀释度、阳离子和阴离子浓度。结果表明,10倍稀释的海水(SW#10D)是作为注入低盐水(OLSW)和水基纳米流体的最佳低盐水。结果表明,通过降低盐度、增加海水稀释度以及去除镁和钙阳离子,结垢沉积量减少,并且纳米颗粒在盐水中的盐水稳定性得到改善。在最佳盐度和稀释条件下,与其他盐度相比,结垢形成较少,纳米流体稳定性更高。从ZP测量和动态光散射(DLS)获得的结果表明,通过去除水基纳米流体(低盐水硬水(LSHW)成分)中的二价离子(镁和钙),由于纳米颗粒之间排斥力的降低,更多的纳米颗粒附着在表面。因此,在最佳低盐水软水(OLSSW)中,与最佳低盐水硬水(OLSHW)相比,由于纳米颗粒在OLSSW中的稳定性更高,发生了更多的润湿性改变。从接触角测量、通过场发射扫描电子显微镜(FESEM)图像观察纳米颗粒的表面吸附以及ZP测量获得的结果表明,纳米流体提高采油率的主要机制是通过分离压力改变润湿性。根据润湿性改变结果,与不含纳米颗粒的情况相比,在优化的LSHW和LSSW成分中具有优化浓度的二氧化硅纳米颗粒可将润湿性改变提高多达23.37%和55.81%。与LSHW成分相比,优化的LSSW可将润湿性改变提高多达11.69%。此外,与OLSHW相比,基于OLSSW的纳米流体可使向强水湿方向的润湿性改变增加多达33.44%。
