基于绞合线驱动的触觉接口的设计、特性描述与验证

Design, characterisation and validation of a haptic interface based on twisted string actuation.

作者信息

Skvortsova Valeria, Nedelchev Simeon, Brown Joshua, Farkhatdinov Ildar, Gaponov Igor

机构信息

Center for Technologies in Robotics and Mechatronics Components, Innopolis University, Innopolis, Russia.

School of Electronic Engineering and Computer Science, Queen Mary University of London, London, United Kingdom.

出版信息

Front Robot AI. 2022 Sep 16;9:977367. doi: 10.3389/frobt.2022.977367. eCollection 2022.

Abstract

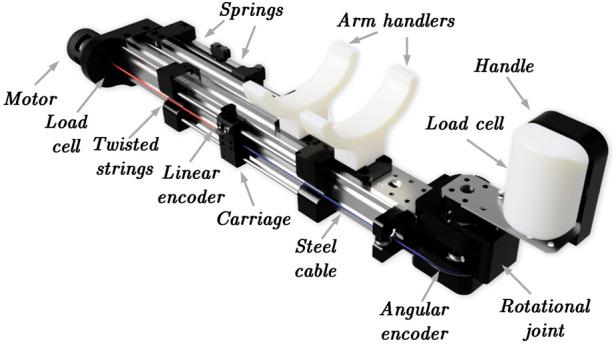

This paper presents the design and experimental characterisation of a wrist haptic interface based on a twisted string actuator. The interface is designed for controlled actuation of wrist flexion/extension and is capable of rendering torque feedback through a rotary handle driven by the twisted string actuator and spring-loaded cable mechanisms. The interface was characterised to obtain its static and dynamic haptic feedback rendering capabilities. Compliance in the spring and actuation mechanism makes the interface suitable for smooth rendering of haptic feedback of large magnitudes due to the high motion transmission ratio of the twisted strings. Haptic virtual wall rendering capabilities are demonstrated.

摘要

本文介绍了一种基于扭线式致动器的手腕触觉接口的设计与实验特性。该接口专为手腕屈伸的受控致动而设计,能够通过由扭线式致动器和弹簧加载电缆机构驱动的旋转手柄提供扭矩反馈。对该接口进行了特性表征,以获得其静态和动态触觉反馈呈现能力。弹簧和致动机构中的柔顺性使该接口适用于由于扭线的高运动传动比而实现大幅度触觉反馈的平滑呈现。展示了触觉虚拟墙呈现能力。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a068/9525208/1ca0b198fc2c/frobt-09-977367-g001.jpg
