Children's National Hospital, Washington, D.C., USA.
George Washington University School of Medicine, Washington, D.C., USA.
J Cardiovasc Magn Reson. 2022 Oct 3;24(1):51. doi: 10.1186/s12968-022-00875-z.
BACKGROUND: Cardiovascular magnetic resonance (CMR) is emerging as an important tool for cardiac allograft assessment. Native T1 mapping may add value in identifying rejection and in assessing graft dysfunction and myocardial fibrosis burden. We hypothesized that CMR native T1 values and features of textural analysis of T1 maps would identify acute rejection, and in a secondary analysis, correlate with markers of graft dysfunction, and with fibrosis percentage from endomyocardial biopsy (EMB). METHODS: Fifty cases with simultaneous EMB, right heart catheterization, and 1.5 T CMR with breath-held T1 mapping via modified Look-Locker inversion recovery (MOLLI) in 8 short-axis slices and subsequent quantification of mean and peak native T1 values, were performed on 24 pediatric subjects. A single mid-ventricular slice was used for image texture analysis using nine gray-level co-occurrence matrix features. Digital quantification of Masson trichrome stained EMB samples established degree of fibrosis. Markers of graft dysfunction, including serum brain natriuretic peptide levels and hemodynamic measurements from echocardiography, catheterization, and CMR were collated. Subjects were divided into three groups based on degree of rejection: acute rejection requiring new therapy, mild rejection requiring increased ongoing therapy, and no rejection with no change in treatment. Statistical analysis included student's t-test and linear regression. RESULTS: Peak and mean T1 values were significantly associated with acute rejection, with a monotonic trend observed with increased grade of rejection. Texture analysis demonstrated greater spatial heterogeneity in T1 values, as demonstrated by energy, entropy, and variance, in cases requiring treatment. Interestingly, 2 subjects who required increased therapy despite low grade EMB results had abnormal peak T1 values. Peak T1 values also correlated with increased BNP, right-sided filling pressures, and capillary wedge pressures. There was no difference in histopathological fibrosis percentage among the 3 groups; histopathological fibrosis did not correlate with T1 values or markers of graft dysfunction. CONCLUSION: In pediatric heart transplant patients, native T1 values identify acute rejection requiring treatment and may identify graft dysfunction. CMR shows promise as an important tool for evaluation of cardiac grafts in children, with T1 imaging outperforming biopsy findings in the assessment of rejection.
背景:心血管磁共振(CMR)正成为评估心脏移植物的重要工具。原生 T1 映射可能有助于识别排斥反应,并评估移植物功能障碍和心肌纤维化负担。我们假设 CMR 原生 T1 值和 T1 图纹理分析特征将识别急性排斥反应,并且在二次分析中,与移植物功能障碍的标志物相关,与心内膜心肌活检(EMB)的纤维化百分比相关。

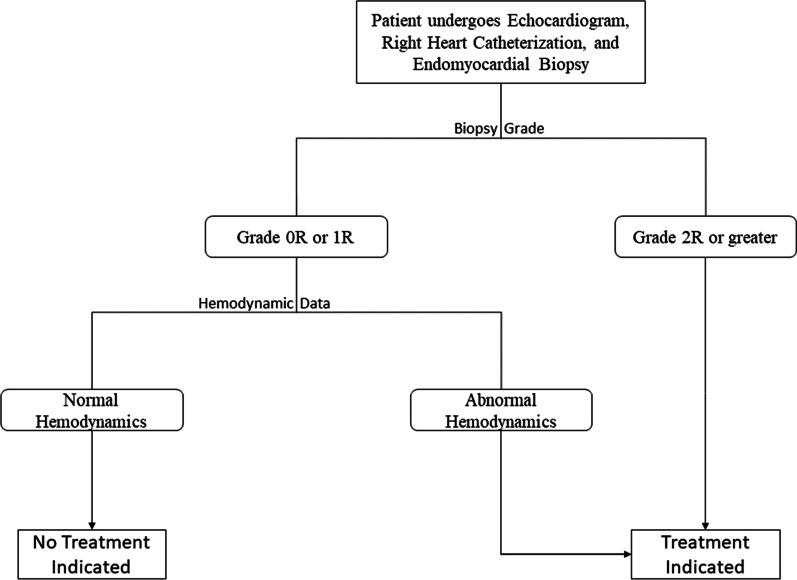

方法:对 24 名儿科患者进行了 50 例同时进行 EMB、右心导管检查和 1.5T CMR 检查,采用改良 Look-Locker 反转恢复(MOLLI)在 8 个短轴切片中进行呼气保持 T1 映射,并随后定量测量平均和峰值原生 T1 值。对 24 名儿科患者进行了 50 例同时进行 EMB、右心导管检查和 1.5T CMR 检查,采用改良 Look-Locker 反转恢复(MOLLI)在 8 个短轴切片中进行呼气保持 T1 映射,并随后定量测量平均和峰值原生 T1 值。对 24 名儿科患者进行了 50 例同时进行 EMB、右心导管检查和 1.5T CMR 检查,采用改良 Look-Locker 反转恢复(MOLLI)在 8 个短轴切片中进行呼气保持 T1 映射,并随后定量测量平均和峰值原生 T1 值。使用 9 个灰度共生矩阵特征对单个中隔切片进行图像纹理分析。对 Masson 三色染色 EMB 样本进行数字量化以确定纤维化程度。整理了移植物功能障碍的标志物,包括血清脑钠肽水平以及来自超声心动图、导管插入术和 CMR 的血流动力学测量值。根据排斥反应的程度将受试者分为三组:需要新治疗的急性排斥反应、需要增加持续治疗的轻度排斥反应和无治疗变化的无排斥反应。统计分析包括学生 t 检验和线性回归。

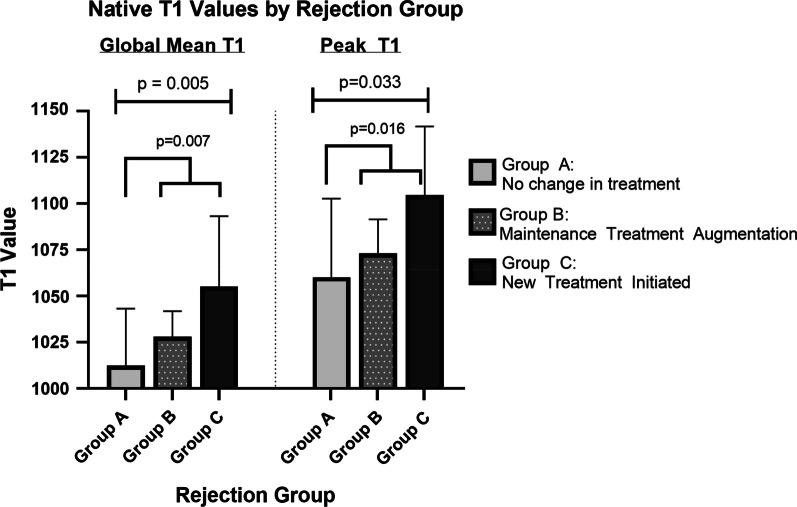

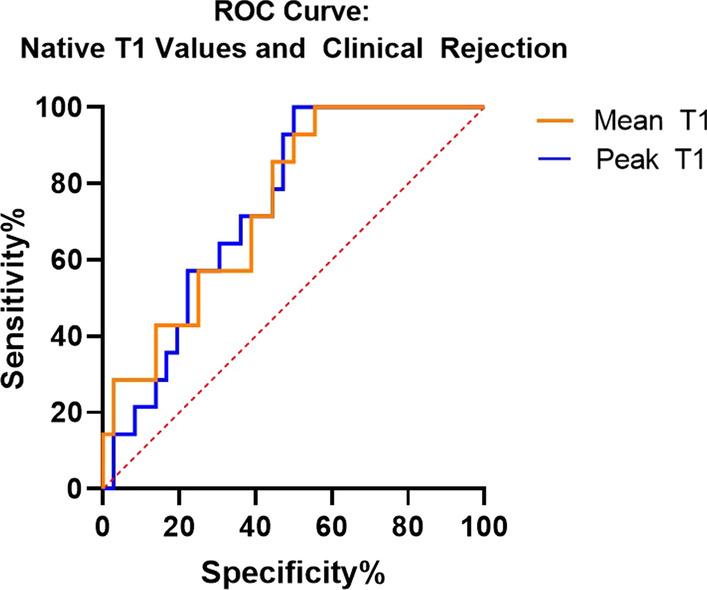

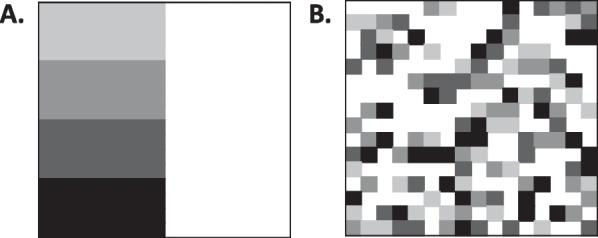

结果:峰值和平均 T1 值与急性排斥反应显著相关,随着排斥反应程度的增加呈单调趋势。纹理分析显示,在需要治疗的病例中,T1 值的空间异质性更大,表现在能量、熵和方差方面。有趣的是,2 名尽管 EMB 结果较低但需要增加治疗的患者的峰值 T1 值异常。峰值 T1 值也与 BNP 增加、右侧充盈压和毛细血管楔压相关。三组之间的组织病理学纤维化百分比无差异;组织病理学纤维化与 T1 值或移植物功能障碍标志物不相关。
结论:在儿科心脏移植患者中,原生 T1 值可识别需要治疗的急性排斥反应,并可能识别移植物功能障碍。CMR 有望成为评估儿童心脏移植物的重要工具,T1 成像在评估排斥反应方面优于活检。
