Nonrelevant quantum levels effecting on the current in 2-well terahertz quantum cascade lasers.

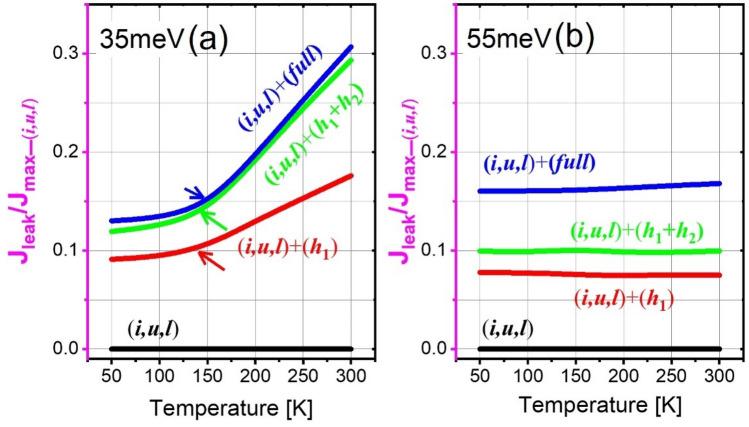

Recent renewed operating temperatures in terahertz quantum cascade lasers emphasize on narrowing the periodic length in a 2-well resonant-phonon design for a clean quantum level structure, in which the depopulation energy is significantly higher than one longitudinal phonon. In this study, various depopulation energies (small and large) are engineered in a 2-well design; the effect of the high-lying nonrelevant levels on the currents are systematically studied by using the non-equilibrium Green's function method. The engineering of the depopulation energy is unable to avoid the formation of leakage channels, which are activated within at least three neighboring periods via sequential close tunneling. However, a large depopulation energy relaxes the thermal backfilling process; as a result, the net leakages at high temperatures can be significantly suppressed. In addition, pre-alignment remains a critical issue in the design when using a large depopulation energy, which requires improved engineering for the barriers to obtain better laser dynamics.
