School of Food Science and Engineering, South China University of Technology, Guangzhou 510640, China.
Overseas Expertise Introduction Center for Discipline Innovation of Food Nutrition and Human Health (111 Center), Guangzhou 510640, China.
Biosensors (Basel). 2022 Oct 20;12(10):897. doi: 10.3390/bios12100897.

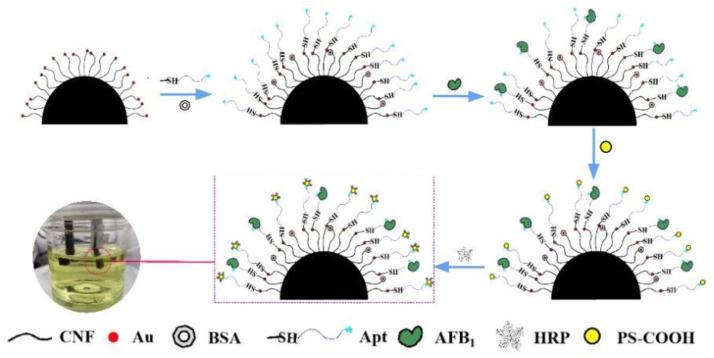

High-performance electrochemical biosensors for the rapid detection of aflatoxin B1 (AFB) are urgently required in the food industry. Herein, a multi-scaled electrochemical biosensor was fabricated by assembling carboxylated polystyrene nanospheres, an aptamer and horseradish peroxidase into a free-standing carbon nanofiber/carbon felt support. The resulting electrochemical biosensor possessed an exceptional performance, owing to the unique structures as well as the synergistic effects of the components. The 3D porous carbon nanofiber/carbon felt support served as an ideal substrate, owing to the excellent conductivity and facile diffusion of the reactants. The integration of carboxylated polystyrene nanospheres with horseradish peroxidase was employed as a signal amplification probe to enhance the electrochemical responses via catalyzing the decomposition of hydrogen peroxide. With the aid of the aptamer, the prepared sensors could quantitatively detect AFB in wine and soy sauce samples via differential pulse voltammetry. The recovery rates of AFB in the samples were between 87.53% and 106.71%. The limit of detection of the biosensors was 0.016 pg mL. The electrochemical biosensors also had excellent sensitivity, reproducibility, specificity and stability. The synthetic strategy reported in this work could pave a new route to fabricate high-performance electrochemical biosensors for the detection of mycotoxins.
用于快速检测黄曲霉毒素 B1(AFB)的高性能电化学生物传感器在食品工业中是急需的。在此,通过将羧化聚苯乙烯纳米球、适体和辣根过氧化物酶组装到独立的碳纤维/碳毡支架上,制备了一种多尺度电化学生物传感器。由于独特的结构以及各组成部分的协同作用,所得到的电化学生物传感器具有出色的性能。3D 多孔碳纤维/碳毡支架用作理想的基底,因为反应物具有优异的导电性和易于扩散性。将羧化聚苯乙烯纳米球与辣根过氧化物酶集成在一起作为信号放大探针,通过催化过氧化氢的分解来增强电化学生物传感器的电化学响应。借助适体,通过差分脉冲伏安法,所制备的传感器可以定量检测葡萄酒和酱油样品中的 AFB。样品中 AFB 的回收率在 87.53%至 106.71%之间。该生物传感器的检测限为 0.016 pg mL。电化学生物传感器还具有出色的灵敏度、重现性、特异性和稳定性。本工作中报道的合成策略为用于检测真菌毒素的高性能电化学生物传感器的制备开辟了新途径。
