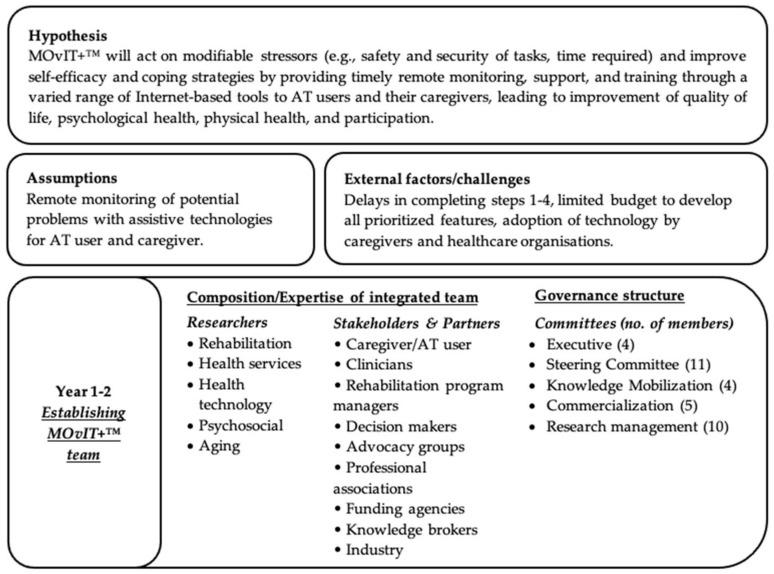

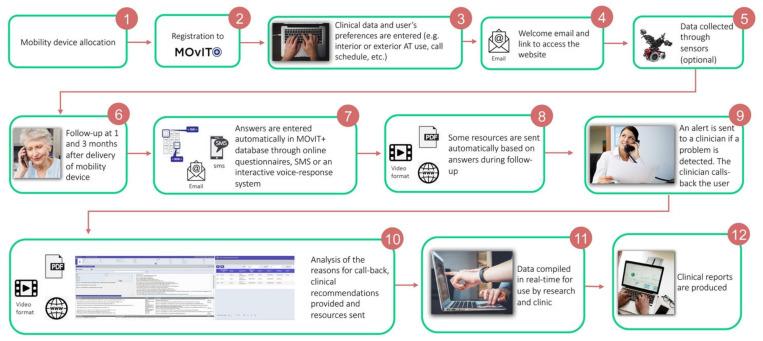

Training and follow-up for older adults who received new assistive technology can improve device use adoption and function, but there is a lack of systematic and coordinated services. To address this gap, the Internet-based MOvIT+™ was designed to provide remote monitoring and support for assistive technology users and their caregivers. This paper presents the intervention mapping approach that was used. In step 1, we established a project governance structure and a logic model emerged from interviews with stakeholders and a systematic review of literature. In step 2, a modified TRIAGE consensus process led to the prioritization of thirty-six intervention components. In step 3, we created use cases for all intervention end users. In step 4, the intervention interface was created through iterative lab testing, and we gathered training resources. In step 5, a two-stage implementation plan was devised with the recruited rehabilitation sites. In step 6, we proposed an evaluation protocol. This detailed account of the development of MOvIT+™ demonstrates how the combined use of an intervention mapping approach and participatory processes with end users can help linking evidence-based, user-centered, and pragmatic reasoning. It makes visible the complexities behind the development of Internet-based interventions, while guiding future program developers.
