limb大气紫外高光谱探测器偏振响应校准误差分析与校正

Analysis and Correction of Polarization Response Calibration Error of Limb Atmosphere Ultraviolet Hyperspectral Detector.

作者信息

Li Haochen, Li Zhanfeng, Huang Yu, Lin Guanyu, Zeng Jiexiong, Li Hanshuang, Wang Shurong, Han Wenyao

机构信息

Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China.

University of Chinese Academy of Sciences, Beijing 100049, China.

出版信息

Sensors (Basel). 2022 Nov 6;22(21):8542. doi: 10.3390/s22218542.

DOI:10.3390/s22218542
PMID:36366241
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9654598/
Abstract

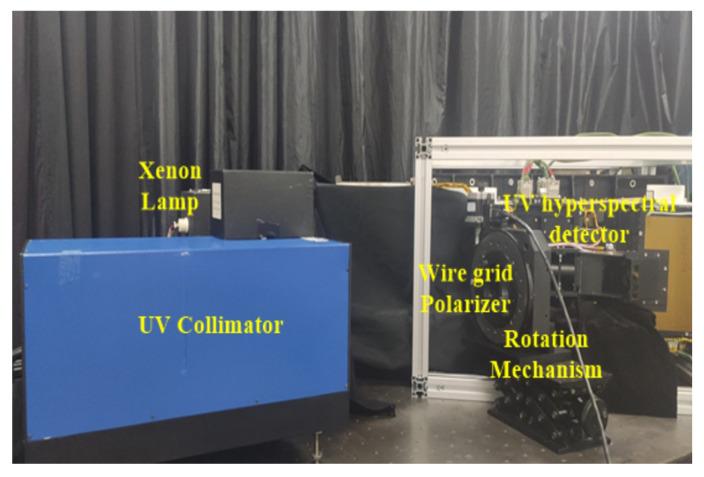

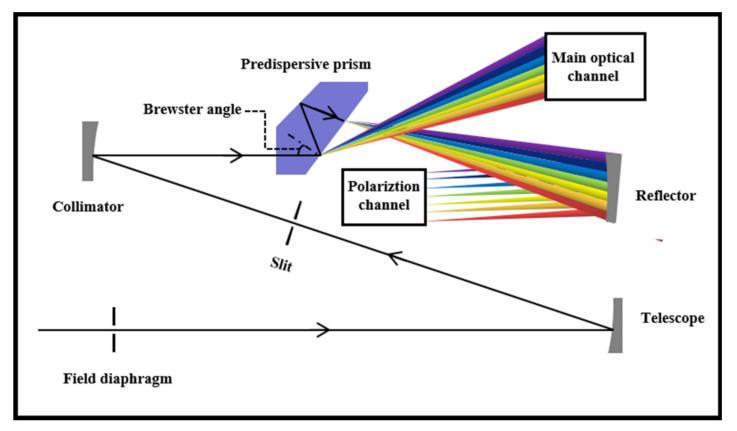

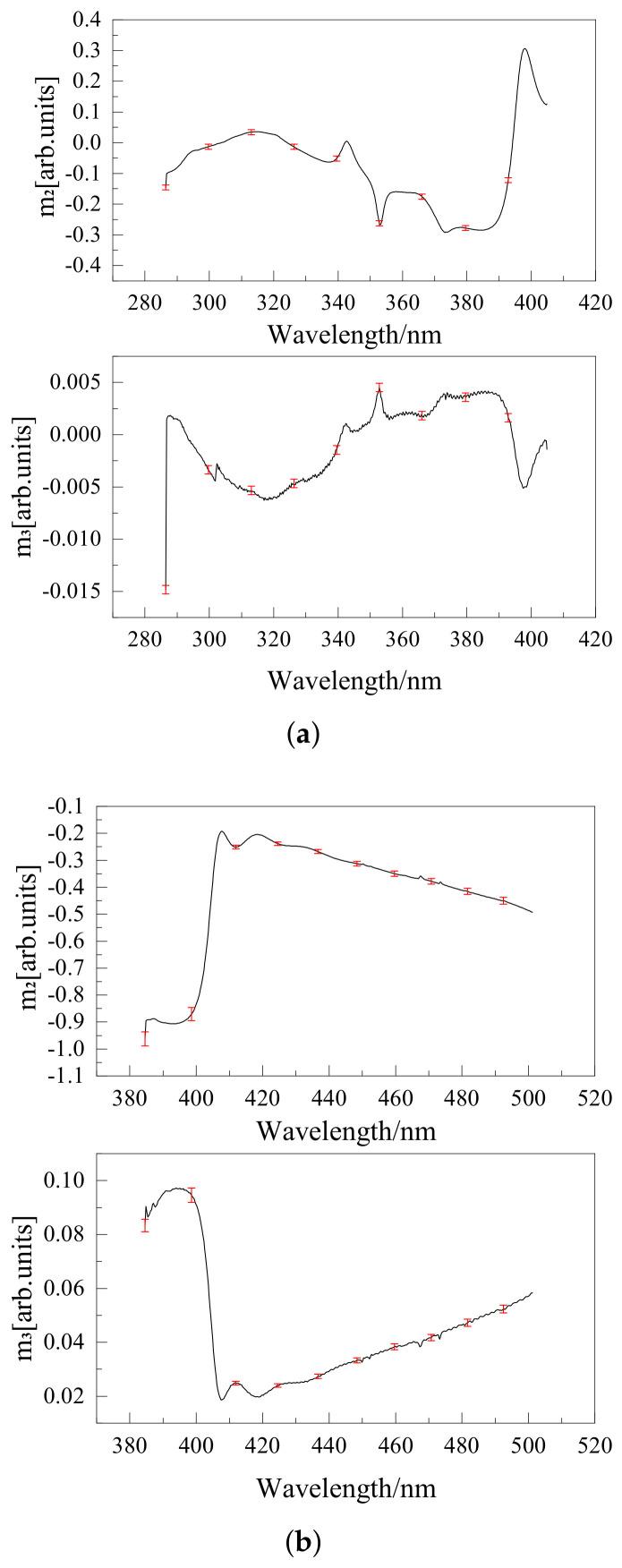

A UV hyperspectral instrument was designed with a polarization measurement channel for real-time in-orbit polarization correction to reduce the influence of polarization on the detection accuracy of atmospheric radiation. One of the prerequisites for in-orbit polarization calibration is accurately calibrating the instrument's polarization properties in the laboratory. This study first introduces the calibration method and measuring device of the polarization characteristics of the ultraviolet (UV) hyperspectral detector and conducts a polarization calibration test of the instrument. The two main error sources introduced by the calibration device were emphatically analyzed, and the correction method of the error sources was deduced theoretically. Finally, the polarization calibration results of the UV hyperspectral detector were corrected, and the uncertainty analysis of the corrected calibration results was about 1.4%, which provides effective ground polarization calibration data for the on-orbit polarization correction of the instrument.

摘要

设计了一种带有偏振测量通道的紫外高光谱仪器，用于在轨实时偏振校正，以减少偏振对大气辐射探测精度的影响。在轨偏振校准的前提条件之一是在实验室中准确校准仪器的偏振特性。本研究首先介绍了紫外高光谱探测器偏振特性的校准方法和测量装置，并对该仪器进行了偏振校准测试。着重分析了校准装置引入的两个主要误差源，并从理论上推导了误差源的校正方法。最后对紫外高光谱探测器的偏振校准结果进行了校正，校正后校准结果的不确定度分析约为1.4%，为仪器的在轨偏振校正提供了有效的地面偏振校准数据。
