常压等离子体处理的聚氨酯泡沫作为从水中去除油类和有机溶剂的可重复使用吸附剂。
Atmospheric Pressure Plasma-Treated Polyurethane Foam as Reusable Absorbent for Removal of Oils and Organic Solvents from Water.
作者信息
Uricchio Antonella, Lasalandra Teresa, Tamborra Eliana R G, Caputo Gianvito, Mota Rogério P, Fanelli Fiorenza
机构信息
Department of Chemistry, University of Bari "Aldo Moro", Via Orabona 4, 70125 Bari, Italy.
Nanochemistry Department, Istituto Italiano di Tecnologia, Via Morego 30, 16163 Genoa, Italy.
出版信息
Materials (Basel). 2022 Nov 10;15(22):7948. doi: 10.3390/ma15227948.

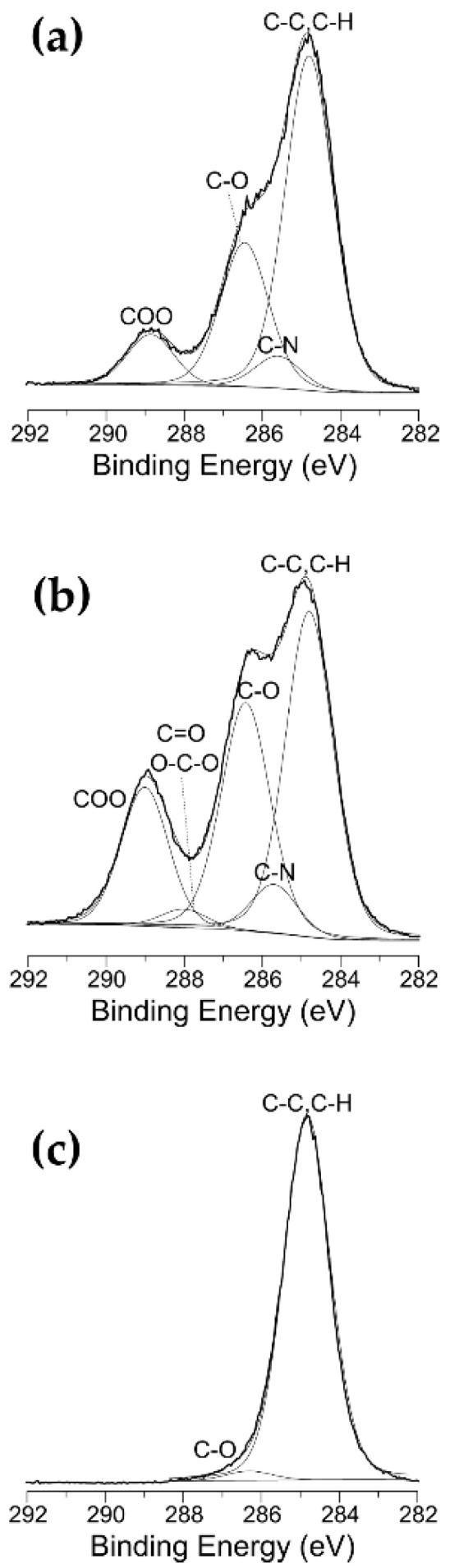

This paper reports the optimization of a two-step atmospheric pressure plasma process to modify the surface properties of a polyurethane (PU) foam and, specifically, to prepare a superhydrophobic/superoleophilic absorbent for the removal of oils and nonpolar organic solvents from water. In particular, in the first step, an oxygen-containing dielectric barrier discharge (DBD) is used to induce the etching/nanotexturing of the foam surfaces; in the second step, an ethylene-containing DBD enables uniform overcoating with a low-surface-energy hydrocarbon polymer film. The combination of surface nanostructuring and low surface energy ultimately leads to simultaneous superhydrophobic and superoleophilic wetting properties. X-ray photoelectron spectroscopy, scanning electron microscopy and water contact angle measurements are used for the characterization of the samples. The plasma-treated PU foam selectively absorbs various kinds of hydrocarbon-based liquids (i.e., hydrocarbon solvents, mineral oils, motor oil, diesel and gasoline) up to 23 times its own weight, while it completely repels water. These absorption performances are maintained even after 50 absorption/desorption cycles and after immersion in hot water as well as acidic, basic and salt aqueous solutions. The plasma-treated foam can remove mineral oil while floating on the surface of mineral oil/water mixtures with a separation efficiency greater than 99%, which remains unaltered after 20 separation cycles.
本文报道了一种两步大气压等离子体工艺的优化,该工艺用于改变聚氨酯(PU)泡沫的表面性质,特别是制备一种超疏水/超亲油吸收剂,用于从水中去除油类和非极性有机溶剂。具体而言,在第一步中,使用含氧介质阻挡放电(DBD)来诱导泡沫表面的蚀刻/纳米纹理化;在第二步中,含乙烯的DBD能够用低表面能的烃类聚合物膜进行均匀包覆。表面纳米结构和低表面能的结合最终导致同时具有超疏水和超亲油的润湿性能。采用X射线光电子能谱、扫描电子显微镜和水接触角测量对样品进行表征。经等离子体处理的PU泡沫能选择性吸收各种烃基液体(即烃类溶剂、矿物油、机油、柴油和汽油),吸收量可达其自身重量的23倍,同时能完全排斥水。即使经过50次吸收/解吸循环以及浸泡在热水、酸性、碱性和盐溶液中后,这些吸收性能仍能保持。经等离子体处理的泡沫在漂浮于矿物油/水混合物表面时可去除矿物油,分离效率大于99%,经过20次分离循环后该效率仍保持不变。
