Yan Yong, Li Jie, Li Shasha, Wang Mengna, Luo Gaoli, Song Xiaohui, Zhang Suicai, Jiang Yurong, Qin Ruiping, Xia Congxin
School of Physics, Henan Normal University Xinxiang Henan province China
Nanoscale Adv. 2022 Oct 3;4(24):5297-5303. doi: 10.1039/d2na00565d. eCollection 2022 Dec 6.

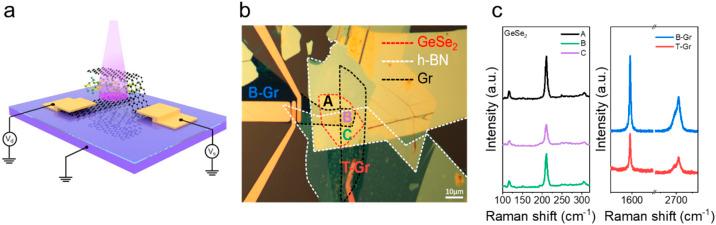

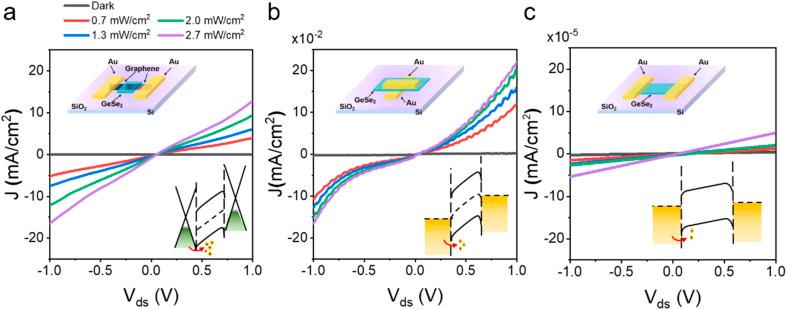

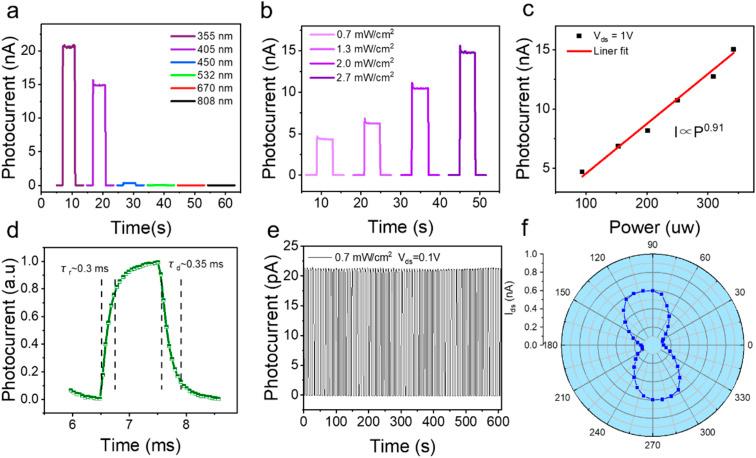

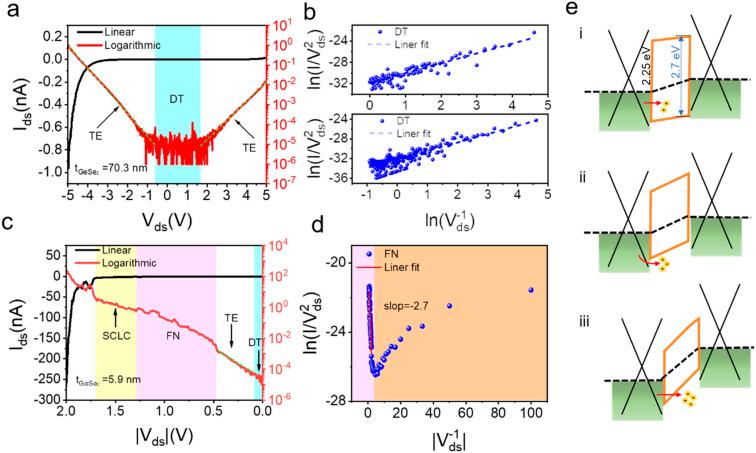

Germanium selenide (GeSe), as a typical member of 2D wide bandgap semiconductors (WBSs), shows great potential in ultraviolet (UV) optoelectronics due to its excellent flexibility, superior environmental stability, competitive UV absorption coefficient, and significant spectral selectivity. However, the GeSe-based UV photodetector suffers from high operation voltages and low photocurrent, which prevents its practical imaging applications. In this work, we report an elevated photocurrent generation in a vertical stacking graphene/GeSe/graphene heterostructure with low operation voltage and low power consumption. Efficient collection of photoexcited carriers in GeSe through graphene electrodes results in outstanding UV detection properties, including a pronounced responsivity of 37.1 A W, a specific detectivity of 8.83 × 10 Jones, and an ultrahigh on/off ratio (∼10) at 355 nm. In addition, building a Schottky barrier between GeSe and graphene and reducing the channel length can increase the photoresponse speed to ∼300 μs. These accomplishments set the stage for future optoelectronic applications of vertical 2D WBS heterostructure UV photodetectors.
硒化锗(GeSe)作为二维宽带隙半导体(WBS)的典型成员,因其优异的柔韧性、卓越的环境稳定性、具有竞争力的紫外吸收系数和显著的光谱选择性,在紫外(UV)光电子学领域展现出巨大潜力。然而,基于GeSe的紫外光电探测器存在工作电压高和光电流低的问题,这阻碍了其实际成像应用。在这项工作中,我们报道了一种垂直堆叠的石墨烯/GeSe/石墨烯异质结构,其在低工作电压和低功耗下能产生增强的光电流。通过石墨烯电极有效收集GeSe中光激发的载流子,导致了出色的紫外探测性能,包括在355nm处具有37.1 A/W的显著响应度、8.83×10 Jones的比探测率以及超高的开/关比(10)。此外,在GeSe和石墨烯之间构建肖特基势垒并减小沟道长度,可以将光响应速度提高到300 μs。这些成果为垂直二维WBS异质结构紫外光电探测器的未来光电子应用奠定了基础。
