Peristaltic micropump using polyvinyl chloride gels with micropatterned surface.

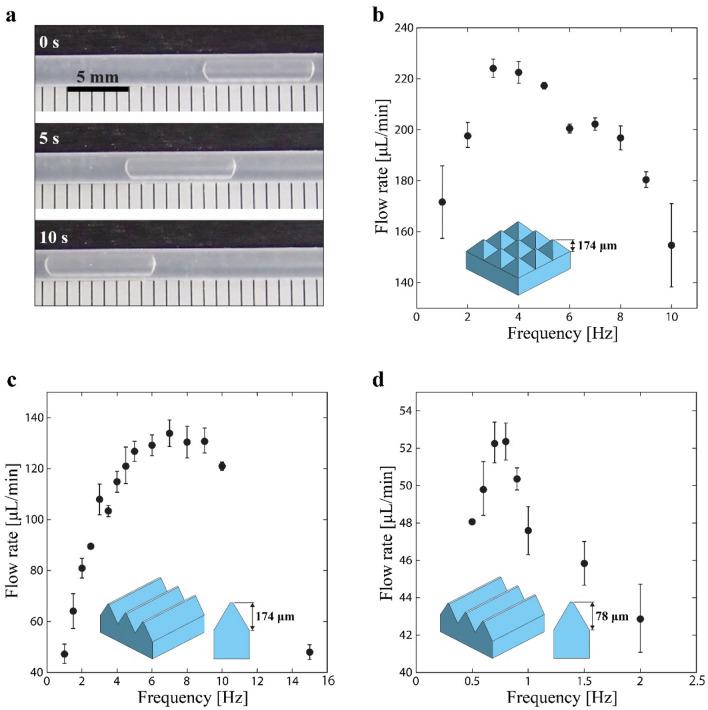

This paper presents a pump using polyvinyl chloride (PVC) gel. PVC gels are compliant, have a simple structure, and exhibit large deformation at voltages in the range of 100-1000 V, which make them suitable for micropumps. In this study, a PVC gel sheet with a surface pattern that enhances active deformation in the thickness direction was employed for the fabrication of a pump. To this end, the PVC gel sheet was sandwiched between three sets of anode and cathode electrodes, after which voltages were sequentially applied to these electrodes to generate a peristaltic deformation of the gel sheet, thus pushing the liquid and creating a one-directional flow. Various pumps were fabricated using PVC gel sheets with different surface patterns, and the pumps were characterized. The pumps exhibited an outline dimension of 35 mm × 25 mm with a thickness of 4 mm, corresponding to a total volume of 3.5 × 10 mm. The results revealed that the pump fabricated using a 174-μm-high pyramid-patterned gel sheet generated a flow rate of 224.1 µL/min at an applied voltage of 800 V and a driving frequency of 3 Hz. This observed value is comparable to or better than those of existing pumps based on smart materials.
