Acoustic Micro-Tapping Optical Coherence Elastography to Quantify Corneal Collagen Cross-Linking: An Ex Vivo Human Study.

PURPOSE

To evaluate changes in the anisotropic elastic properties of ex vivo human cornea treated with ultraviolet cross-linking (CXL) using noncontact acoustic micro-tapping optical coherence elastography (AμT-OCE).

DESIGN

Acoustic micro-tapping OCE was performed on normal and CXL human donor cornea in an ex vivo laboratory study.

SUBJECTS

Normal human donor cornea (n = 22) divided into 4 subgroups. All samples were stored in optisol.

METHODS

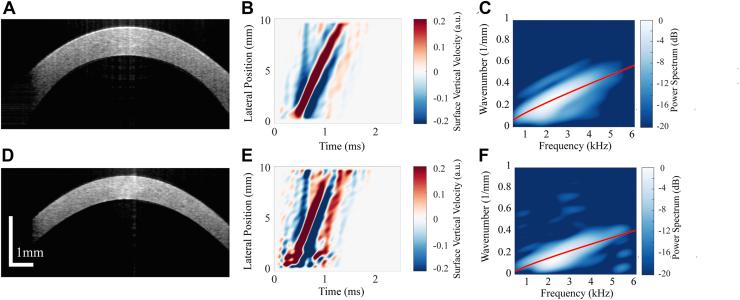

Elastic properties (in-plane Young's, , and out-of-plane, , shear modulus) of normal and ultraviolet CXL-treated human corneas were quantified using noncontact AμT-OCE. A nearly incompressible transverse isotropic model was used to reconstruct moduli from AμT-OCE data. Independently, cornea elastic moduli were also measured with destructive mechanical tests (tensile extensometry and shear rheometry).

MAIN OUTCOME MEASURES

Corneal elastic moduli (in-plane Young's modulus, , in-plane, μ, and out-of-plane, , shear moduli) can be evaluated in both normal and CXL treated tissues, as well as monitored during the CXL procedure using noncontact AμT-OCE.

RESULTS

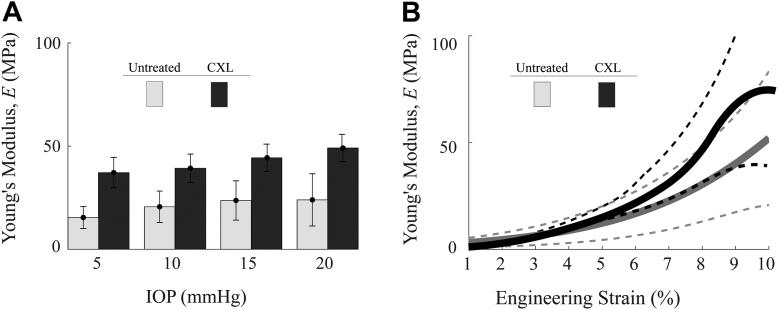

Cross-linking induced a significant increase in both in-plane and out-of-plane elastic moduli in human cornea. The statistical mean in the paired study (presurgery and postsurgery, n = 7) of the in-plane Young's modulus, , increased from 19 MPa to 43 MPa, while the out-of-plane shear modulus, increased from 188 kPa to 673 kPa. Mechanical tests in a separate subgroup support CXL-induced cornea moduli changes and generally agree with noncontact AμT-OCE measurements.

CONCLUSIONS

The human cornea is a highly anisotropic material where in-plane mechanical properties are very different from those out-of-plane. Noncontact AμT-OCE can measure changes in the anisotropic elastic properties in human cornea as a result of ultraviolet CXL.
