Institute of Immunology and Physiology , Ural Branch of Russian Academy of Sciences , Yekaterinburg, Russia.
Laboratory "Physiologie et Médecine Expérimentale du Coeur et des Muscles", Phymedexp, INSERM, CNRS, Montpellier University , Montpellier, France.
J Gen Physiol. 2023 Apr 3;155(4). doi: 10.1085/jgp.202213289. Epub 2023 Jan 25.

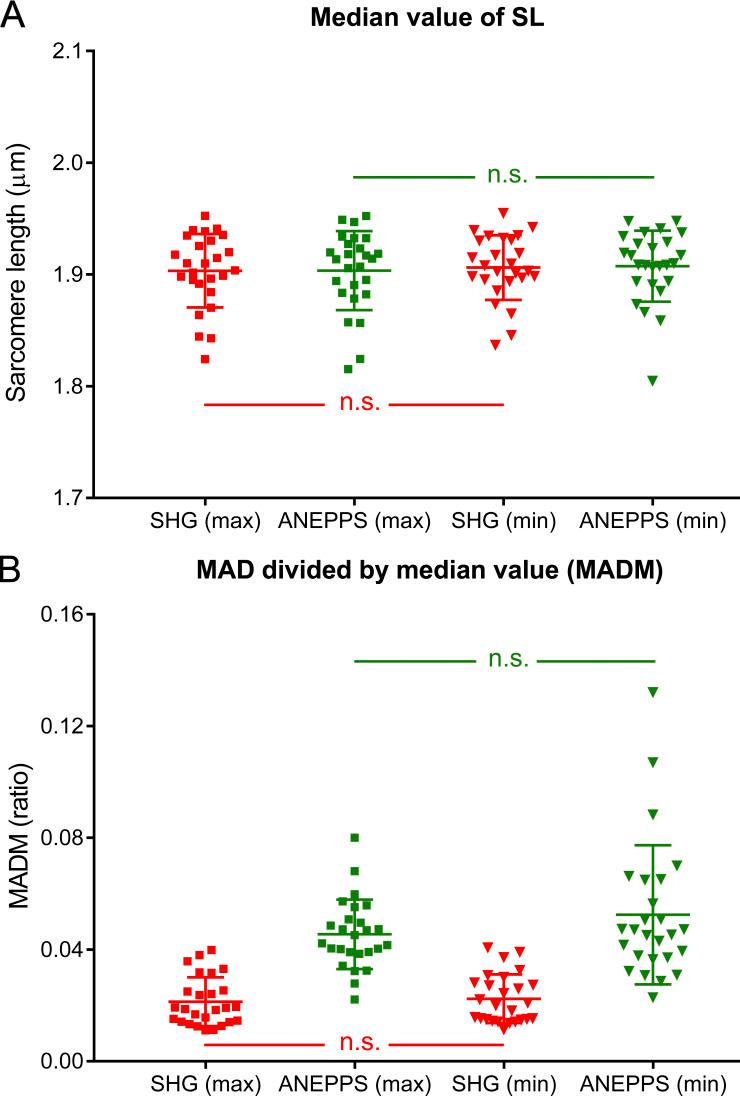

Sarcomere length (SL) and its variation along the myofibril strongly regulate integrated coordinated myocyte contraction. It is therefore important to obtain individual SL properties. Optical imaging by confocal fluorescence (for example, using ANEPPS) or transmitted light microscopy is often used for this purpose. However, this allows for the visualization of structures related to Z-disks only. In contrast, second-harmonic generation (SHG) microscopy visualizes A-band sarcomeric structures directly. Here, we compared averaged SL and its variability in isolated relaxed rat cardiomyocytes by imaging with ANEPPS and SHG. We found that SL variability, evaluated by several absolute and relative measures, is two times smaller using SHG vs. ANEPPS, while both optical methods give the same average (median) SL. We conclude that optical methods with similar optical spatial resolution provide valid estimations of average SL, but the use of SHG microscopy for visualization of sarcomeric A-bands may be the "gold standard" for evaluation of SL variability due to the absence of optical interference between the sarcomere center and non-sarcomeric structures. This contrasts with sarcomere edges where t-tubules may not consistently colocalize to Z-disks. The use of SHG microscopy instead of fluorescent imaging can be a prospective tool to map sarcomere variability both in vitro and in vivo conditions and to reveal its role in the functional behavior of living myocardium.
肌节长度 (SL) 及其在肌原纤维上的变化强烈调节整合协调的心肌收缩。因此,获得个体 SL 特性很重要。为此,通常使用共焦荧光(例如,使用 ANEPPS)或透射光显微镜进行光学成像。然而,这仅允许可视化与 Z 盘相关的结构。相比之下,二次谐波产生 (SHG) 显微镜可直接可视化 A 带肌节结构。在这里,我们通过使用 ANEPPS 和 SHG 成像比较了分离的放松大鼠心肌细胞中的平均 SL 和其变异性。我们发现,使用 SHG 时,通过几种绝对和相对测量评估的 SL 变异性比使用 ANEPPS 时小两倍,而两种光学方法给出相同的平均 (中位数) SL。我们得出结论,具有相似光学空间分辨率的光学方法可提供平均 SL 的有效估计值,但是由于在肌节中心和非肌节结构之间不存在光学干扰,因此使用 SHG 显微镜对肌节 A 带的可视化可能是评估 SL 变异性的“金标准”。这与肌节边缘形成对比,其中 T 小管可能不会始终与 Z 盘共定位。SHG 显微镜的使用代替荧光成像可以成为一种有前途的工具,用于在体外和体内条件下绘制肌节变异性,并揭示其在活心肌功能行为中的作用。
