Institute of Biotechnology, Shiraz University, Shiraz, Fars, Iran.
Department of Food Science and Technology, Shiraz University, Shiraz, Fars, Iran.
Microb Cell Fact. 2023 Feb 25;22(1):39. doi: 10.1186/s12934-023-02043-z.
BACKGROUND: Virus-like particles are an interesting vector platform for vaccine development. Particularly, Hepatitis B virus core antigen has been used as a promising VLP platform. It is highly expressed in different recombinant expression systems, such as E. coli, and self-assembled in vitro. It effectively improves the immunogenicity of foreign antigenic epitopes on its surface. Various foreign antigens from bacteria, viruses, and protozoa can be genetically inserted into such nanoparticles. The effective immunogenicity due to VLP vaccines has been reported. However, no research has been performed on the SARS-CoV2 vaccine within this unique platform through genetic engineering. Considering the high yield of target proteins, low cost of production, and feasibility of scaling up, E. coli is an outstanding expression platform to develop such vaccines. Therefore, in this investigation, we planned to study and develop a unique HBc VLP-based vaccine against SARS-Cov2 utilizing the E. coli expression system due to its importance. RESULTS: Insertion of the selected epitope was done into the major immunodominant region (MIR) of truncated (149 residues) hepatitis B core capsid protein. The chimeric protein was constructed in PET28a and expressed through the bacterial E. coli BL21 expression system. However, the protein was expressed in inclusion body forms and extracted following urea denaturation from the insoluble phase. Following the extraction, the vaccine protein was purified using Ni2 + iminodiacetic acid (IDA) affinity chromatography. SDS-PAGE and western blotting were used to confirm the protein expression. Regarding the denaturation step, the unavoidable refolding process was carried out, so that the chimeric VLP reassembled in native conformation. Based on the transmission electron microscopy (TEM) analysis, the HBC VLP was successfully assembled. Confirming the assembled chimeric VLP, we explored the immunogenic effectivity of the vaccine through mice immunization with two-dose vaccination with and without adjuvant. The utilization of adjuvant was suggested to assess the effect of adjuvant on improving the immune elicitation of chimeric VLP-based vaccine. Immunization analysis based on anti-spike specific IgG antibody showed a significant increase in antibody production in harvested serum from immunized mice with HBc-VLP harboring antigenic epitope compared to HBc-VLP- and PBS-injected mice. CONCLUSIONS: The results approved the successful production and the effectiveness of the vaccine in terms of humoral IgG antibody production. Therefore, this platform can be considered a promising strategy for developing safe and reasonable vaccines; however, more complementary immunological evaluations are needed.
背景:病毒样颗粒是疫苗开发的一个有趣的载体平台。特别是乙型肝炎病毒核心抗原已被用作有前途的 VLP 平台。它可以在不同的重组表达系统中高度表达,如大肠杆菌,并在体外自行组装。它有效地提高了表面外来抗原表位的免疫原性。各种来自细菌、病毒和原生动物的外来抗原可以通过遗传插入到这种纳米颗粒中。已经报道了 VLP 疫苗的有效免疫原性。然而,通过基因工程,还没有在这个独特的平台上对 SARS-CoV2 疫苗进行研究。考虑到靶蛋白的高产量、低成本生产和扩大规模的可行性,大肠杆菌是开发此类疫苗的出色表达平台。因此,在这项研究中,我们计划利用大肠杆菌表达系统研究和开发针对 SARS-Cov2 的独特 HBc VLP 疫苗,因为它很重要。

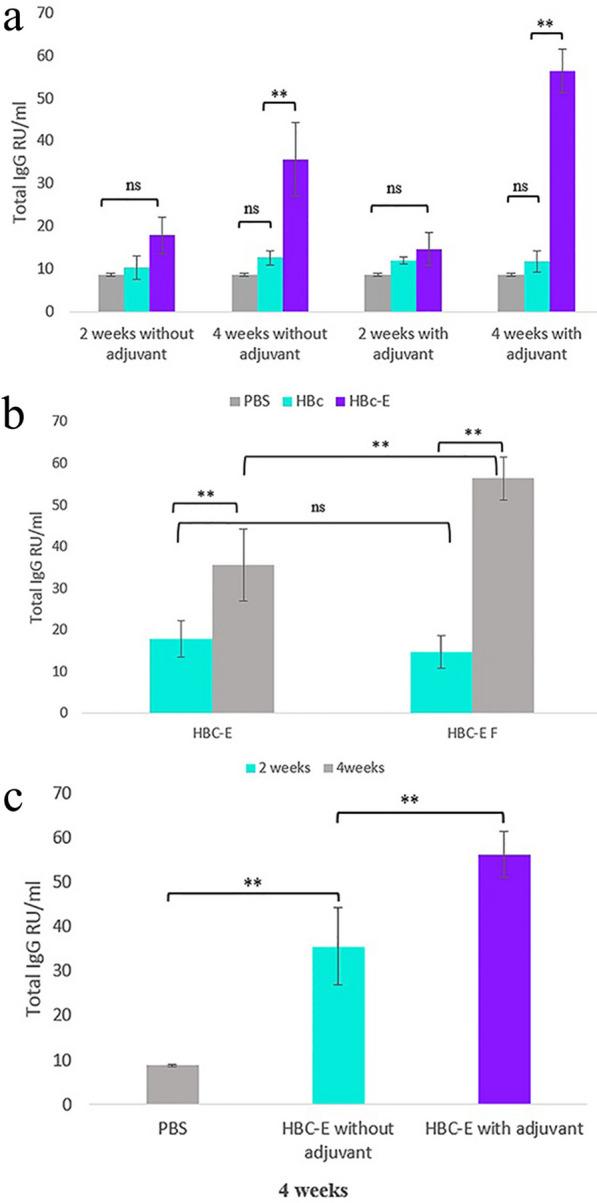

结果:将所选表位插入截短(149 个残基)乙型肝炎核心衣壳蛋白的主要免疫显性区(MIR)中。嵌合蛋白构建在 PET28a 中,并通过细菌大肠杆菌 BL21 表达系统表达。然而,该蛋白以包涵体形式表达,并通过尿素变性从不可溶相中提取。提取后,使用 Ni2+亚氨基二乙酸(IDA)亲和层析对疫苗蛋白进行纯化。SDS-PAGE 和 Western blot 用于确认蛋白表达。关于变性步骤,不可避免地要进行不可逆转的重折叠过程,以使嵌合 VLP 重新组装成全天然构象。基于透射电子显微镜(TEM)分析,成功组装了 HBC VLP。在确认组装的嵌合 VLP 后,我们通过用两剂量疫苗接种并用或不用佐剂对小鼠进行免疫接种来探索疫苗的免疫效力。佐剂的使用被建议用于评估佐剂对提高基于嵌合 VLP 的疫苗免疫诱导的效果。基于抗刺突特异性 IgG 抗体的免疫分析表明,与 HBc-VLP 和 PBS 注射的小鼠相比,携带抗原表位的 HBc-VLP 疫苗接种小鼠的血清中抗体产生量显著增加。
结论:结果证实了成功生产和疫苗在体液 IgG 抗体产生方面的有效性。因此,该平台可被视为一种有前途的安全合理疫苗开发策略;然而,还需要更多的互补免疫评估。
