Marzouk Hoda M, Ayish Nada S, El-Zeany Badr A, Fayed Ahmed S
Analytical Chemistry Department, Faculty of Pharmacy, Cairo University, Kasr El-Aini St., Cairo, 11562, Egypt.
BMC Chem. 2023 Mar 10;17(1):14. doi: 10.1186/s13065-023-00926-1.

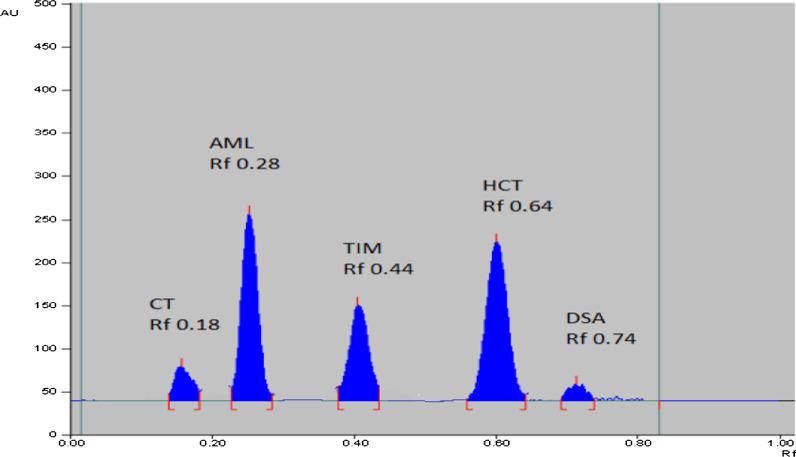

Designing new, verified methodologies with a focus on sustainability, analytical efficiency, simplicity, and the environment has become a major priority for pharmaceutical quality control units. In this way, sustainable and selective separation-based methodologies were designed and validated for the concurrent estimation of amiloride hydrochloride (AML), hydrochlorothiazide (HCT) and timolol maleate (TIM) in their fixed dose formulation (Moducren Tablets) along with hydrochlorothiazide potential impurities, salamide (DSA) and chlorothiazide (CT). The first method is a high performance thin layer chromatographic method (HPTLC-densitometry). The first developed method employed silica gel HPTLC F plates as stationary phase using a chromatographic developing system composed of ethyl acetate-ethanol-water-ammonia (8.5:1:0.5:0.3, by volume). The separated drug bands were densito-metrically measured at 220.0 nm for AML, HCT, DSA and CT and at 295.0 nm for TIM. The linearity was assessed over a wide concentration range, 0.5-10 µg/band, 1.0-16.0 µg/band and 1.0-14 µg/band for AML, HCT and TIM, in order and 0.05-1.0 µg/band for each of DSA and CT. The second method is capillary zone electrophoresis (CZE). The electrophoretic separation was achieved using background electrolyte (BGE), borate buffer 40.0 mM with pH 9.0 ± 0.2, at applied voltage of + 15 kV with on-column diode array detection at 200.0 nm. The method linearity was reached over the concentration range of 20.0-160.0 µg/mL, 10.0-200.0 µg/mL, 10.0-120.0 µg/mL for AML, HCT and TIM, respectively and 10.0-100.0 µg/mL for DSA. The suggested methods were optimized to achieve best performance and validated agreeing with the ICH guidelines. Assessment of methods' sustainability and greenness was performed using different greenness assessment tools.
设计注重可持续性、分析效率、简便性和环境的新型经过验证的方法,已成为制药质量控制部门的首要任务。通过这种方式,设计并验证了基于可持续性和选择性分离的方法,用于同时测定固定剂量制剂(莫杜克里恩片)中的盐酸阿米洛利(AML)、氢氯噻嗪(HCT)和马来酸噻吗洛尔(TIM)以及氢氯噻嗪的潜在杂质,即沙酰胺(DSA)和氯噻嗪(CT)。第一种方法是高效薄层色谱法(HPTLC - 密度测定法)。最初开发的方法使用硅胶HPTLC F板作为固定相,采用由乙酸乙酯 - 乙醇 - 水 - 氨(8.5:1:0.5:0.3,体积比)组成的色谱展开系统。分离出的药物条带在220.0 nm处进行密度测定,用于AML、HCT、DSA和CT,在295.0 nm处用于TIM。分别在较宽的浓度范围内评估线性,AML为0.5 - 10 μg/条带,HCT为1.0 - 16.0 μg/条带,TIM为1.0 - 14 μg/条带,DSA和CT均为0.05 - 1.0 μg/条带。第二种方法是毛细管区带电泳(CZE)。使用背景电解质(BGE),即40.0 mM pH 9.0 ± 0.2的硼酸盐缓冲液,在 +15 kV的施加电压下进行电泳分离,并在200.0 nm处进行柱上二极管阵列检测。该方法的线性范围分别为AML 20.0 - 160.0 μg/mL、HCT 10.0 - 200.0 μg/mL、TIM 10.0 - 120.0 μg/mL,DSA为10.0 - 100.0 μg/mL。对建议的方法进行了优化以实现最佳性能,并根据ICH指南进行了验证。使用不同的绿色度评估工具对方法的可持续性和绿色度进行了评估。
