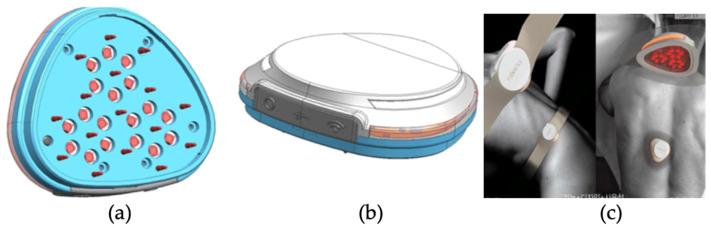

Visual diagnosis and rejuvenation are methods currently used to diagnose and treat pressure ulcers, respectively. However, the treatment process is difficult. We developed a biophotonic sensor to diagnose pressure ulcers and, subsequently, developed a pressure ulcer care device (PUCD.) We conducted animal and clinical trials to investigate the device's effectiveness. We confirmed the accuracy of the pressure ulcer diagnosis algorithm to be 91% and we observed an 85% reduction in immune cells when using the PUCD to treat pressure ulcer-induced mice. Additionally, we compared the treatment group to the pressure ulcer induction group to assess the PUCD's effectiveness in identifying immune cells through its nuclear shape. These results indicate a positive effect and suggest the use of PUCD as a recovery method for pressure ulcer diagnosis and treatment.
