Development of a Particle Filter-Based Path Tracking Algorithm of Autonomous Trucks with a Single Steering and Driving Module Using a Monocular Camera.

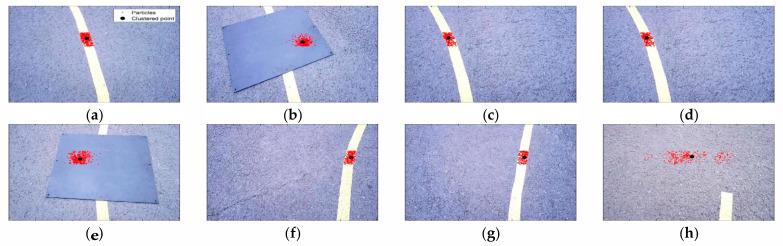

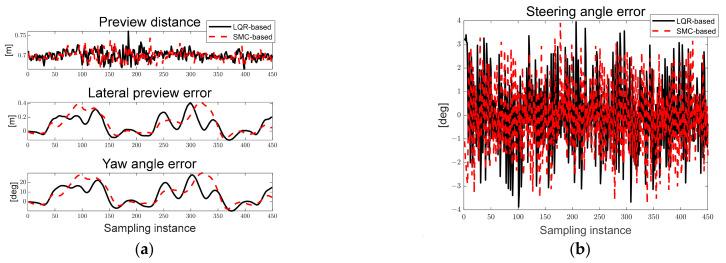

Recently, in various fields, research into the path tracking of autonomous vehicles and automated guided vehicles has been conducted to improve worker safety, convenience, and work efficiency. For path tracking of various systems applied to autonomous driving technology, it is necessary to recognize the surrounding environment, determine technology accordingly, and develop control methods. Various sensors and artificial-intelligence-based perception methods have limitations in that they must learn a large amount of data. Therefore, a particle-filter-based path tracking algorithm using a monocular camera was used for the recognition of target RGB. The path tracking errors were calculated and a linear-quadratic-regulator-based desired steering angle were derived. The autonomous trucks were steered and driven using a pulse-width-modulation-based steering and driving motor. Based on an autonomous truck with a single steering and driving module, it was verified that the path tracking could be used in three evaluation scenarios. To compare the LQR-based path tracking control performance proposed in this paper, an elliptical path tracking scenario using a conventional sliding mode control with robust control performance was performed. The results show that the RMS of the lateral preview error of the SMC was approximately 18% larger than that of the LQR-based method.
