Department of Anatomy, Faculty of Health Sciences, University of Pretoria, Arcadia, South Africa.
Clin Exp Dent Res. 2023 Jun;9(3):455-463. doi: 10.1002/cre2.735. Epub 2023 Apr 18.
The purpose of this study is to establish the efficacy of Yonsei point in the treatment of a gummy smile in a White South African population. The accurate surface anatomy criteria in relation to the underlying musculature for the administration of Botulinum toxin injections in the treatment of gummy smile was determined.
Nineteen (10 males and 9 females) cadavers were selected for facial dissection. Facial profile photographs were taken before and after dissection. The before and after photographs were overlayed to determine where the pin positions should be on the dissected cadaver to determine the Yonsei point. The levator labii superioris (LLS), LLS alaeque nasi (LLSAN), zygomaticus minor, and zygomaticus major muscles were measured using a protractor and ruler, which accounted for the manual measurements. Digital measurements were measured by importing dissected images into ImageJ. Circles with a 2 cm diameter (1 cm radius) were constructed to determine whether the Yonsei point could successfully influence muscles fibers.

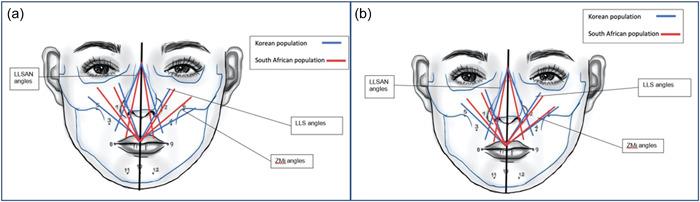

Digital and manual measurements show comparable results with high correlation and reliability. Results showed that the White South African population had narrower facial musculature angles as compared with the Korean population.
Based on the selected sample, the Yonsei point is an ineffective injection site for the successful treatment of gummy smile in a White South African population.
本研究旨在确定延世点在南非白人患者治疗露龈笑中的疗效。确定了注射肉毒毒素治疗露龈笑时,与深层肌肉相关的准确表面解剖学标准。
选择 19 具(10 男 9 女)尸体进行面部解剖。解剖前和解剖后拍摄面部侧位照片。将前后照片叠加,以确定在解剖尸体上应在何处放置针位,以确定延世点。使用量角器和尺子测量上唇提肌(LLS)、LLS 鼻翼(LLSAN)、小颧肌和大颧肌,并进行手工测量。通过将解剖图像导入 ImageJ 来进行数字测量。构建直径为 2cm(半径为 1cm)的圆,以确定延世点是否可以成功影响肌肉纤维。
数字和手动测量结果具有高度相关性和可靠性。结果表明,与韩国人群相比,南非白人的面部肌肉角度更窄。
基于所选样本,延世点不是南非白人成功治疗露龈笑的有效注射部位。
