School of Nano-Tech and Nano-Bionics, University of Science and Technology of China, Hefei, 230026, China.
i-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123, China.
Nat Commun. 2023 Apr 21;14(1):2301. doi: 10.1038/s41467-023-37997-6.

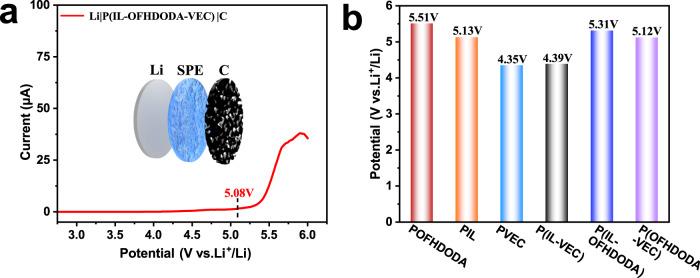

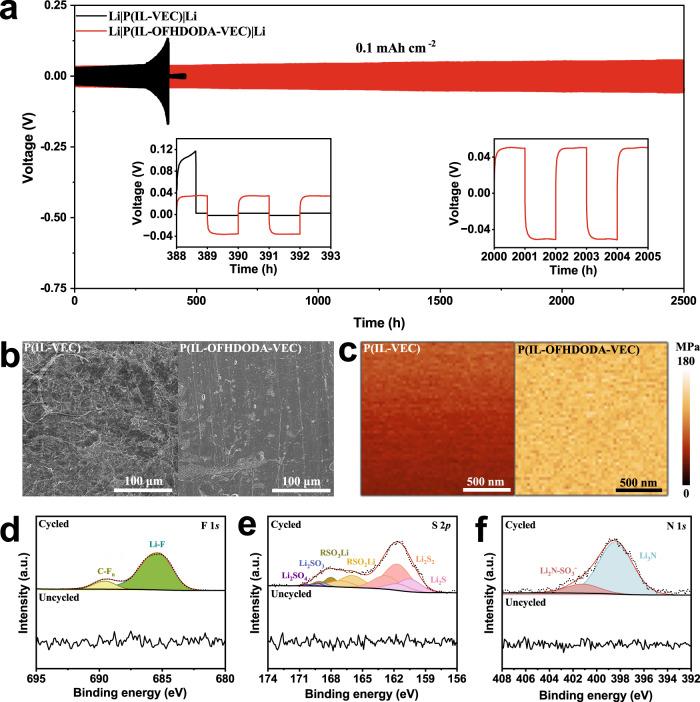

Solid polymer electrolytes (SPEs), which are favorable to form intimate interfacial contacts with electrodes, are promising electrolyte of choice for long-cycling lithium metal batteries (LMBs). However, typical SPEs with easily oxidized oxygen-bearing polar groups exhibit narrow electrochemical stability window (ESW), making it impractical to increase specific capacity and energy density of SPE based LMBs with charging cut-off voltage of 4.5 V or higher. Here, we apply a polyfluorinated crosslinker to enhance oxidation resistance of SPEs. The crosslinked network facilitates transmission of the inductive electron-withdrawing effect of polyfluorinated segments. As a result, polyfluorinated crosslinked SPE exhibits a wide ESW, and the Li|SPE|LiNiCoMnO cell with a cutoff voltage of 4.5 V delivers a high discharge specific capacity of ~164.19 mAh g at 0.5 C and capacity retention of ~90% after 200 cycles. This work opens a direction in developing SPEs for long-cycling high-voltage LMBs by using polyfluorinated crosslinking strategy.
固态聚合物电解质 (SPE) 与电极形成紧密界面接触的能力使其成为长循环锂金属电池 (LMB) 的首选电解质。然而,具有易氧化含氧极性基团的典型 SPE 的电化学稳定窗口 (ESW) 较窄,这使得充电截止电压为 4.5V 或更高的基于 SPE 的 LMB 增加比容量和能量密度变得不切实际。在这里,我们应用了一种含氟交联剂来提高 SPE 的抗氧化能力。交联网络促进了含氟段的诱导电子吸电子效应的传递。结果,含氟交联 SPE 表现出宽的 ESW,截止电压为 4.5V 的 Li|SPE|LiNiCoMnO 电池在 0.5C 时的放电比容量约为 164.19mAh g,200 次循环后的容量保持率约为 90%。这项工作为通过使用含氟交联策略开发用于长循环高压 LMB 的 SPE 开辟了一个方向。
