School of Science and Engineering, The Chinese University of Hong Kong, 518172, Shenzhen, China.
Shenzhen Institute of Artificial Intelligence and Robotics for Society, 518172, Shenzhen, China.
Adv Sci (Weinh). 2023 Jun;10(18):e2207493. doi: 10.1002/advs.202207493. Epub 2023 Apr 25.

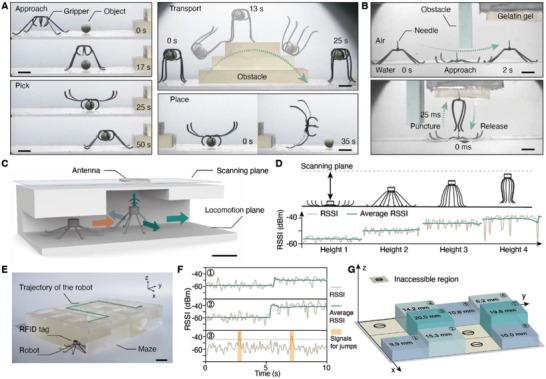

In nature, some semiaquatic arthropods evolve biomechanics for jumping on the water surface with the controlled burst of kinetic energy. Emulating these creatures, miniature jumping robots deployable on the water surface have been developed, but few of them achieve the controllability comparable to biological systems. The limited controllability and agility of miniature robots constrain their applications, especially in the biomedical field where dexterous and precise manipulation is required. Herein, an insect-scale magnetoelastic robot with improved controllability is designed. The robot can adaptively regulate its energy output to generate controllable jumping motion by tuning magnetic and elastic strain energy. Dynamic and kinematic models are developed to predict the jumping trajectories of the robot. On-demand actuation can thus be applied to precisely control the pose and motion of the robot during the flight phase. The robot is also capable of making adaptive amphibious locomotion and performing various tasks with integrated functional modules.
在自然界中,一些半水生节肢动物通过控制动能的爆发来进化出在水面上跳跃的生物力学。模仿这些生物,已经开发出了可部署在水面上的微型跳跃机器人,但它们中很少有能达到与生物系统相媲美的可控性。微型机器人的有限可控性和敏捷性限制了它们的应用,特别是在需要灵巧和精确操作的生物医学领域。在此,设计了一种具有改进可控性的昆虫尺度磁弹性机器人。机器人可以通过调节磁弹性应变能自适应地调节其能量输出,从而产生可控的跳跃运动。建立了动力学和运动学模型来预测机器人的跳跃轨迹。因此,可以按需驱动来精确控制机器人在飞行阶段的姿态和运动。机器人还能够进行自适应两栖运动,并通过集成功能模块执行各种任务。
