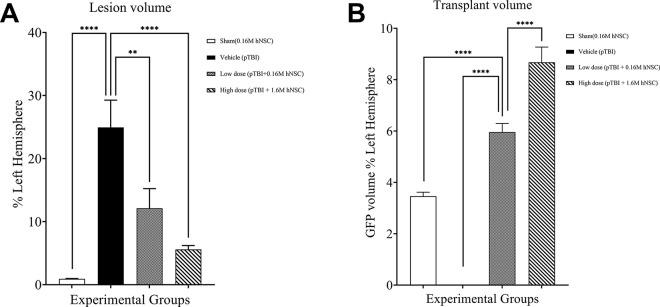

Traumatic brain injury (TBI) often results in long-lasting patterns of neurological deficits including motor, sensory, and cognitive abnormalities. Cranial gunshot survivors are among the most disabled TBI patients and face a lifetime of disability with no approved strategies to protect or repair the brain after injury. Recent studies using a model of penetrating TBI (pTBI) have reported that human neural stem cells (hNSCs) transplantation can lead to dose and location-dependent neuroprotection. Evidence for regional patterns of microglial activation has also been reported after pTBI with evidence for microglial cell death by pyroptosis. Because of the importance of injury-induced microglial activation in the pathogenesis of TBI, we tested the hypothesis that dose-dependent hNSC mediated neuroprotection after pTBI was associated with reduced microglial activation in pericontusional cortical areas. To test this hypothesis, quantitative microglial/macrophage Iba1 immunohistochemistry and Sholl analysis was conducted to investigate the arborization patterns using four experimental groups including, (i) Sham operated (no injury) + low dose (0.16 million cells/rat), (ii) pTBI + vehicle (no cells), (iii) pTBI + low dose hNSCs (0.16 million/rat), and (iv) pTBI + high dose hNSCs (1.6 million cells/rat). At 3 months post-transplantation (transplants at one week after pTBI), the total number of intersections was significantly reduced in vehicle treated pTBI animals versus sham operated controls indicating increased microglia/macrophage activation. In contrast, hNSC transplantation led to a dose-dependent increase in the number of intersections compared to pTBI vehicle indicating less microglia/macrophage activation. The peak of Sholl intersections at 1 μm from the center of the microglia/macrophages ranged from ~6,500-14,000 intersections for sham operated, ~250-500 intersections for pTBI vehicle, ~550-1,000 intersections for pTBI low dose, and ~2,500-7,500 intersections for pTBI high dose. Plotting data along the rostrocaudal axis also showed that pericontusional cortical areas protected by hNSC transplantation had increased intersections compared to nontreated pTBI animals. These studies using a non-biased Sholl analysis demonstrated a dose-dependent reduction in inflammatory cell activation that may be associated with a neuroprotective effect driven by the cellular transplant in perilesional regions after pTBI.
