Li-Ion Conductivity of Single-Step Synthesized Glassy-Ceramic LiGePS and Post-heated Highly Crystalline LiGePS.

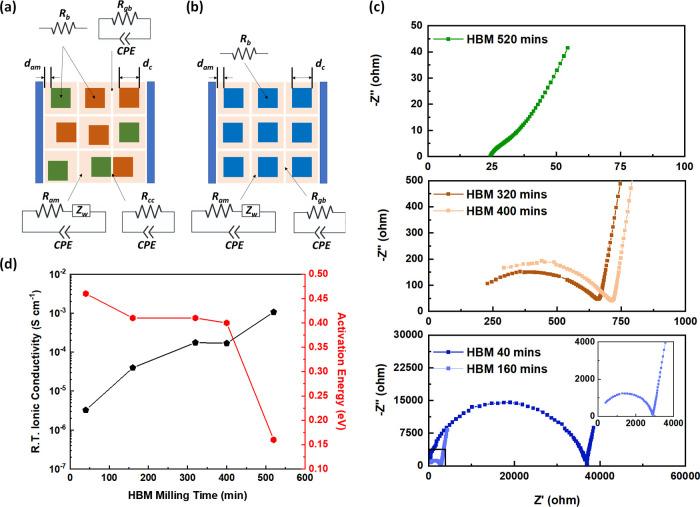

LiGePS is a phosphosulfide solid electrolyte that exhibits exceptionally high Li-ion conductivity, reaching a conductivity above 10 S cm at room temperature, rivaling that of liquid electrolytes. Herein, a method to produce glassy-ceramic LiGePS via a single-step utilizing high-energy ball milling was developed and systematically studied. During the high energy milling process, the precursors experience three different stages, namely, the 'Vitrification zone' where the precursors undergo homogenization and amorphization, 'Intermediary zone' where LiPS and LiGeS are formed, and the 'Product stage' where the desired glassy-ceramic LiGePS is formed after 520 min of milling. At room temperature, the as-milled sample achieved a high ionic conductivity of 1.07 × 10 S cm. It was determined via quantitative phase analyses (QPA) of transmission X-ray diffraction results that the as-milled LiGePS possessed a high degree of amorphization (44.4 wt %). To further improve the crystallinity and ionic conductivity of the LiGePS, heat treatment of the as-milled sample was carried out. The optimal heat-treated LiGePS is almost fully crystalline and possesses a room temperature ionic conductivity of 3.27 × 10 S cm, an over 200% increase compared to the glassy-ceramic LiGePS. These findings help provide previously lacking insights into the controllable preparation of LiGePS material.
