VEGF Detection via Impedance Spectroscopy on Surface Functionalized Interdigitated Biosensor.

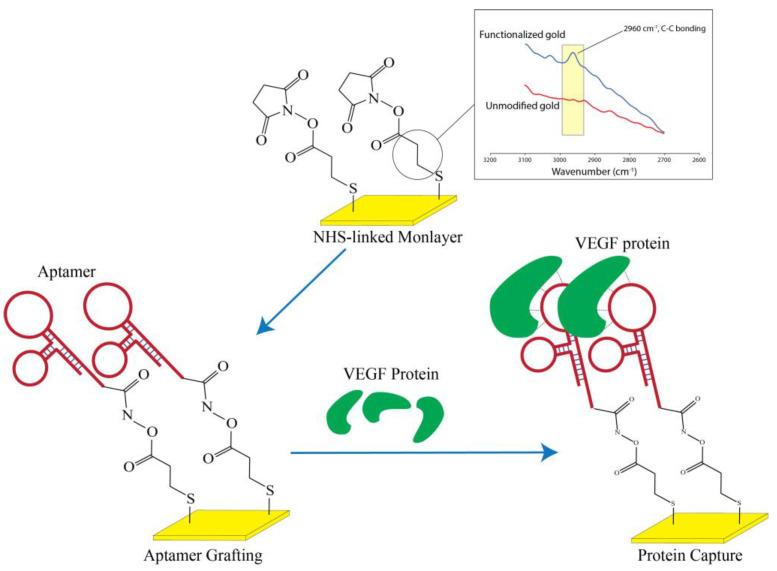

Vascular endothelial growth factor (VEGF), a clinically important biomarker, often plays a key role in angiogenesis, would healing, tumor growth, lung development, and in retinal diseases. Hence, detecting and quantifying VEGF is deemed medically important in clinical diagnosis for many diseases. In this report, a simple yet highly cost-effective platform was proposed for VEGF protein detection using commercially available interdigitated sensors that are surface modified to present DNA optimally for VEGF capture. The dielectric characteristics between the fingers of the sensor were modulated by the negatively charged aptamer-VEGF capture, and the impedance was estimated using an impedance analyzer. Impedance-spectra tests were compared among pristine unmodified surfaces, functionalized monolayer surfaces, and aptamer-grafted surfaces in order to evaluate the efficacy of VEGF detection. From our results, the sensitivity experiments as conducted showed the ability of the interdigitated sensor to detect VEGF at a low concentration of 5 pM (200 pg/mL). The specificity of the functionalized sensor in detecting VEGF was further examined by comparing the impedance to platelet-derived growth factor, and the results confirm the specificity of the sensor. Finally, the Nyquist plot of impedance spectra was also presented to help data visualization and the overall performance of the device was found to be a highly suitable template for a smart biosensor for the detection of VEGF.
