基于季铵官能化聚苯乙烯和磷酸铈(IV)的复合阴离子交换膜,具有改善的单价离子选择性和抗污染性能。
Composite Anion Exchange Membranes Based on Quaternary Ammonium-Functionalized Polystyrene and Cerium(IV) Phosphate with Improved Monovalent-Ion Selectivity and Antifouling Properties.
作者信息
Manin Andrey, Golubenko Daniel, Novikova Svetlana, Yaroslavtsev Andrey
机构信息
Kurnakov Institute of General and Inorganic Chemistry RAS, Leninskii Prospekt 31, Moscow 119071, Russia.
Faculty of Chemistry, National Research University Higher School of Economics, Vavilova str., 7, Moscow 119048, Russia.
出版信息
Membranes (Basel). 2023 Jun 26;13(7):624. doi: 10.3390/membranes13070624.

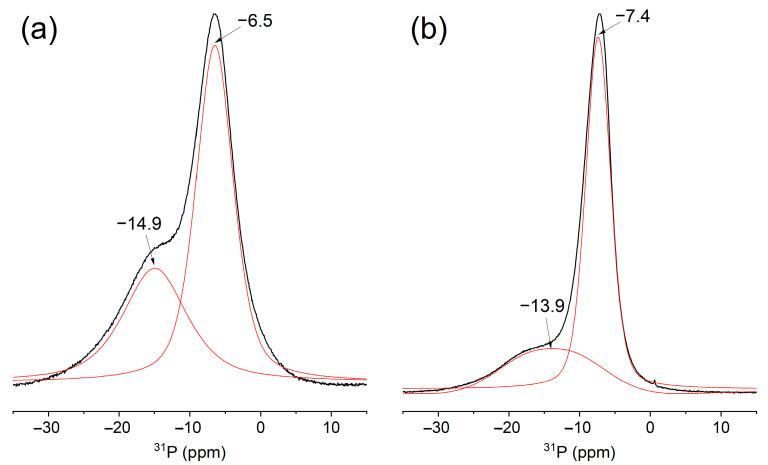

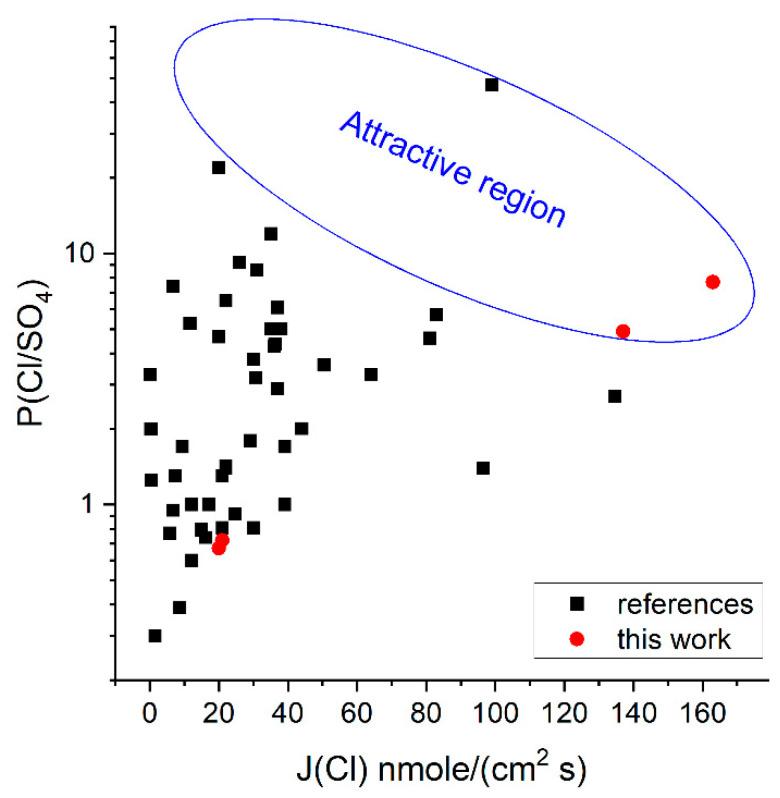

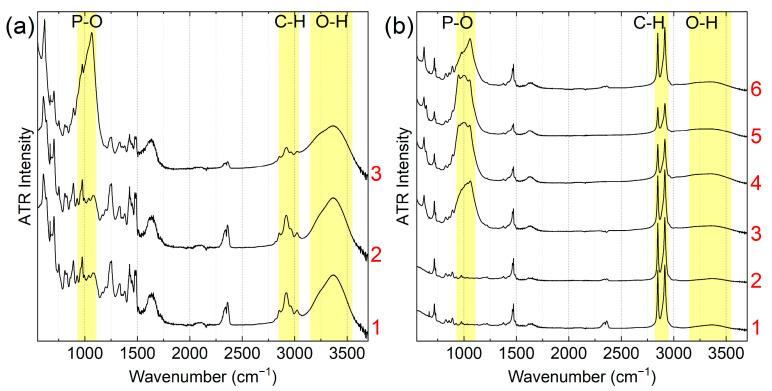

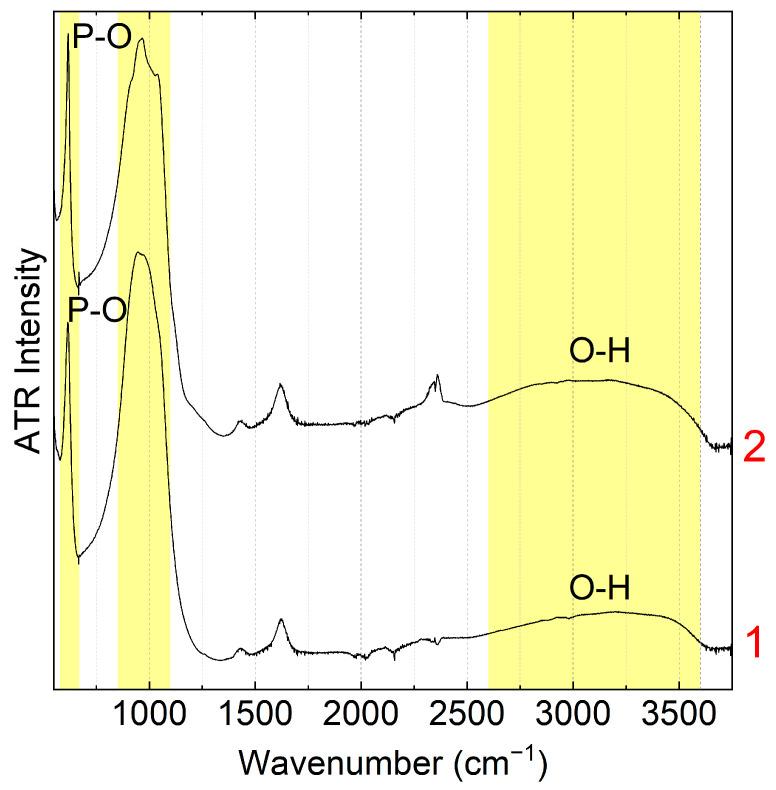

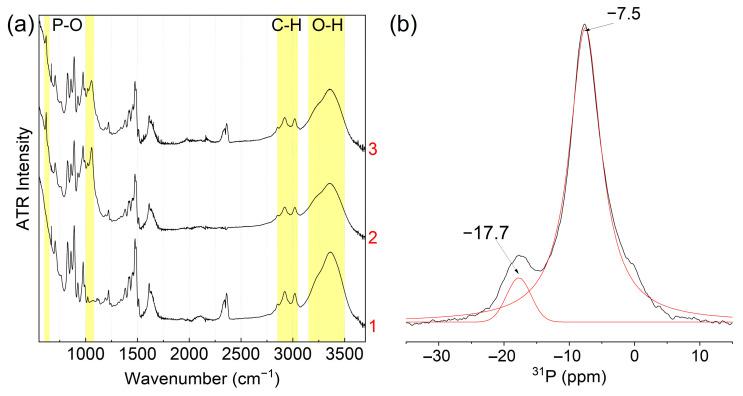

The possibility of targeted change of the properties of ion exchange membranes by incorporation of various nanoparticles into the membranes is attracting the attention of many research groups. Here we studied for the first time the influence of cerium phosphate nanoparticles on the physicochemical and transport properties of commercial anion exchange membranes based on quaternary ammonium-functionalized polystyrenes, such as heterogeneous Ralex AM and pseudo-homogeneous Neosepta AMX. The incorporation of cerium phosphate on one side of the membrane was performed by precipitation from absorbed cerium ammonium nitrate (CAN) anionic complex with ammonium dihydrogen phosphate or phosphoric acid. The structures of the obtained hybrid membranes and separately synthesized cerium phosphate were investigated using FTIR, P31 MAS NMR, EDX mapping, and scanning electron microscopy. The modification increased the membrane selectivity to monovalent ions in the ED desalination of an equimolar mixture of NaCl and NaSO. The highest selectivities of Ralex AM and Neosepta AMX-based hybrid membranes were 4.9 and 7.7, respectively. In addition, the modification of Neosepta membranes also increased the resistance to a typical anionic surfactant, sodium dodecylbenzenesulfonate.
通过将各种纳米颗粒掺入离子交换膜中来有针对性地改变其性能的可能性正吸引着许多研究团队的关注。在此,我们首次研究了磷酸铈纳米颗粒对基于季铵官能化聚苯乙烯的商用阴离子交换膜(如非均相Ralex AM和准均相Neosepta AMX)的物理化学和传输性能的影响。通过从吸附的硝酸铈铵(CAN)阴离子络合物与磷酸二氢铵或磷酸中沉淀,在膜的一侧掺入磷酸铈。使用傅里叶变换红外光谱(FTIR)、磷-31魔角旋转核磁共振(P31 MAS NMR)、能量散射X射线光谱(EDX)映射和扫描电子显微镜对所得混合膜以及单独合成的磷酸铈的结构进行了研究。在NaCl和NaSO4等摩尔混合物的电渗析脱盐过程中,这种改性提高了膜对单价离子的选择性。基于Ralex AM和Neosepta AMX的混合膜的最高选择性分别为4.9和7.7。此外,对Neosepta膜的改性还提高了其对典型阴离子表面活性剂十二烷基苯磺酸钠的抗性。
