近零热膨胀MnZnSnN/Ti复合材料的烧结温度效应

Sintering Temperature Effect of Near-Zero Thermal Expansion MnZnSnN/Ti Composites.

作者信息

Zhou Yongxiao, Zhang Lianyu, Qian Jinrui, Qian Zhiying, Hao Baoxin, Cong Qiang, Zhou Chang

机构信息

State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, Beijing 100083, China.

School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China.

出版信息

Materials (Basel). 2023 Aug 29;16(17):5919. doi: 10.3390/ma16175919.

DOI:10.3390/ma16175919

PMID:37687612

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC10488765/

Abstract

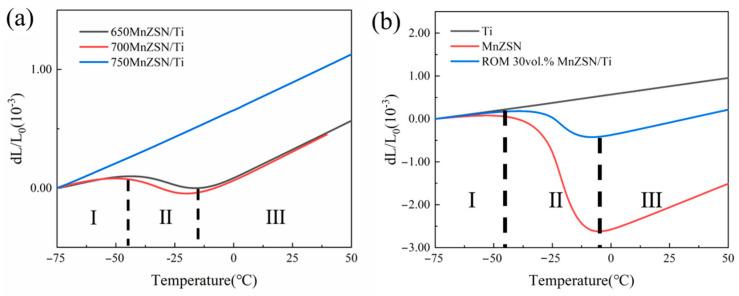

Metal matrix composites with near-zero thermal expansion (NZTE) have gained significant popularity in high-precision industries due to their excellent thermal stability and mechanical properties. The incorporation of MnZnSnN, which possesses outstanding negative thermal expansion properties, effectively suppressed the thermal expansion of titanium. Highly dense MnZnSnN/Ti composites were obtained by adjusting the fabrication temperature. Both composites fabricated at 650 °C and 700 °C exhibited NZTE. Furthermore, finite element analysis was employed to investigate the effects of thermal stress within the composites on their thermal expansion performance.

摘要

具有近零热膨胀（NZTE）的金属基复合材料因其优异的热稳定性和机械性能在高精度行业中备受青睐。具有出色负热膨胀性能的MnZnSnN的加入有效地抑制了钛的热膨胀。通过调整制备温度获得了高密度的MnZnSnN/Ti复合材料。在650℃和700℃制备的两种复合材料均表现出近零热膨胀。此外，采用有限元分析来研究复合材料内部的热应力对其热膨胀性能的影响。
