Design and Development of a Hair-like Sensor with Bridge-Type Flexible Amplification Mechanisms.

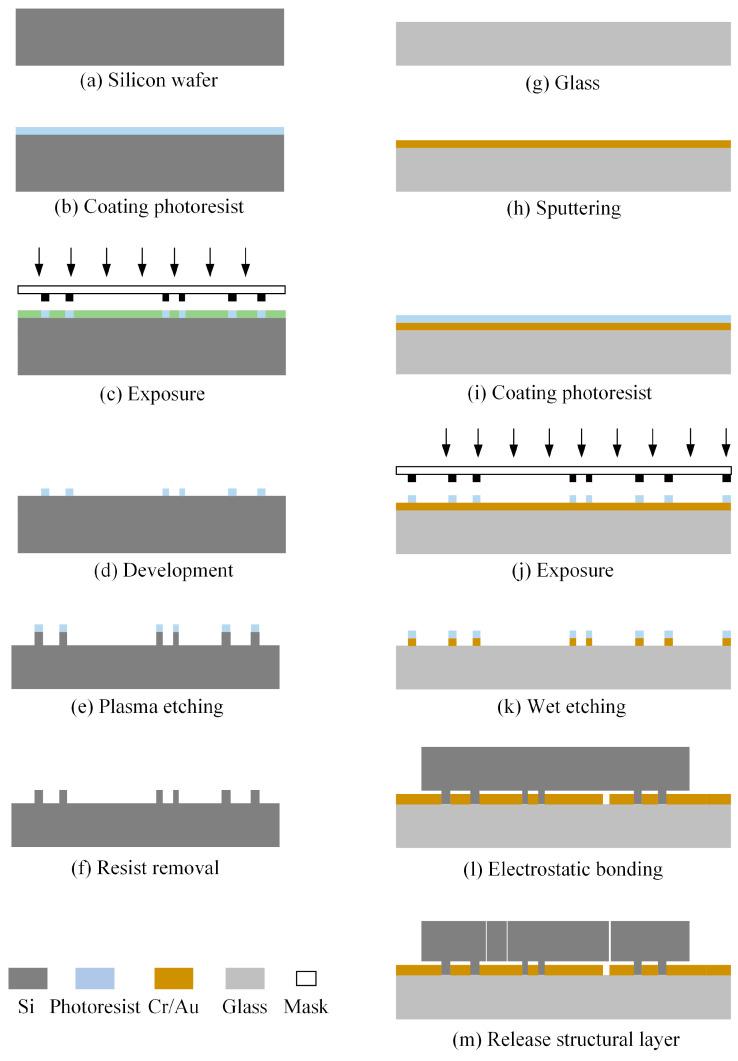

Compared with lever-type amplification mechanisms, bridge-type flexible amplification mechanisms have advantages in terms of amplification ratio and structural compactness. Therefore, they can effectively replace the lever-type amplification mechanism in the existing hair-like sensors and realize the development of miniature hair-like sensors with high sensitivity. With that in mind, a highly sensitive hair-like sensor based on a bridge-type amplification mechanism with distributed flexibility is presented to measure the airflow rate. First, the structural composition and operating principle of the hair-like sensor are described. Then, detailed design and analysis of the hair-like sensor are carried out, focusing on the design of the hair post structure, amplification mechanism, and resonator. Furthermore, the designed hair-like sensor is processed and prepared, and some experimental studies are conducted. The experimental results demonstrate that the developed hair-like sensor can measure the airflow rate with high sensitivity up to 8.56 Hz/(m/s). This provides a new concept for the structural design of hair-like sensors and expands the application of bridge-type flexible amplification mechanisms in the field of micro/nano sensors.
