Peng Tzu-Yu, Ma Tien-Li, Lee I-Ta, Wu Sheng-Han, Mine Yuichi, Lin Chia-Cheng
School of Dentistry, College of Oral Medicine, Taipei Medical University, Taipei 11031, Taiwan.
Research Center of Digital Oral Science and Technology, College of Oral Medicine, Taipei Medical University, Taipei 11031, Taiwan.
Polymers (Basel). 2023 Sep 6;15(18):3670. doi: 10.3390/polym15183670.

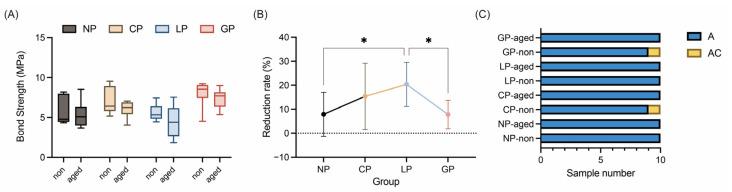

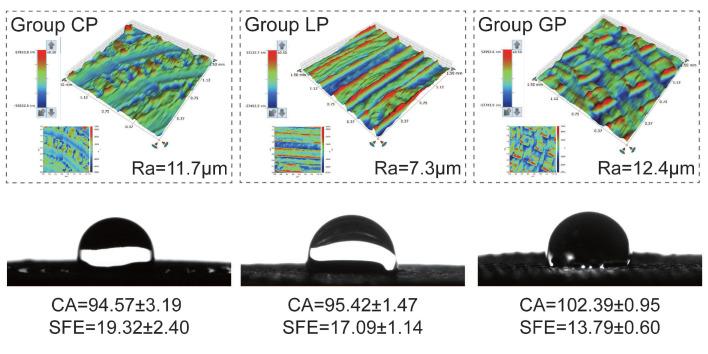

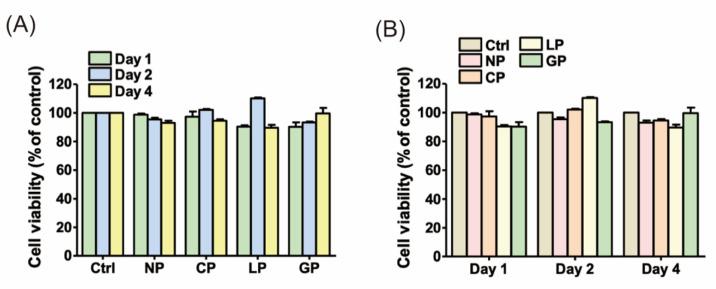

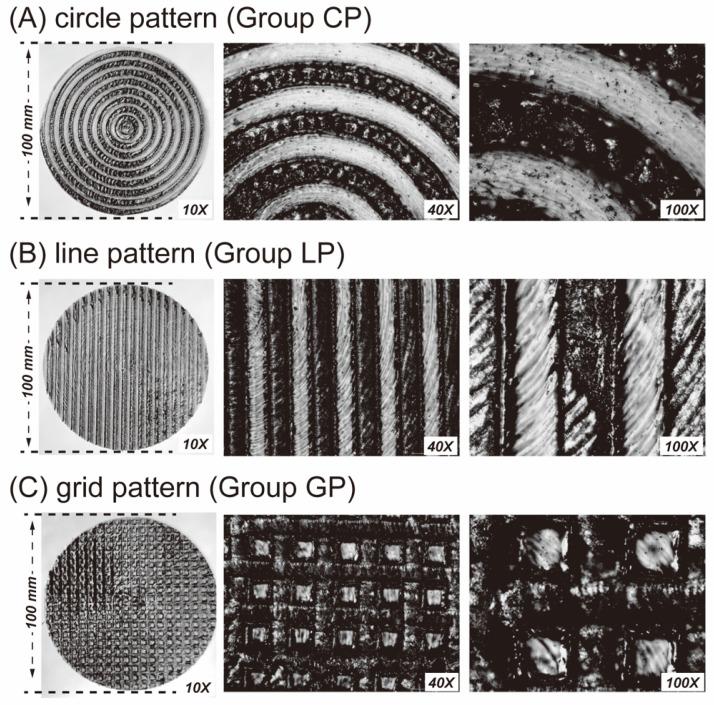

Polyetheretherketone (PEEK) is widely used in dentistry owing to its exceptional properties, including its natural appearance; however, existing surface treatment methods for bonding PEEK have limitations. Autofocus laser cutters, known for their precise engraving and cutting capabilities, offer potential for surface treatment of PEEK; thus, the objective of this study was to investigate the creation of laser groove structures on PEEK to enhance its bonding capability with dental resin cement. A dental computer-aided design and manufacturing system was used to fabricate PEEK samples, and three groove patterns (circle, line, and grid) were generated on PEEK surfaces, with air-abrasion used as the control group. The surface characteristics, cell viability, and bond strength were evaluated, and the data were statistically analyzed using one-way analysis of variance and post hoc Tukey's tests (α = 0.05). Laser-treated PEEK exhibited a uniform texture with a groove depth of approximately 39.4 µm, hydrophobic properties with a contact angle exceeding 90°, a surface roughness of 7.3-12.4 µm, consistent topography, and comparable cell viability compared with untreated PEEK. Despite a decrease in bond strength after thermal cycling, no significant intergroup differences were observed, except for the line-shaped laser pattern. These findings indicate that the autofocus laser cutter effectively enhances the surface characteristics of PEEK by creating a uniform texture and grooves, showing promise in improving bonding properties, even considering the impact of thermal cycling effects.
聚醚醚酮(PEEK)因其优异的性能,包括自然外观,而在牙科领域得到广泛应用;然而,现有的用于PEEK粘接的表面处理方法存在局限性。以精确雕刻和切割能力著称的自动聚焦激光切割机为PEEK的表面处理提供了潜力;因此,本研究的目的是研究在PEEK上创建激光凹槽结构以增强其与牙科树脂水门汀的粘接能力。使用牙科计算机辅助设计和制造系统制作PEEK样本,并在PEEK表面生成三种凹槽图案(圆形、线形和网格形),以空气喷砂作为对照组。评估表面特性、细胞活力和粘接强度,并使用单因素方差分析和事后Tukey检验(α = 0.05)对数据进行统计分析。与未处理的PEEK相比,激光处理后的PEEK呈现出均匀的纹理,凹槽深度约为39.4 µm,具有接触角超过90°的疏水特性,表面粗糙度为7.3 - 12.4 µm,形貌一致,细胞活力相当。尽管热循环后粘接强度有所下降,但除线形激光图案外,未观察到显著的组间差异。这些发现表明,自动聚焦激光切割机通过创建均匀的纹理和凹槽有效地增强了PEEK的表面特性,即使考虑到热循环效应的影响,在改善粘接性能方面也显示出前景。
