Department of Radiology, Keck School of Medicine, University of Southern California (USC), 1441 Eastlake Ave Ste 2315, Los Angeles, CA, 90089, USA.
Department of Radiology, Mayo Clinic, Rochester, MN, USA.
Emerg Radiol. 2023 Dec;30(6):765-776. doi: 10.1007/s10140-023-02174-1. Epub 2023 Oct 4.

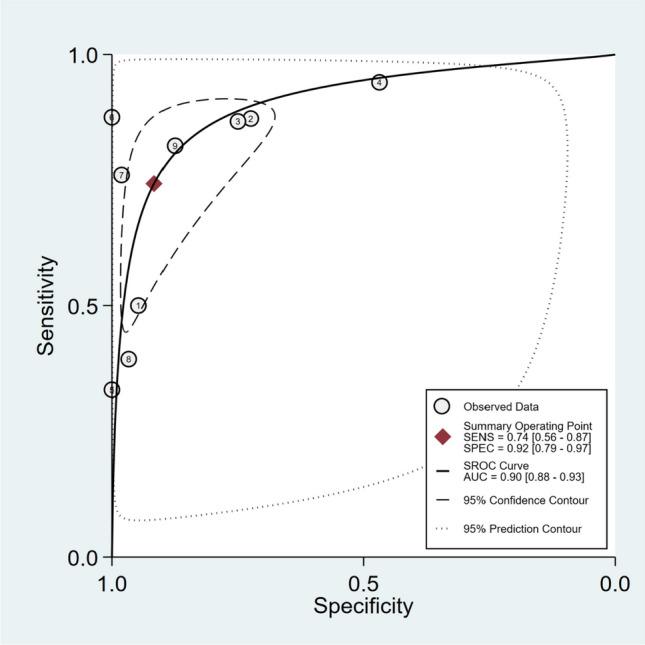

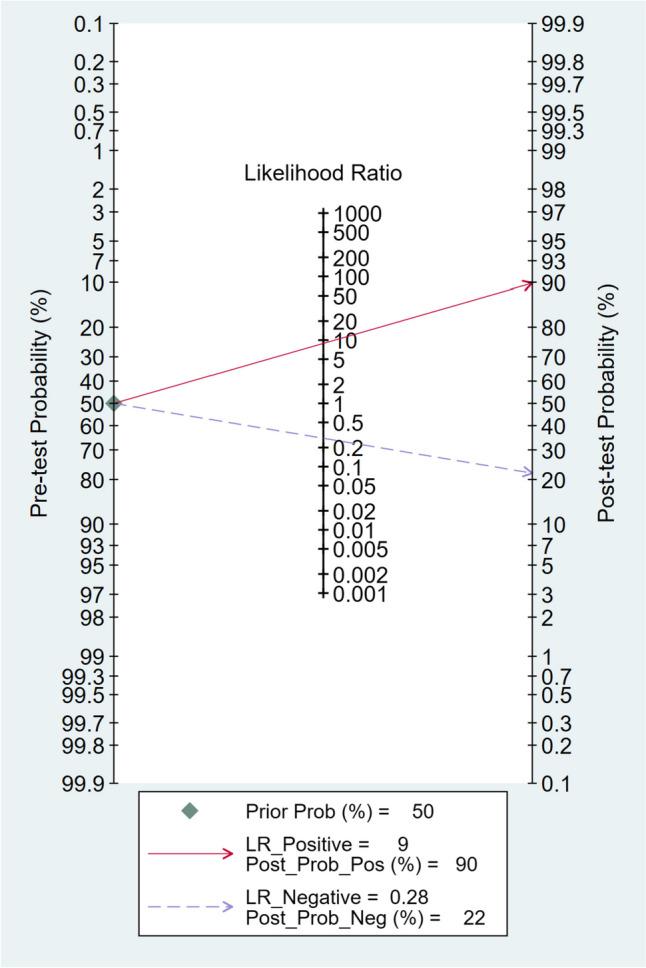

Penetrating diaphragmatic injuries pose diagnostic and management challenges. Computed tomography (CT) scans are valuable for stable patients, but concern exists for missed injuries and complications in nonoperatively managed cases. The objective of this study was to explore the diagnostic utility of multidetector CT scan (MDCT) in identifying diaphragmatic injuries resulting from penetrating trauma. A systematic review and meta-analysis were conducted, following established guidelines, by searching PubMed, Scopus, Web of Science, and Embase databases up to July 6, 2023. Eligible studies reporting MDCT's diagnostic accuracy in detecting penetrating diaphragmatic injuries were included. Relevant data elements were extracted and analyzed using STATA software. The study included 9 articles comprising 294 patients with confirmed penetrating diaphragmatic injuries through surgical procedures. MDCT's diagnostic performance revealed a pooled sensitivity of 74% (95% CI: 56%-87%) and a pooled specificity of 92% (95% CI: 79%-97%) (Fig. two), with significant heterogeneity in both sensitivity and specificity across the studies. The Fagan plot demonstrated that higher pre-test probabilities correlated with higher positive post-test probabilities for penetrating diaphragmatic injury diagnosis using MDCT, but even with negative results, there remained a small chance of having the injury, especially in cases with higher pre-test probabilities. This study highlights MDCT's effectiveness in detecting diaphragmatic injury from penetrating trauma, with moderate to high diagnostic accuracy. However, larger sample sizes, multicenter collaborations, and prospective designs are needed to address observed heterogeneity, enhancing understanding and consistency in MDCT's diagnostic capabilities in this context.
穿透性膈肌损伤具有诊断和处理上的挑战性。计算机断层扫描(CT)对稳定的患者具有重要价值,但在非手术治疗的病例中,存在对遗漏损伤和并发症的担忧。本研究的目的是探讨多排 CT 扫描(MDCT)在识别穿透性创伤引起的膈肌损伤中的诊断效用。按照既定指南,通过搜索 PubMed、Scopus、Web of Science 和 Embase 数据库,对截至 2023 年 7 月 6 日的文献进行了系统评价和荟萃分析。纳入了报告 MDCT 在检测穿透性膈肌损伤方面的诊断准确性的研究。使用 STATA 软件提取和分析相关数据元素。研究纳入了 9 项研究,共 294 例通过手术证实的穿透性膈肌损伤患者。MDCT 的诊断性能显示,敏感性的合并值为 74%(95%可信区间:56%-87%),特异性的合并值为 92%(95%可信区间:79%-97%)(图 2),各研究之间的敏感性和特异性均存在显著异质性。Fagan 图表明,较高的术前概率与使用 MDCT 对穿透性膈肌损伤诊断的较高阳性后验概率相关,但即使结果为阴性,仍有较小的损伤发生的可能性,尤其是在术前概率较高的情况下。本研究强调了 MDCT 在检测穿透性创伤引起的膈肌损伤方面的有效性,具有中等至高的诊断准确性。然而,需要更大的样本量、多中心合作和前瞻性设计,以解决观察到的异质性,提高对 MDCT 在这种情况下的诊断能力的理解和一致性。
