Synergistic Gas Hydrate and Corrosion Inhibition Using Maleic Anhydride: -Isopropylmethacrylamide Copolymer and Small Thiols.

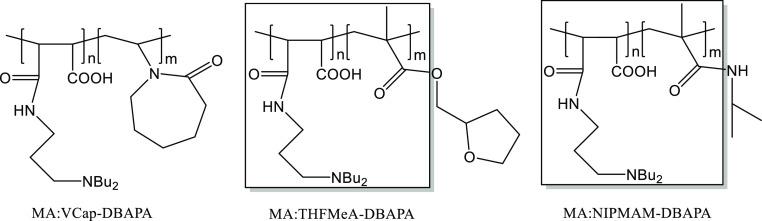

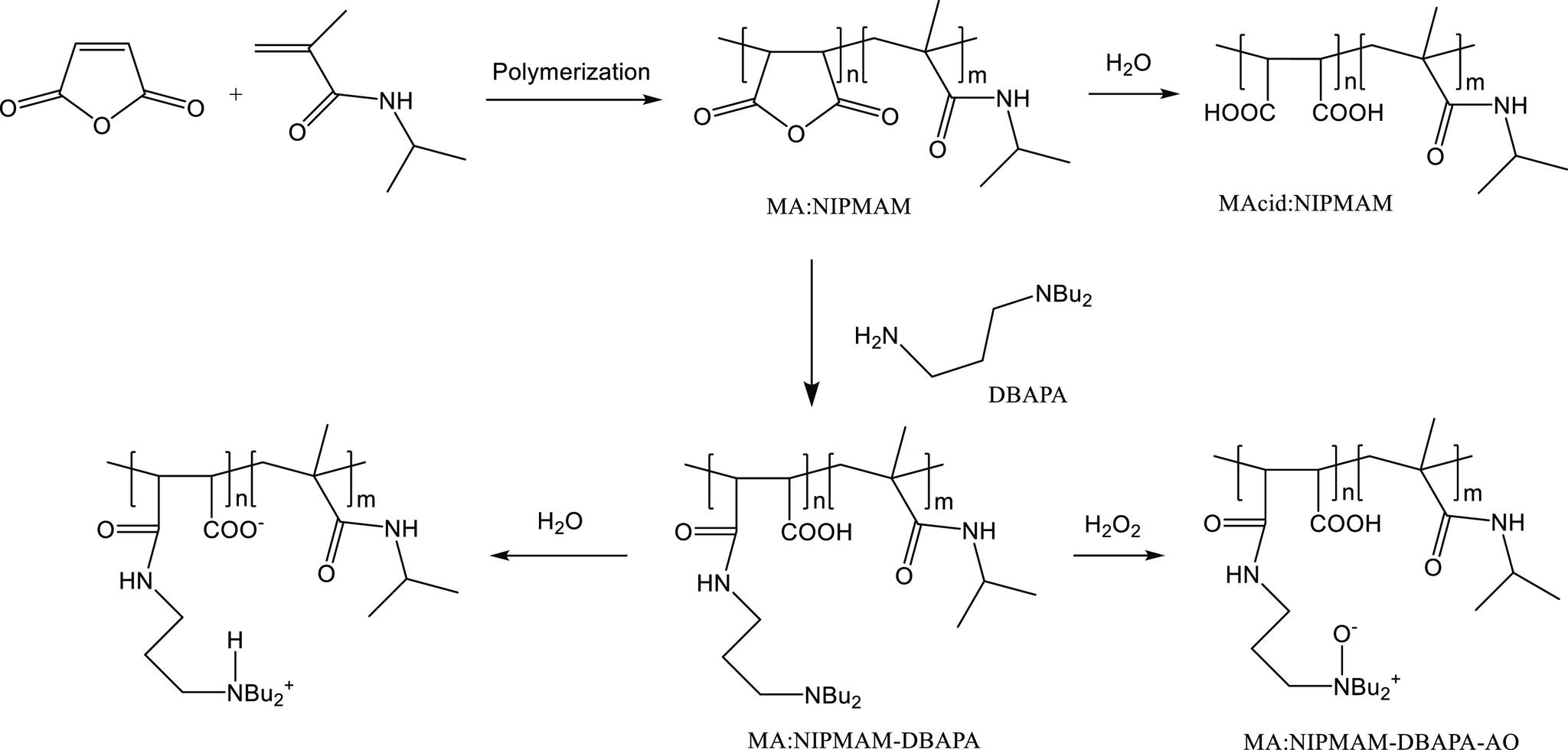

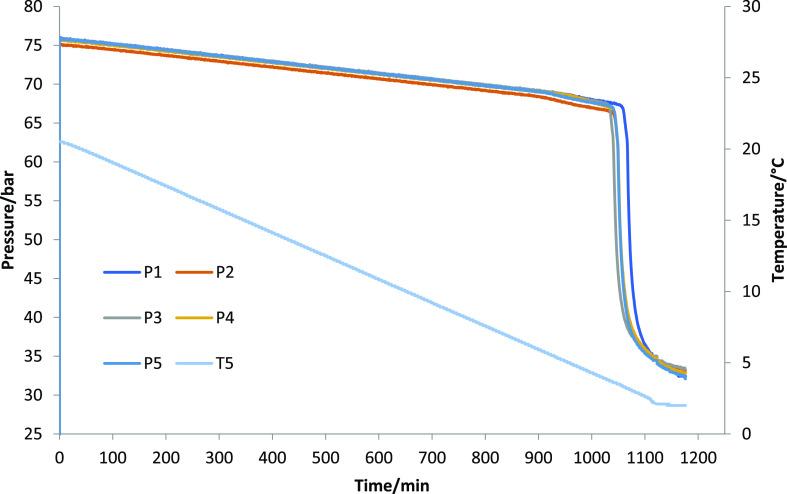

Kinetic gas hydrate inhibitors (KHIs) are often used in combination with film-forming corrosion inhibitors (CIs) in oilfield production flow lines. However, CIs can be antagonistic to KHI performance. In this study, maleic anhydride---isopropylmethacrylamide copolymer (MA:NIPMAM) and its derivatives were successfully synthesized and tested for gas hydrate and corrosion inhibition. KHI slow constant cooling (1 °C/h) screening tests in high-pressure rocking cells with synthetic natural gas and CO corrosion bubble tests in brine were performed in this study. The results revealed that underivatized MA:NIPMAM in water (as maleic acid:NIPMAM copolymer) showed poor KHI performance, probably due to internal hydrogen bonding. However, derivatization of MA:NIPMAM with 3-(dibutylamino)-1-propylamine (DBAPA) to give MA:NIPMAM-DBAPA gave excellent gas hydrate inhibition performance but only weak corrosion inhibition performance. Unlike some KHI polymers, MA:NIPMAM-DBAPA was compatible with a classic fatty acid imidazoline CI, such that neither the KHI polymer performance nor the corrosion inhibition of the imidazoline was affected. Furthermore, excellent dual gas hydrate and corrosion inhibition was also achieved in blends of MA:NIPMAM-DBAPA with small thiol-based molecules. In particular, the addition of butyl thioglycolate not only gave excellent corrosion inhibition efficiency, better than adding the fatty imidazoline, but also enhanced the overall gas hydrate inhibition performance.
