Kinetic Gas Hydrate Inhibition by Alternating Dipeptoids with Optimal Size and Shape -Substituents.

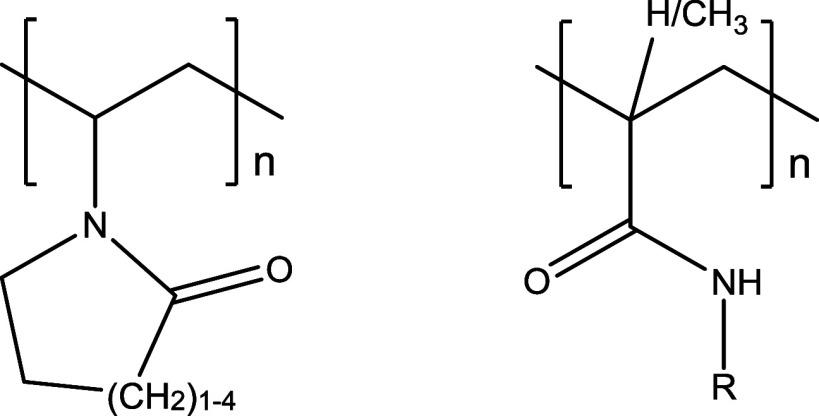

Current commercial kinetic hydrate inhibitors (KHIs) are all based on water-soluble polymers with amphiphilic alkylamide or lactam groups. The size and shape of the hydrophobic moiety are known to be critical for optimum KHI performance. Proteins and peptides represent an environmentally friendly alternative, especially as bioengineering could be used to manufacture a product predetermined to have optimum KHI performance. Here, we explore a new series of polymers that are alternating dipeptoids where one of the peptide links originates from glycine. The dipeptoids contain -propyl groups on the nitrogen atom and varying size and shape alkyl side chains on the neighboring carbon atom. Experiments were carried out in high-pressure steel rocking cells using the slow constant cooling (SCC) test method (1 °C/h) and a synthetic natural gas mixture. All the dipeptoids showed good KHI performance with the best result being for that with a glycine--propylleucine repeating unit (), which has pendant iso-butyl groups on the carbon atom. It exhibited the same KHI performance as poly(-vinyl caprolactam). Dipeptoids with smaller or longer alkyl groups than iso-butyl gave worse performance. It is conjectured that the iso-butyl group is the optimal carbon length for this polymer class. In addition, the end-branching maximizes the van der Waals interaction with open cavities on growing hydrate particles, which must occur without loss of hydrogen-bonding from the neighboring peptide linkage for optimum KHI performance. Thus, the study provides further evidence for the premise that good KHI molecules must contain multiple amphiphilic groups (often as polymers) with optimal size and shape hydrophobic groups adjacent to strong hydrogen bonding groups. The solvent, -butyl glycol ether, was shown to be a synergist for , lowering the onset temperature of hydrate formation in SSC tests relative to the polymer alone.
