Novel and pragmatic exploration of variation in glottic parameters in non-parallel versus parallel vocal cord CT planes with potential reporting pitfalls.

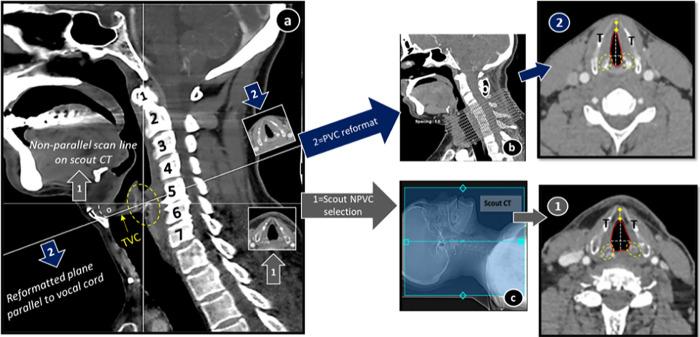

Oblique orientation of vocal cord demands strict compliance, by technicians and clinicians, to the recommended parallel plane CT scan of larynx. Repercussions of non-compliance has never been investigated before. We aimed to observe influence of non-parallel vocal cord plane CT scan on qualitative and quantitative glottic parameters, keeping parallel plane CT as a standard for comparison. Simultaneous identification of potential suboptimal imaging sequelae as a result of unformatted CT plane was also identified. In this study we included 95 normal adult glottides and retrospectively analyzed their anatomy in two axial planes, non-parallel plane ① and parallel to vocal cord plane ②. Qualitative (shape, structures at glottic level) and quantitative (anterior commissure ACom, vocal cord width VCw, anteroposterior AP, transverse Tr, cross-sectional area CSA) glottic variables were recorded. Multivariate statistical analysis was used to predict pattern and their impact on glottic anatomy. Plane ① displayed supraglottic features in glottis; adipose (90.5%) and split thyroid laminae (70.6%). Other categorical variables: atypical shape, submental structures and multilevel vertebral crossing were also in majority. All glottic dimensions varied significantly between two planes with most in ACom (-5.8mm) and CSA (-15.0 mm2). In contrast, plane ② manifested higher VCw (>73%), Tr (66.3%), CSA (64.2%) and AP (44.2%) measurements. On correlation analysis, variation in ACom, CSA, Tr was positively associated with VC or plane obliquity (p<0.05). This variability was more in obese and short necked subjects. Change in one parameter also modified other significantly i.e., ACom versus AP and CSA versus Tr. Results indicated statistically significant change in subjective and objective anatomical parameters of glottis on non-application of appropriate CT larynx protocol for image analysis hence highlighting importance of image reformation.
