D'Angelo Sebastiano C, Martín Antonio J, Cobo Selene, Ordóñez Diego Freire, Guillén-Gosálbez Gonzalo, Pérez-Ramírez Javier
Institute for Chemical and Bioengineering, Department of Chemistry and Applied Biosciences, ETH Zürich, Vladimir-Prelog-Weg 1 8093 Zürich Switzerland
Centre for Process Systems Engineering, Imperial College of Science, Technology and Medicine, South Kensington Campus, Roderic Hill Building London SW7 2BY UK.
Energy Environ Sci. 2023 Mar 28;16(8):3314-3330. doi: 10.1039/d2ee02683j. eCollection 2023 Aug 9.

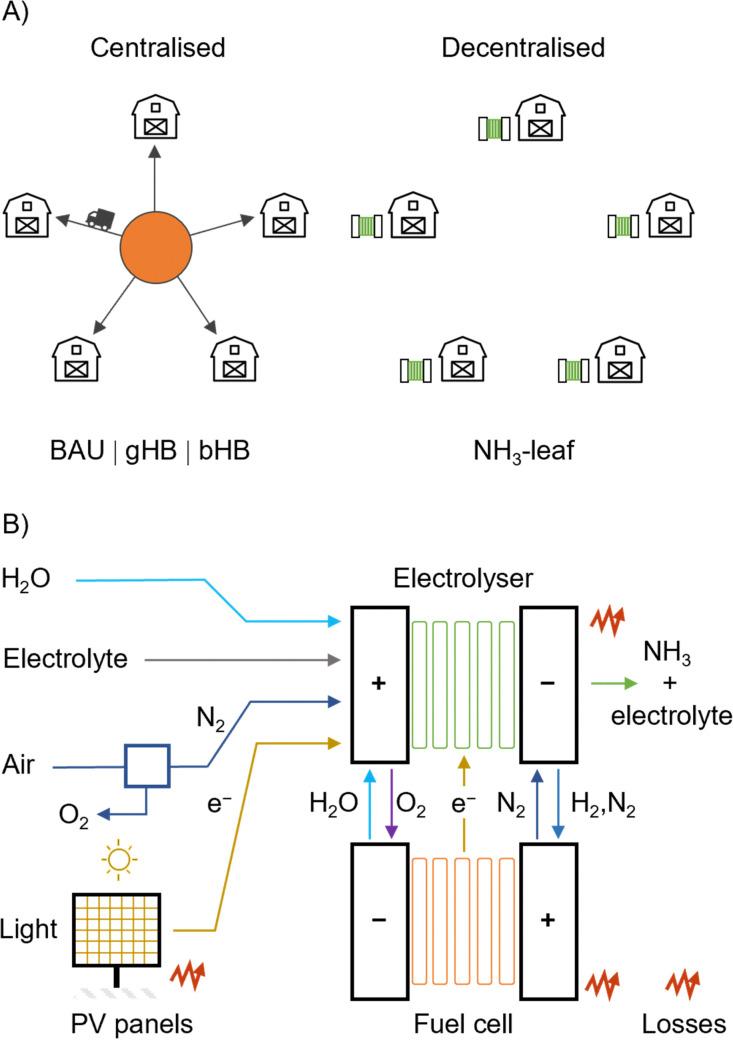

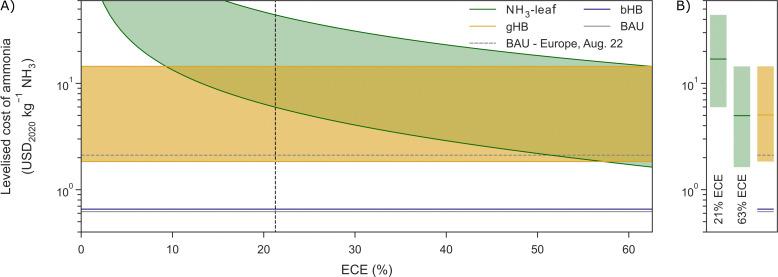

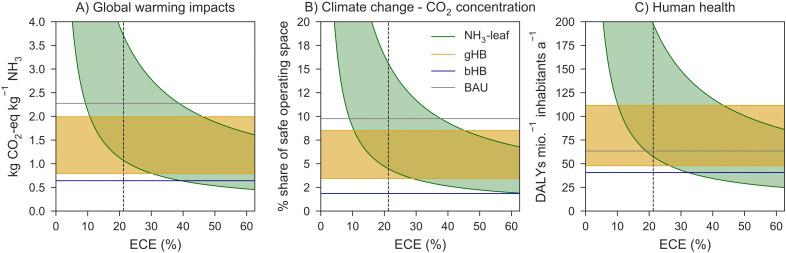

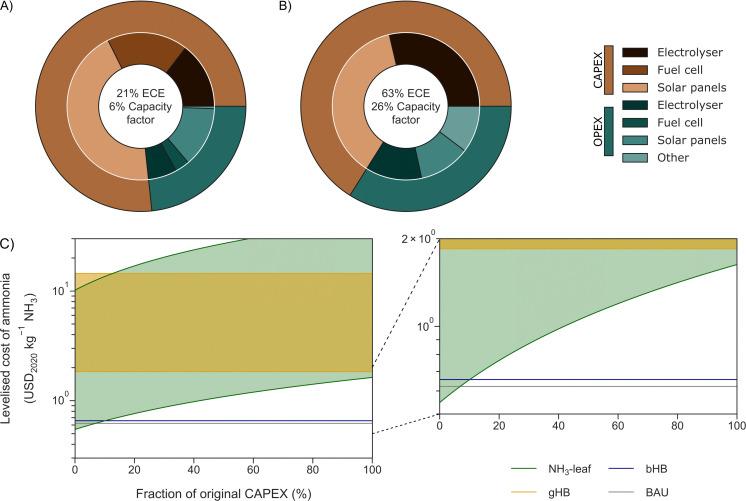

Intense efforts have been devoted to developing green and blue centralised Haber-Bosch processes (gHB and bHB, respectively), but the feasibility of a decentralised and more sustainable scheme has yet to be assessed. Here we reveal the conditions under which small-scale systems (NH-leaves) based on the electrocatalytic reduction of nitrogen (eNR) powered by photovoltaic energy could realise a decentralised scheme competitive in terms of environmental and economic criteria. For this purpose, we calculated energy efficiency targets worldwide, providing clear values that may guide research in the incipient eNR field. Even at this germinal stage, the NH-leaf technology would compete favourably in sunny locations for CO-related Earth-system processes and human health relative to the business-as-usual production scenario. Moreover, a modest 8% gain in energy efficiency would already make them outperform the gHB in terms of climate change-related impacts in the sunniest locations. If no CO taxation is enforced, the lowest estimated ammonia production cost would be 3 times the industrial standard, with the potential to match it provided a substantial decrease of investment costs and very high selectivity toward ammonia in eNR are achieved. The disclosed sustainability potential of NH-leaf makes it a strong ally of gHB toward defossilised ammonia production.
人们已经付出巨大努力来开发绿色和蓝色集中式哈伯-博施法(分别为gHB和bHB),但分散式且更具可持续性方案的可行性尚未得到评估。在此,我们揭示了基于光伏能源驱动的氮电催化还原(eNR)的小规模系统(NH叶)在何种条件下能够实现一种在环境和经济标准方面具有竞争力的分散式方案。为此,我们计算了全球的能源效率目标,给出了明确数值,可为新兴的eNR领域的研究提供指导。即便在这个萌芽阶段,相对于常规生产情景,NH叶技术在阳光充足地区对于与CO相关的地球系统过程和人类健康而言也将具有竞争力。此外,能源效率仅适度提高8%,就会使其在阳光最充足地区的气候变化相关影响方面超过gHB。如果不征收CO税,估计的最低氨生产成本将是工业标准的3倍,若能大幅降低投资成本并在eNR中实现对氨的极高选择性,则有可能与之相当。所揭示的NH叶的可持续性潜力使其成为gHB实现无化石氨生产的有力盟友。
