Liu Zeye, Li Hang, Li Wenchao, Zhuang Donglin, Zhang Fengwen, Ouyang Wenbin, Wang Shouzheng, Bertolaccini Luca, Alskaf Ebraham, Pan Xiangbin
Department of Structural Heart Disease, National Center for Cardiovascular Disease, Fuwai Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China.
National Health Commission Key Laboratory of Cardiovascular Regeneration Medicine, Beijing, China.
Quant Imaging Med Surg. 2023 Dec 1;13(12):8657-8668. doi: 10.21037/qims-23-970. Epub 2023 Oct 8.

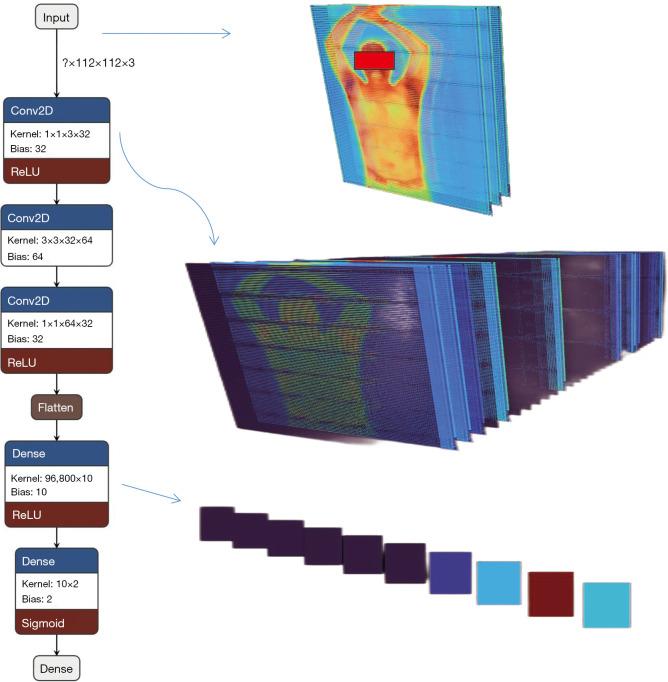

BACKGROUND: As the global burden of hypertension continues to increase, early diagnosis and treatment play an increasingly important role in improving the prognosis of patients. In this study, we developed and evaluated a method for predicting abnormally high blood pressure (HBP) from infrared (upper body) remote thermograms using a deep learning (DL) model. METHODS: The data used in this cross-sectional study were drawn from a coronavirus disease 2019 (COVID-19) pilot cohort study comprising data from 252 volunteers recruited from 22 July to 4 September 2020. Original video files were cropped at 5 frame intervals to 3,800 frames per slice. Blood pressure (BP) information was measured using a Welch Allyn 71WT monitor prior to infrared imaging, and an abnormal increase in BP was defined as a systolic blood pressure (SBP) ≥140 mmHg and/or diastolic blood pressure (DBP) ≥90 mmHg. The PanycNet DL model was developed using a deep neural network to predict abnormal BP based on infrared thermograms. RESULTS: A total of 252 participants were included, of which 62.70% were male and 37.30% were female. The rate of abnormally high HBP was 29.20% of the total number. In the validation group (upper body), precision, recall, and area under the receiver operating characteristic curve (AUC) values were 0.930, 0.930, and 0.983 [95% confidence interval (CI): 0.904-1.000], respectively, and the head showed the strongest predictive ability with an AUC of 0.868 (95% CI: 0.603-0.994). CONCLUSIONS: This is the first technique that can perform screening for hypertension without contact using existing equipment and data. It is anticipated that this technique will be suitable for mass screening of the population for abnormal BP in public places and home BP monitoring.
