Madadnia Behnam, Vanfleteren Jan, Bossuyt Frederick
Centre for Microsystems Technology, Imec and Ghent University, Technology Park 126, B-9052 Ghent, Belgium.
Micromachines (Basel). 2023 Dec 16;14(12):2248. doi: 10.3390/mi14122248.

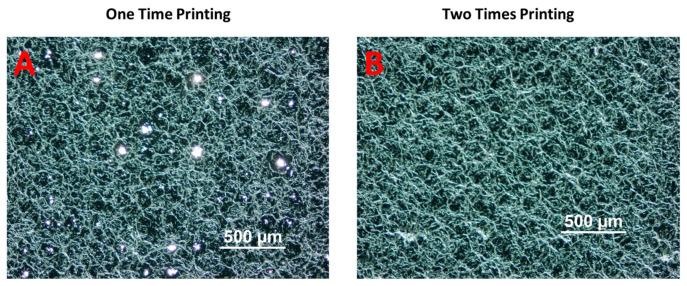

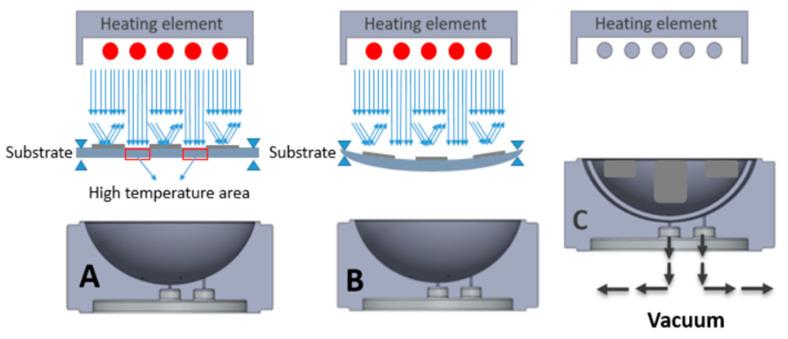

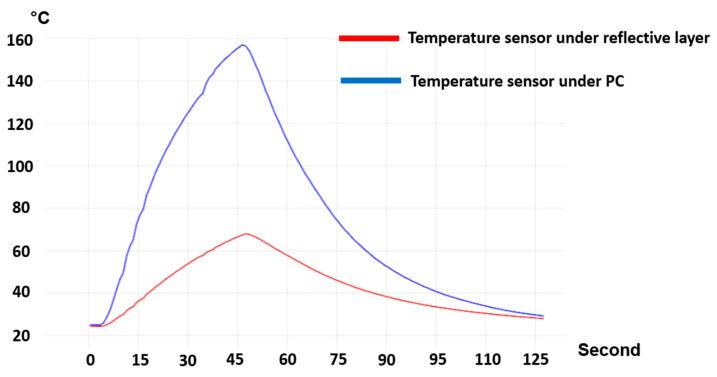

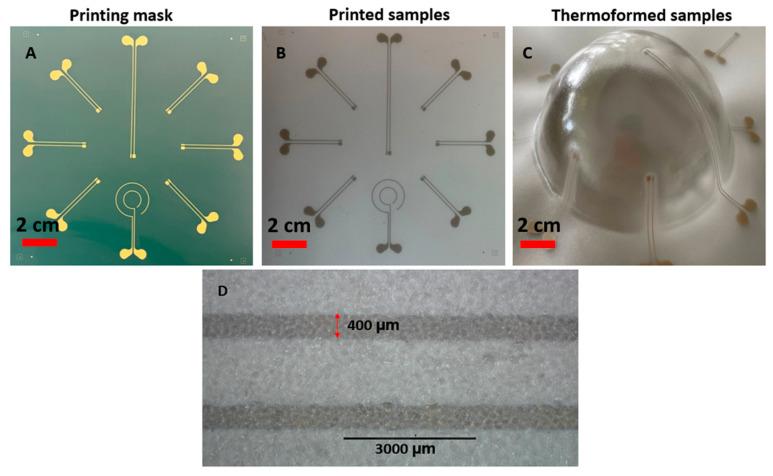

Three new methods for accurate electronic component positioning for thermoformed electronics are presented in this paper. To maintain the mechanical and electrical properties of printed-ink tracks, prevent deformation and stretching during thermoforming, and ensure reproducibility, the component positioning principle for all three proposed methods is based on keeping the temperature of some regions in the thermoplastic substrate less than the glass transition temperature of the thermoplastic carrier, to keep those regions resistant to plastic deformation. We have verified the accuracy of the different approaches by implementing these methods in a semi-sphere mold for positioning seven LEDs and one printed capacitive touch sensor. We compared the result of our fabrication processes with the typical fabrication process of in-mold electronics (direct printing on a thermoplastic foil and followed by a thermoforming step) and noticed that the sample produced by the typical process had tracks that were randomly stretched, tracks were not in a straight path after thermoforming and they were not electrically conductive. Furthermore, the final 3D position of the components was not reproducible sample by sample. However, with our proposed fabrication methods, the tracks and pads do not deform or expand during thermoforming and are electrically conductive after. Moreover, the round shape of the touch sensor remains the same as in the 2D design. Based on the results of the experiments, it appears that the proposed methods are capable of positioning electronic components with high precision in thermoformed electronics.
本文介绍了三种用于热成型电子产品中精确电子元件定位的新方法。为了保持印刷油墨线路的机械和电气性能,防止热成型过程中的变形和拉伸,并确保可重复性,所有三种提议方法的元件定位原理都是基于使热塑性基板中的某些区域的温度低于热塑性载体的玻璃化转变温度,以使这些区域抵抗塑性变形。我们通过在用于定位七个发光二极管和一个印刷电容式触摸传感器的半球形模具中实施这些方法,验证了不同方法的准确性。我们将我们的制造工艺结果与模内电子器件的典型制造工艺(直接在热塑性箔上印刷,然后进行热成型步骤)进行了比较,发现典型工艺生产的样品的线路被随机拉伸,热成型后线路不在直线上且不导电。此外,元件的最终三维位置在样品之间不可重复。然而,使用我们提议的制造方法,线路和焊盘在热成型过程中不会变形或扩展,并且之后具有导电性。此外,触摸传感器的圆形形状与二维设计中的相同。基于实验结果,看来所提议的方法能够在热成型电子产品中高精度地定位电子元件。
