Wang Jinning, Chen Mei, Zhang Jiayao, Sun Xinyi, Li Nan, Wang Xin
MOE Key Laboratory of Pollution Processes and Environmental Criteria, Tianjin Key Laboratory of Environmental Remediation and Pollution Control, College of Environmental Science and Engineering, Nankai University, No. 38 Tongyan Road, Jinnan District, Tianjin, 300350, China.
School of Environmental Science and Engineering, Tianjin University, No. 35 Yaguan Road, Jinnan District, Tianjin, 300350, China.
Environ Sci Ecotechnol. 2023 Dec 27;20:100375. doi: 10.1016/j.ese.2023.100375. eCollection 2024 Jul.

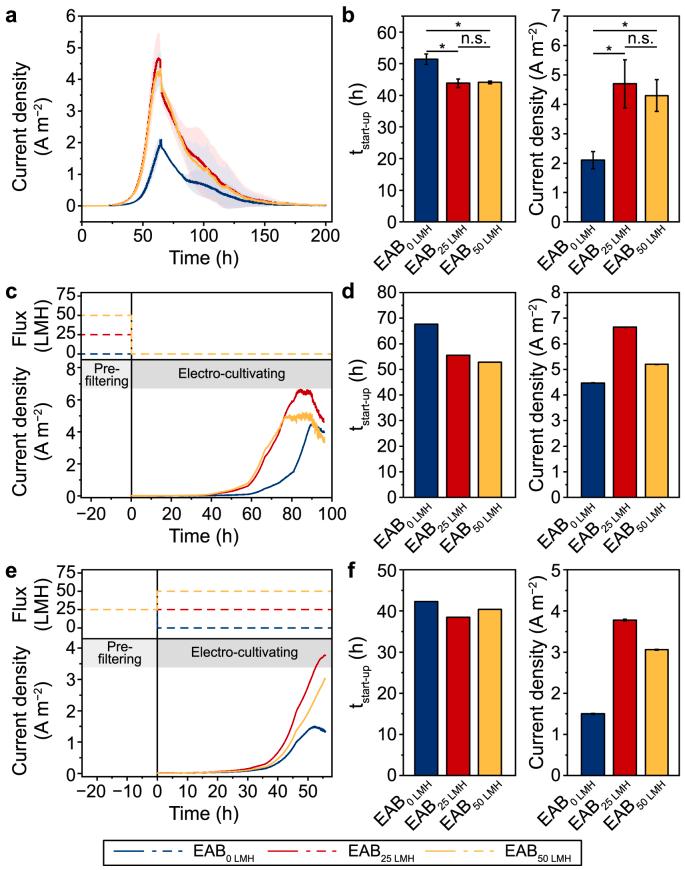

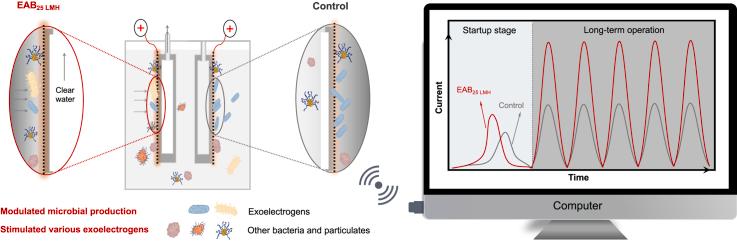

Bioelectrochemical systems (BES) have emerged as a dual-function technology for treating wastewater and recovering energy. A vital element of BES is the rapid formation and maintenance of electroactive biofilms (EABs). Previous attempts to accelerate EAB formation and improve electroactivities focused on enhancing the bacterial adhesion process while neglecting the rate-limiting step of the bacterial transport process. Here, we introduce membrane filtration into BES, establishing a dynamic membrane filtration system that enhances overall performance. We observed that optimal membrane flux considerably reduced the startup time for EAB formation. Specifically, EABs established under a 25 L m h flux (EAB) had a formation time of 43.8 ± 1.3 h, notably faster than the 51.4 ± 1.6 h in the static state (EAB). Additionally, EAB exhibited a significant increase in maximum current density, approximately 2.2 times higher than EAB. Pearson correlation analysis indicated a positive relationship between current densities and biomass quantities and an inverse correlation with startup time. Microbial analysis revealed two critical findings: (i) variations in maximum current densities across different filtration conditions were associated with redox-active substances and biomass accumulation, and (ii) the incorporation of a filtration process in EAB formation enhanced the proportion of viable cells and encouraged a more diverse range of electroactive bacteria. Moreover, the novel electroactive membrane demonstrated sustained current production and effective solid-liquid separation during prolonged operation, indicating its potential as a viable alternative in membrane-based systems. This approach not only provides a new operational model for BES but also holds promise for expanding its application in future wastewater treatment solutions.
