Thermal, thermomechanical and structural properties of recycled polyethylene terephthalate (rPET)/waste marble dust composites.

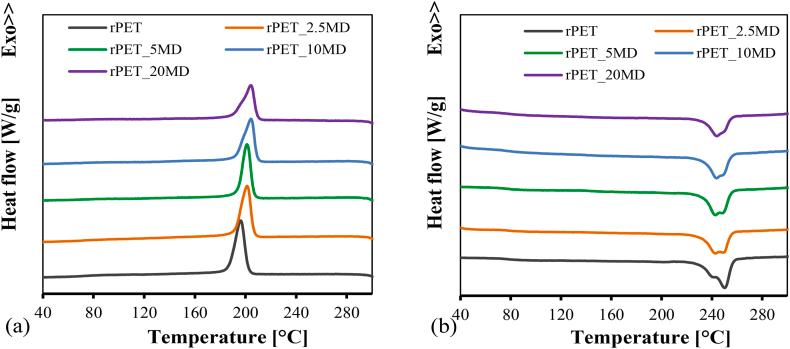

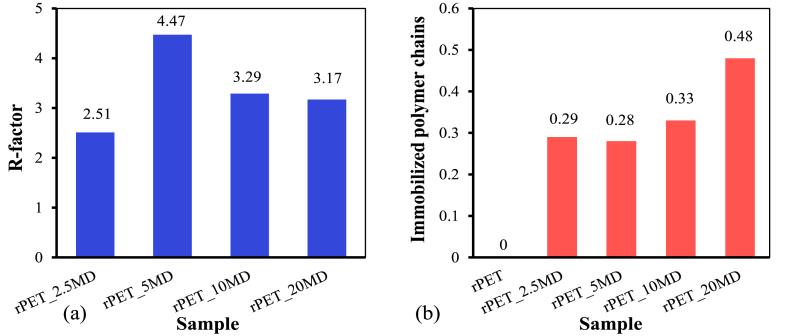

The main objective of this work is to review the capability of using waste marble dust (MD) particles as reinforcing materials in recycled polymeric composites to achieve environmentally friendly materials. In the present study, polymer composites were fabricated from recycled polyethylene terephthalate (rPET) and MD and then analyzed for their structural and thermal properties. Preparation of rPET-based composites containing 0-20 wt% MD was carried out through extrusion and injection molding. For their characterization Fourier transform infrared spectroscopy (FTIR), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), and dynamic mechanical analysis (DMA) were applied. The DSC analysis revealed a nucleating effect of MD on rPET, which was manifested in a higher crystallization temperature (196.7 °C ⇒ 204.4 °C); however, the marble particles were also found to hamper chain mobility, thereby decreasing the crystallinity ratio (23.7 % ⇒ 19.2 %) of rPET and altering its crystalline structure. According to the TGA measurements, a slight increase occurred in the thermal stability of rPET, its major decomposition temperature increased from 446 °C to 451 °C when 20 wt% MD was incorporated into it. DMA showed an improved stiffness in the entire investigated temperature range for MD-filled composites versus neat rPET. Additionally, several factors were derived from the DMA data, including the effectiveness factor, degree of entanglement, and reinforcing efficiency factor which all suggested a decent interaction between the components indicating a proper reinforcing ability of marble powder. However, above 5 wt% MD content the reinforcing efficiency deteriorated due to the agglomeration of filler particles, which was also supported by scanning electron microscopic images.
