Embrittlement Mechanisms of HR3C Pipe Steel at Room Temperature in Ultra-Supercritical Unit.

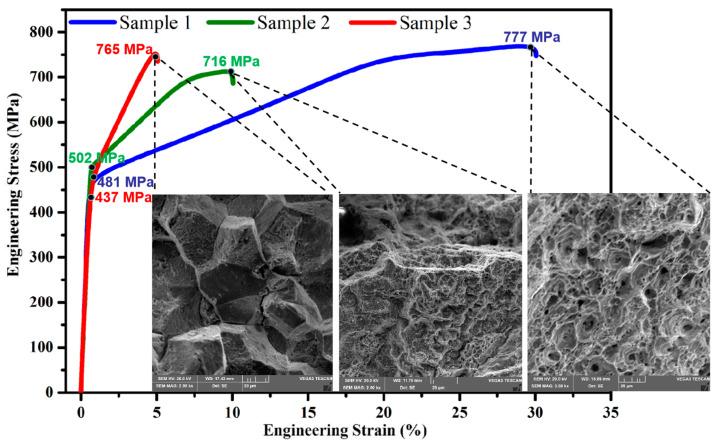

HR3C steel is an austenitic high-temperature-resistant steel. Because of its good strength and high-temperature performance, it has been widely used in ultra-supercritical power plant boilers. With the increasingly frequent start-up and shutdown of thermal power units, leakages of HR3C steel pipes have occasionally occurred due to the embrittlement of HR3C pipe steel after a long service duration. In this study, the embrittlement mechanisms of HR3C pipe steel are investigated systematically. The mechanical properties of the pipe steel after running for 70,000 h in an ultra-supercritical unit were determined. As a comparison, the pipe steel supplied in the same batch was aged at 700 degrees Celsius for 500 h. The mechanical properties and the micro-precipitation of the aged counterparts were also determined for comparison. The results show that the embrittlement of HR3C pipe steel in service for 70,000 h is obvious. The average impact absorption is only 5.5 J, which is a decrease of 96.7%. It is found that embrittlement of HR3C steel also occurs after 500 h of aging at 700 °C, and the average value of impact absorption energy decreases by 70.4%. The comparison experiment between the in-service pipe steel and the aged pipe steel shows that in the rapid decline stage of the impact toughness of HR3C steel, the MC carbide in the microstructure has a continuous chain distribution in the grain boundary. There were no other precipitated phases observed. The rapid precipitation and aggregation of MC carbides leads to the initial embrittlement of HR3C steel at room temperature. The CRFe-type σ phase was found in the transmission electron microscope (TEM) image of the steel pipe after 70 thousand hours of use. The precipitation of the σ phase further induces the embrittlement of HR3C pipe steel after a long service duration.
