Exploring the Role of an Electrolyte Additive in Suppressing Surface Reconstruction of a Ni-Rich NMC Cathode at Ultrahigh Voltage via Enhanced In Situ and Operando Characterization Methods.

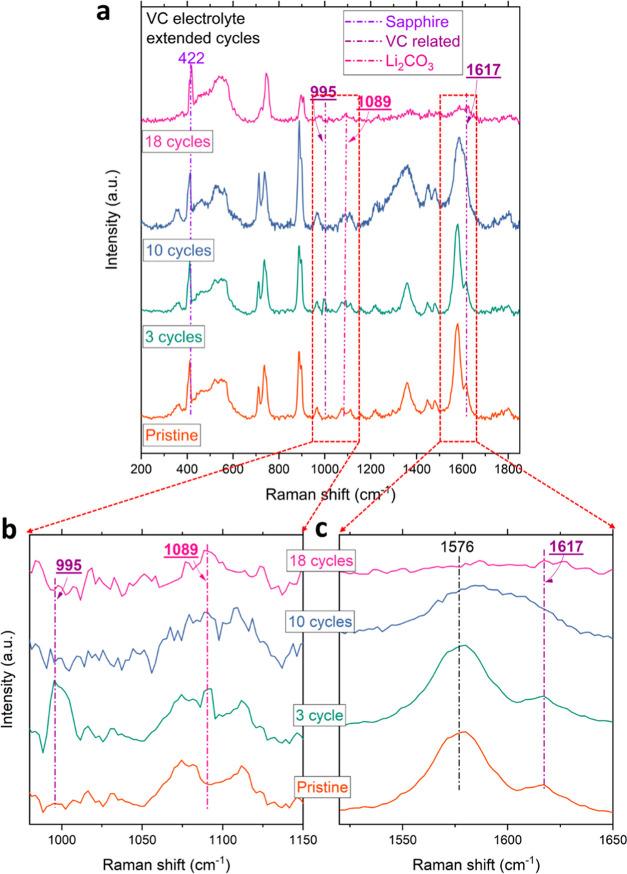

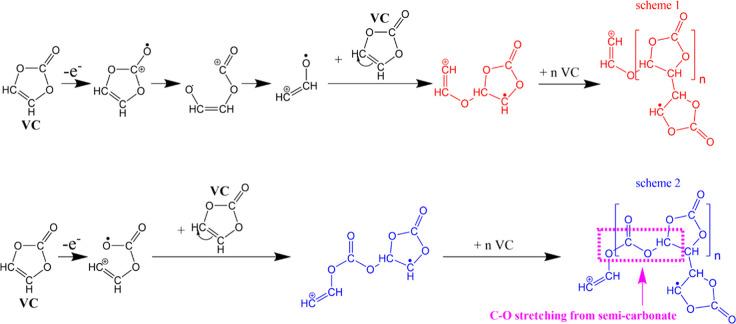

Vinylene carbonate (VC) is a widely used electrolyte additive in lithium-ion batteries for enhanced solid electrolyte interphase formation on the anode side. However, the cathode electrolyte interphase (CEI) formation with VC has received a lot less attention. This study presents a comprehensive investigation employing advanced in situ/operando-based Raman and X-ray absorption spectroscopy (XAS) to explore the effect of electrolyte composition on the CEI formation and suppression of surface reconstruction of LiNiMnCoO (NMC) cathodes. A novel chemical pathway via VC polymerization is proposed based on experimental results. In situ Raman spectra revealed a new peak at 995 cm, indicating the presence of C-O semi-carbonates resulting from the radical polymerization of VC. Operando Raman analysis unveiled the formation of NiO at 490 cm in the baseline system under ultrahigh voltage (up to 5.2 V). However, this peak was conspicuously absent in the VC electrolyte, signifying the effectiveness of VC in suppressing surface reconstruction. Further investigation was carried out utilizing in situ XAS compared X-ray absorption near edge structure spectra from cells of 3 and 20 cycles in both electrolytes at different operating voltages. The observed shift at the Ni K-edge confirmed a more substantial reduction of Ni in the baseline electrolyte compared to that in the VC electrolyte, thus indicating less CEI protection in the former. A sophisticated extended X-ray absorption fine structure analysis quantitatively confirmed the effective suppression of rock-salt formation with the VC electrolyte during the charging process, consistent with the operando Raman results. The in situ XAS results thus provided additional support for the key findings of this study, establishing the crucial role of VC polymerization in enhancing CEI stability and mitigating surface reconstruction on NMC cathodes. This work clarifies the relationship between the enhanced CEI layer and NMC degradation and inspires rational electrolyte design for long-cycling NMC cathodes.
