Technical note: SpekPy Web-online x-ray spectrum calculations using an interface to the SpekPy toolkit.

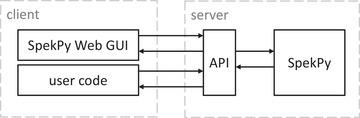

Knowledge of the photon spectrum emitted from an x-ray tube is frequently needed in imaging and dosimetry contexts. As the spectrum characteristics are influenced by several parameters and routine measurement of a spectrum is often impractical, a variety of software programs have been developed over the decades for convenient calculations. SpekPy is a state-of-the-art software package containing several spectrum models, and was created to estimate photon spectra originating from x-ray tubes using a small set of input parameters (e.g., anode material, anode angle, tube potential, filtration, etc.). SpekPy is distributed as a Python toolkit and is available free of charge. The toolkit does, however, lack a graphical user interface and a user is required to write a Python script to make use of it. In this work this limitation is addressed by introducing a web application called SpekPy Web: a graphical user interface together with an application programmable interface (API). These developments both make the SpekPy spectrum models accessible to a broader set of users and increases the ease of use for existing users. SpekPy Web is hosted at: https://spekpy.smile.ki.se. The functionality of the software is demonstrated, using its API, by estimating first half-value layers (HVLs) for 15 standard beam qualities from the International Bureau of Weights and Measures (BIPM). The estimated HVLs were found to all be within 3.5% agreement when compared to experimental values, with an average calculation time of 2.5 s per spectrum. half-value-layer, software, x-ray spectrum.
