Uddin Mohammed Nasir, Hoque K E, Billah M M
Department of Information and Communication Technology (ICT), Bangladesh University of Professionals (BUP), Dhaka-1216, Bangladesh.
Department of Arts and Sciences, Faculty of Engineering, Ahsanullah University of Science and Technology, Dhaka-1208, Bangladesh.
Heliyon. 2024 Mar 2;10(5):e26889. doi: 10.1016/j.heliyon.2024.e26889. eCollection 2024 Mar 15.

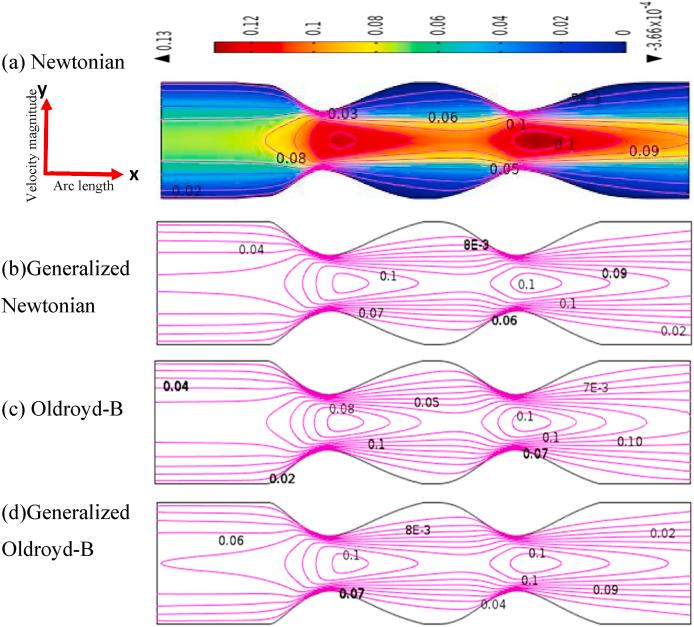

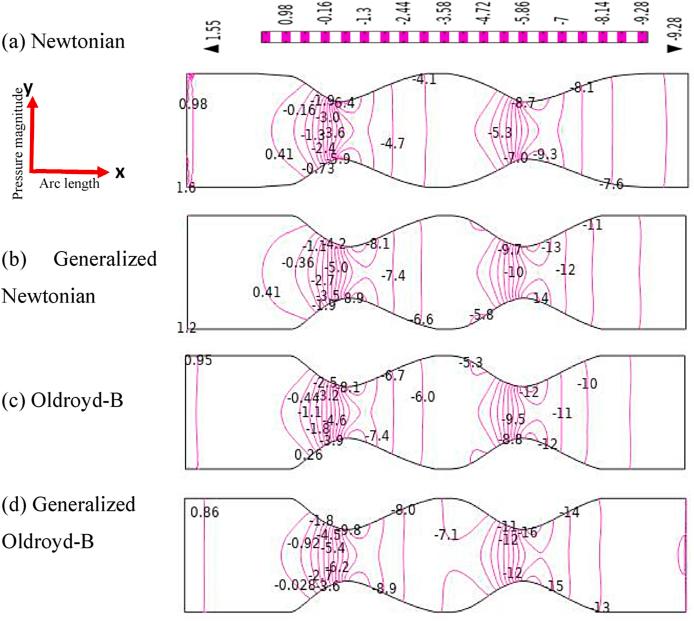

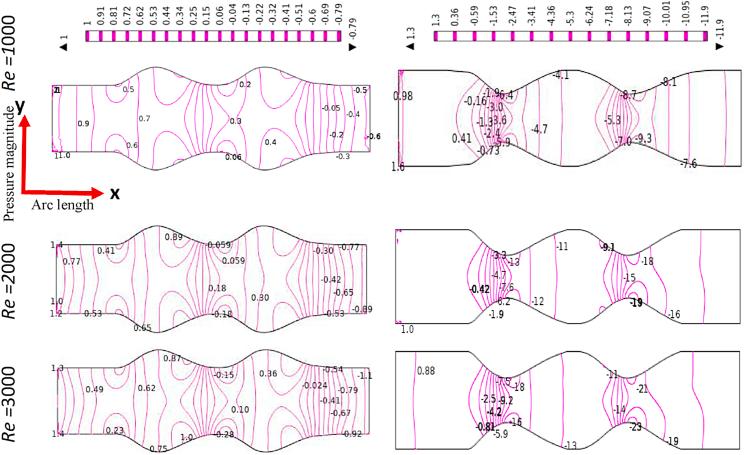

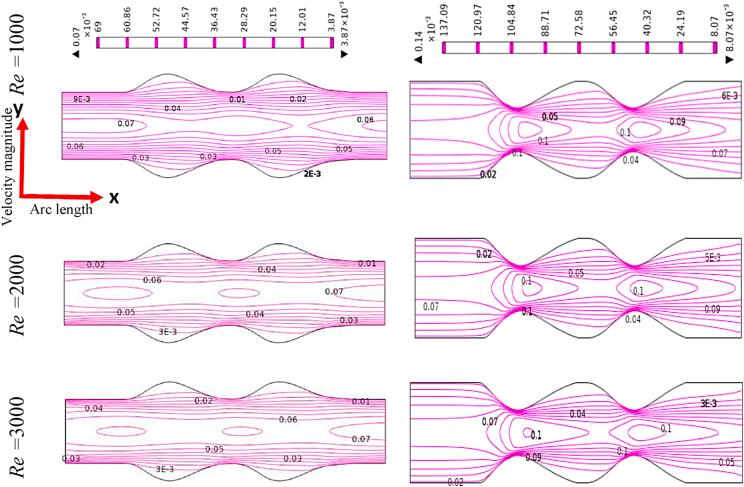

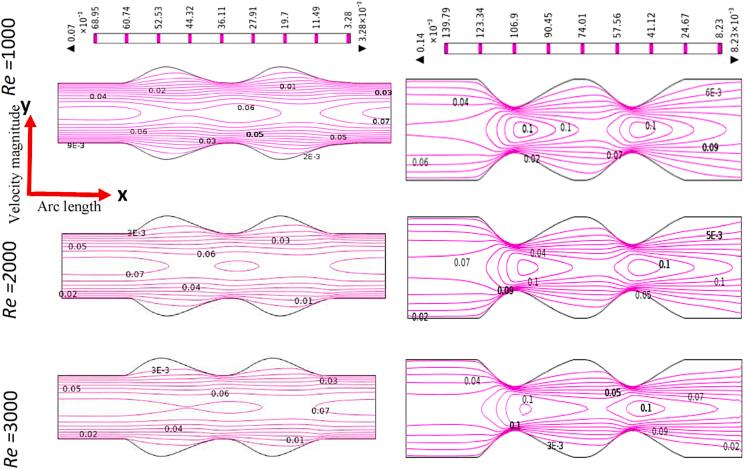

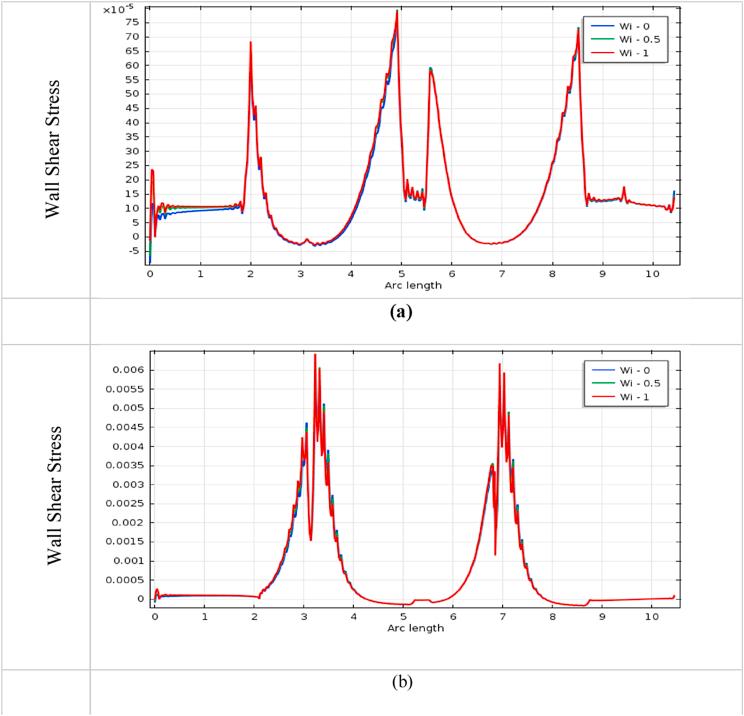

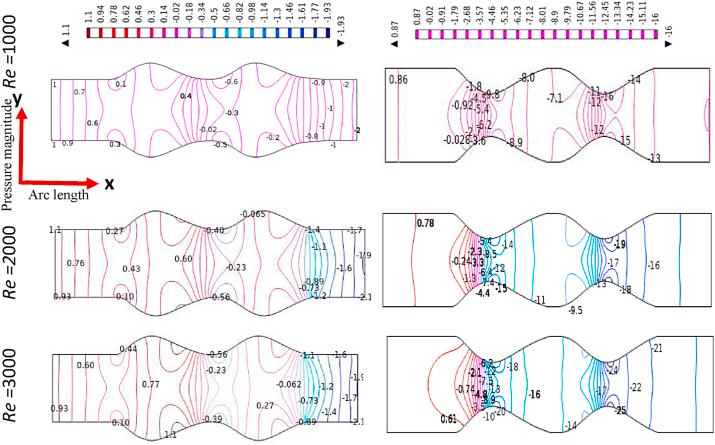

The comparative effect of serial stenosis and aneurysms arteries on blood flow is examined to identify atherosclerotic diseases. The finite element approach has been used to solve the continuity, momentum, and Oldroyd-B partial differential equations to analyze the blood flow. Newtonian and non-Newtonian both cases are taken for the viscoelastic response of blood. In this study, the impact of multiple stenotic and aneurysmal arteries on blood flow have been studied to determine the severity of atherosclerosis diseases through the analysis of blood behavior. The novel aspect of the study is its assessment of the severity of atherosclerotic disorders for the occurrence of serial stenosis and aneurysm simultaneously in the blood vessel wall in each of the four cases. The maximum abnormal arterial blood flow effect is found for the presence of serial stenoses compared to aneurysms which refers to the severity of atherosclerosis. At the hub of stenosis, the blood velocity magnitude and wall shear stress (WSS) are higher, whereas the arterial wall normal gradient values are lower. For all cases, the contrary results are observed at the hub of the aneurysmal model. The blood flow has been affected significantly by the increases in Reynolds number for both models. The influence of stenotic and aneurysmal arteries on blood flow is graphically illustrated in terms of the velocity profile, pressure distribution, and WSS. Medical experts may use this study's findings to assess the severity of cardiovascular diseases.
研究串联狭窄和动脉瘤动脉对血流的比较效应,以识别动脉粥样硬化疾病。采用有限元方法求解连续性、动量和Oldroyd - B偏微分方程来分析血流。血液的粘弹性响应考虑了牛顿流体和非牛顿流体两种情况。在本研究中,通过分析血液行为,研究了多个狭窄和动脉瘤动脉对血流的影响,以确定动脉粥样硬化疾病的严重程度。该研究的新颖之处在于,在四种情况中的每一种情况下,评估了血管壁中同时出现串联狭窄和动脉瘤时动脉粥样硬化疾病的严重程度。与动脉瘤相比,串联狭窄的存在导致最大的异常动脉血流效应,这表明了动脉粥样硬化的严重程度。在狭窄中心,血流速度大小和壁面剪应力(WSS)较高,而动脉壁法向梯度值较低。在所有情况下,动脉瘤模型中心的结果则相反。两种模型中,雷诺数的增加均显著影响了血流。通过速度剖面、压力分布和WSS以图形方式说明了狭窄和动脉瘤动脉对血流的影响。医学专家可利用本研究结果评估心血管疾病的严重程度。
