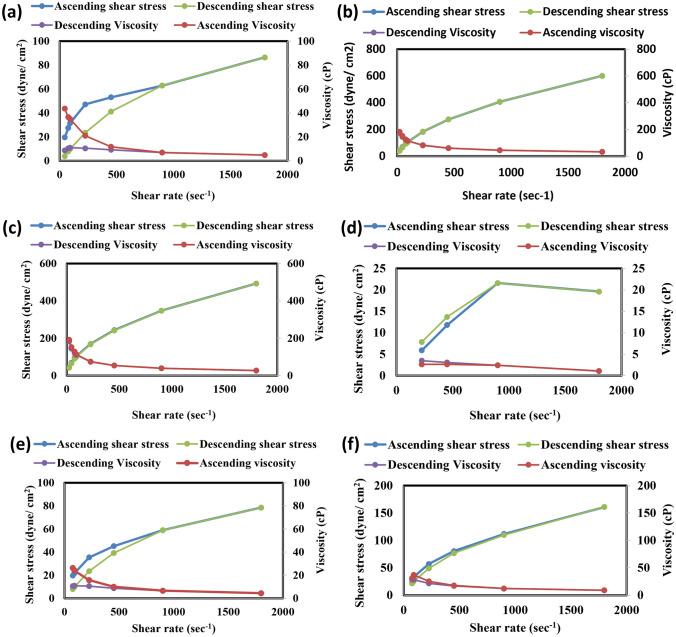

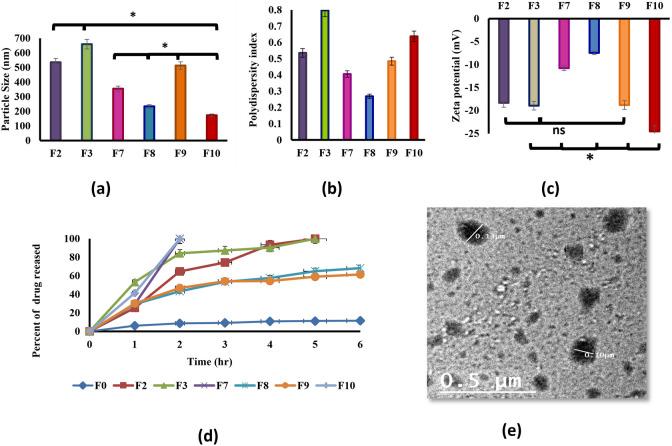

The majority of conventional osteoarthritis (OA) treatments are based on molecular adjustment of certain signaling pathways associated with osteoarthritis (OA) pathogenesis, however there is a significant need to search for more effective and safe treatments. This study centers around formulating Aceclofenac (ACF) with high bioavailability in combination with Citronellol oil and collagen. The optimal concentrations of Citronellol oil/D-Limonene oil, Tween 80, and Transcutol HP were determined using a pseudoternary phase diagram. The formulated nanoemulsions were studied for thermophysical stability. Thermodynamically stable formula were analyzed for droplet size, zeta potential, and in-vitro permeation. Then, collagen based nanoemulsion were prepared to capitalize on its efficacy in reducing osteoarthritis side effects and characterized for nano size properties. Formulae F10 and F10C were chosen as optimum nanosize formula. Hense, they were prepared and characterized as nanoemulgel dosage form. The nanoemulgel formulae F10NEG1 and F10CNEG1 showed reasonable viscosity and spreadability, with complete drug release after 4 h. These formulae were chosen for further In vivo anti-OA study. Collagen based ACF/citronellol emugel were able to modulate HMGB-1/RAGE/NF-κB pathway, mitigating the production of inflammatory cytokine TNF-α. They were also able to modulate Klotho and miR-499, reducing serum CTXII and COMP, by reducing the cartilage destruction. Histological investigations validated the efficacy, safety, and superiority of Aceclofenac in combination with Citronellol oil and collagen (F10CNEG1) over solo the treated group (F10NEG1 and blank). Hence, the findings of the current work encourage the use of this promising combined formula in treatment of OA patients.
