Synthesis and Application of Polymer SXFA in the Detection of Organophosphine Agents with a SAW Sensor.

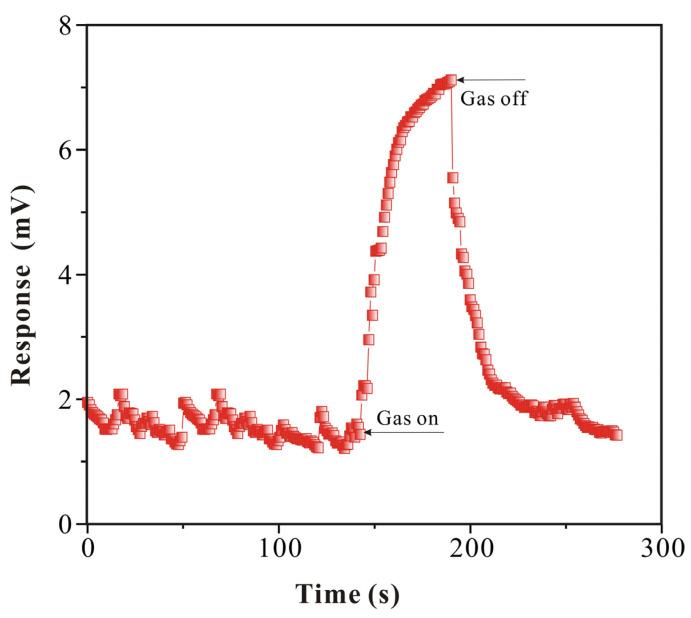

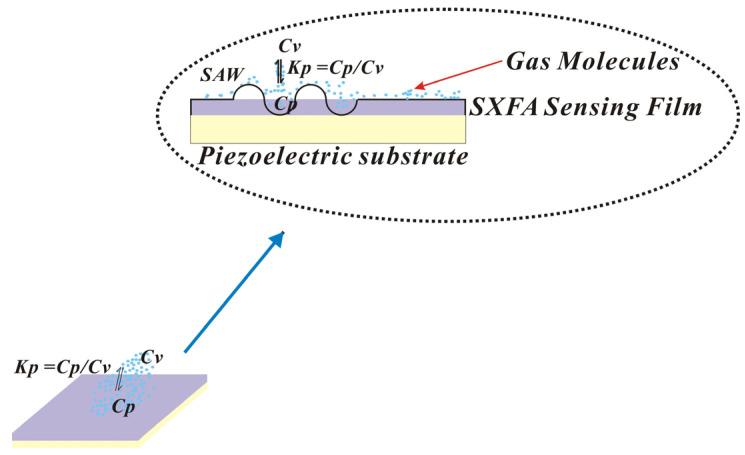

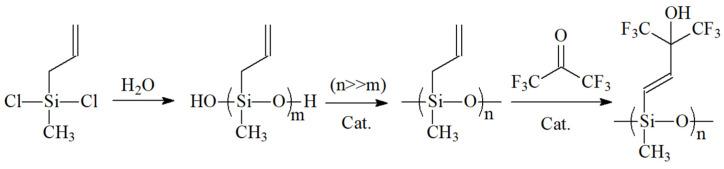

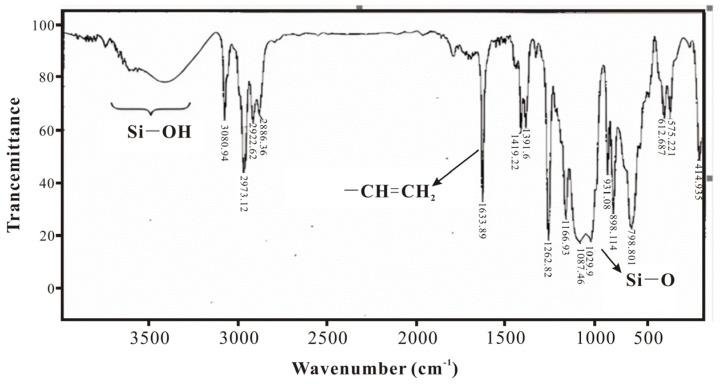

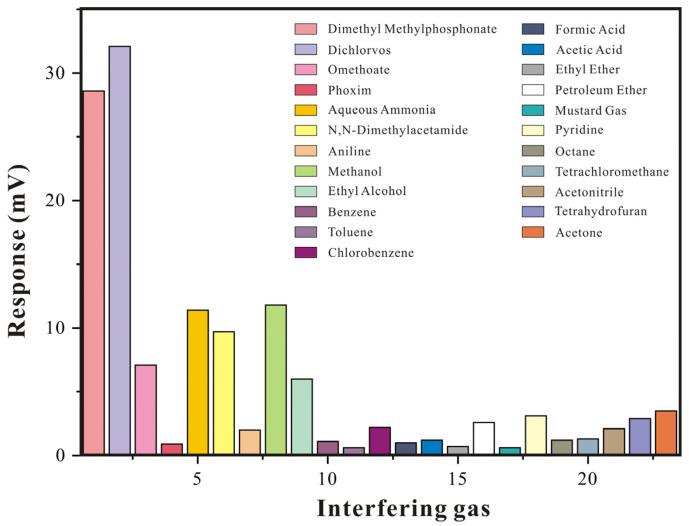

The effective detection of isopropyl methylfluorophosphonate (GB, sarin), a type of organophosphine poisoning agent, is an urgent issue to address to maintain public safety. In this research, a gas-sensitive film material, poly (4-hydroxy-4,4-bis trifluoromethyl)-butyl-1-enyl)-siloxane (SXFA), with a structure of hexafluoroisopropyl (HFIP) functional group was synthesized by using methyl vinylpropyl dichlorosilane and hexafluoroacetone trihydrate as initial materials. The synthesis process products were characterized using FTIR. SXFA was prepared on a 200 MHz shear surface wave delay line using the spin-coating method for GB detection. A detection limit of <0.1 mg/m was achieved through conditional experiments. Meanwhile, we also obtained a maximum response of 2.168 mV at a 0.1 mg/m concentration, indicating the much lower detection limit of the SAW-SXFA sensor. Additionally, a maximum response standard deviation of 0.11 mV with a coefficient of variation of 0.01 and a maximum recovery standard deviation of 0.22 mV with a coefficient of variation of 0.02 were also obtained through five repeated experiments. The results show that the SAW-SXFA sensor has strong selectivity and reproducibility, good selectivity, positive detection ability, high sensitivity, and fast alarm performance for sarin detection.
