PURPOSE

This pilot study aims to evaluate the feasibility and effectiveness of computer-assisted surgery protocol with 3D-preformed orbital titanium mesh (3D-POTM), using presurgical virtual planning and intraoperative navigation in primary inferomedial orbital fracture reconstruction.

METHODS

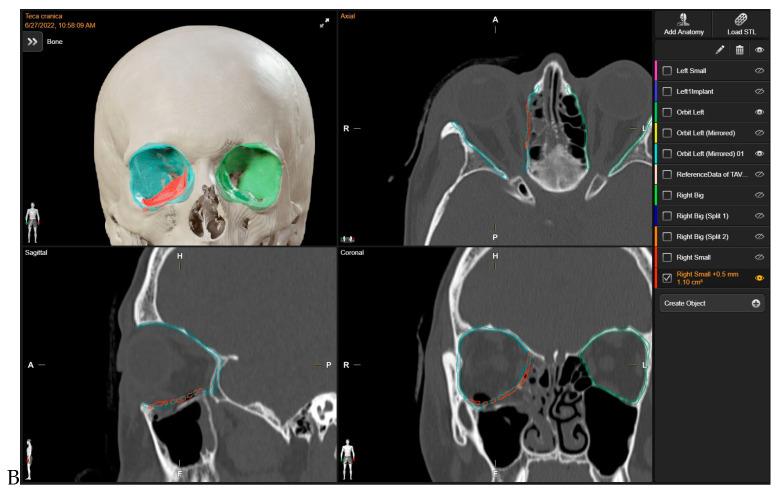

Between March 2021 and March 2023, perioperative data of patients undergoing surgery for unilateral inferomedial orbital fracture treated with 3D-POTM were analyzed. Presurgical virtual planning with a Standard Triangle Language file of preformed mesh was conducted using the mirrored unaffected contralateral side as a reference, and intraoperative navigation was used. The reconstruction accuracy was determined by: correspondence between postoperative reconstruction mesh position with presurgical virtual planning and difference among the reconstructed and the unaffected orbital volume. Pre- and postoperative diplopia and enophthalmos were assessed.

RESULTS

Twenty-six patients were included. Isolated orbital floor fracture was reported in 14 (53.8%) patients, meanwhile medial wall and floor one in 12 (46.1%) cases. The mean difference between final plate position and ideal digital plan was 0.692 mm (95% CI: 0.601-0.783). The mean volume difference between reconstructed and unaffected orbit was 1.02 mL (95% CI: 0.451-1.589). Preoperative diplopia was settled out in all cases and enophthalmos in 19 (76.2%) of 21 patients.

CONCLUSION

The proposed protocol is an adaptable and reliable workflow for the early treatment of inferomedial orbital fractures. It enables precise preoperative planning and intraoperative procedures, mitigating pitfalls and complications, and delivering excellent reconstruction, all while maintaining reasonable costs and commitment times.
