A Polarization-Insensitive, Vanadium Dioxide-Based Dynamically Tunable Multiband Terahertz Metamaterial Absorber.

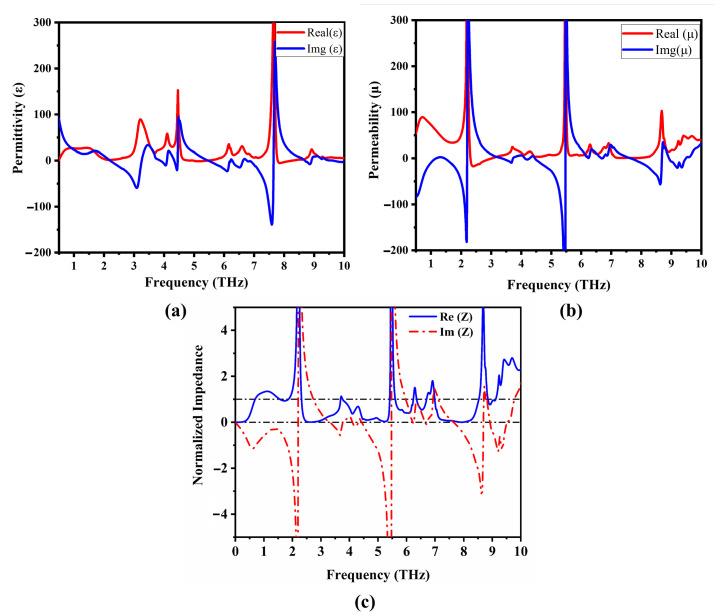

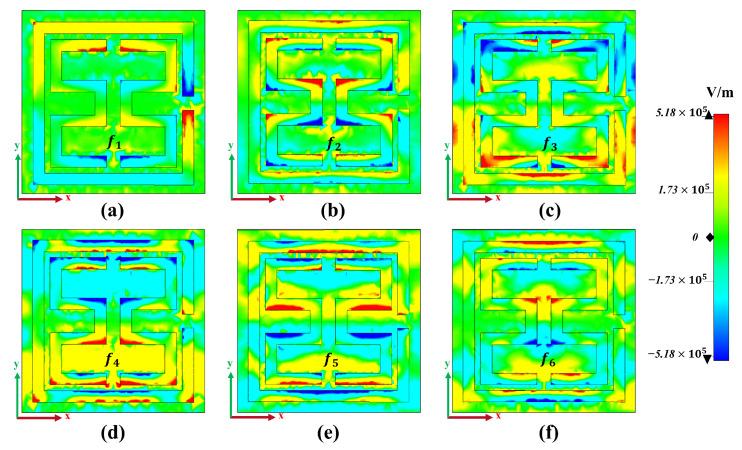

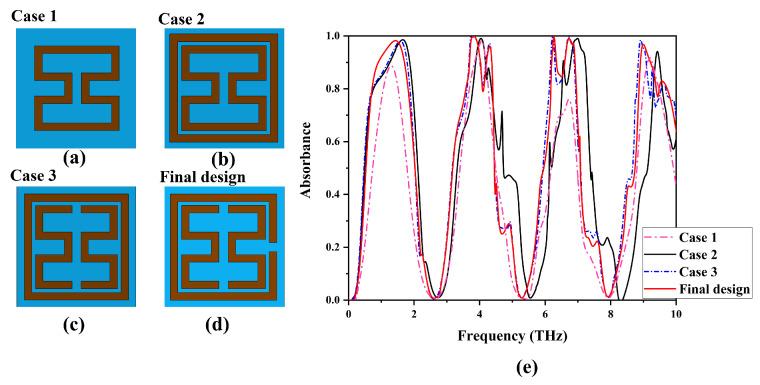

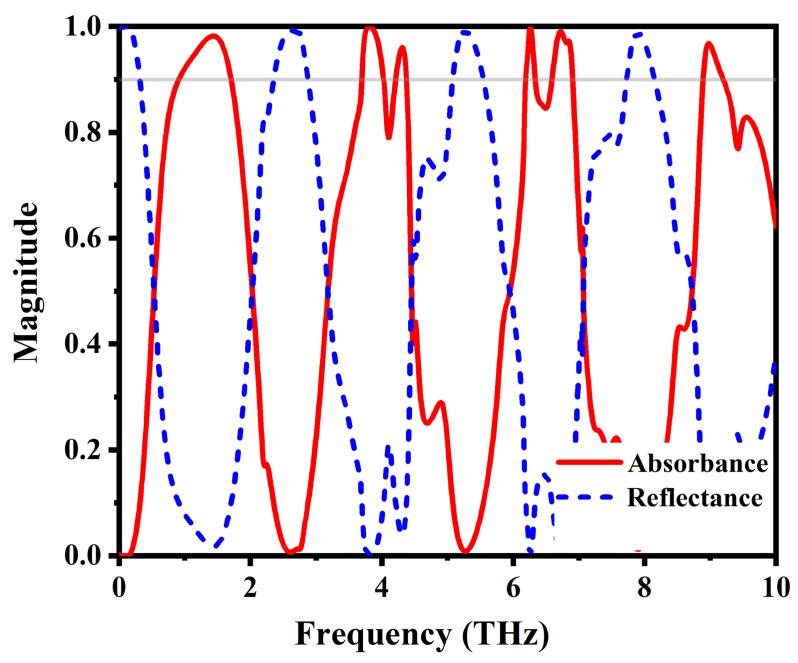

A tunable multiband terahertz metamaterial absorber, based on vanadium dioxide (VO), is demonstrated. The absorber comprises a three-layer metal-insulator-metal (MIM) configuration with a split ring and slots of VO on the uppermost layer, a middle dielectric substrate based on silicon dioxide (SiO), and a gold reflector on the back. The simulation results indicate that, when VO is in the metallic state, the proposed metamaterial exhibits nearly perfect absorption at six distinct frequencies. The design achieves an average absorption of 98.2%. The absorptivity of the metamaterial can be dynamically tuned from 4% to 100% by varying the temperature-controlled conductivity of VO. The proposed metamaterial absorber exhibits the advantages of polarization insensitivity and maintains its absorption over 80% under different incident angle conditions. The underlying physical mechanism of absorption is explained through impedance matching theory, interference theory, and the distribution of electric fields. The ability to achieve multiband absorption with tunable characteristics makes the proposed absorber a promising candidate for applications in terahertz sensing, imaging, communication, and detection. The polarization insensitivity further enhances its practicality in various scenarios, allowing for versatile and reliable performance in terahertz systems.
