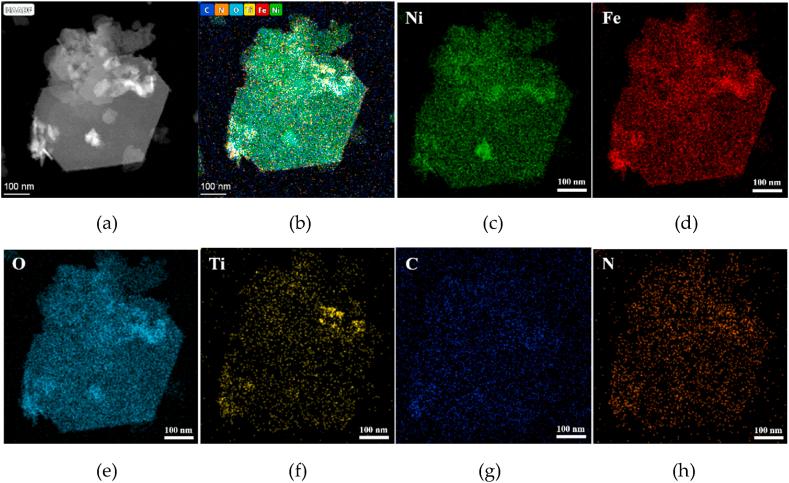

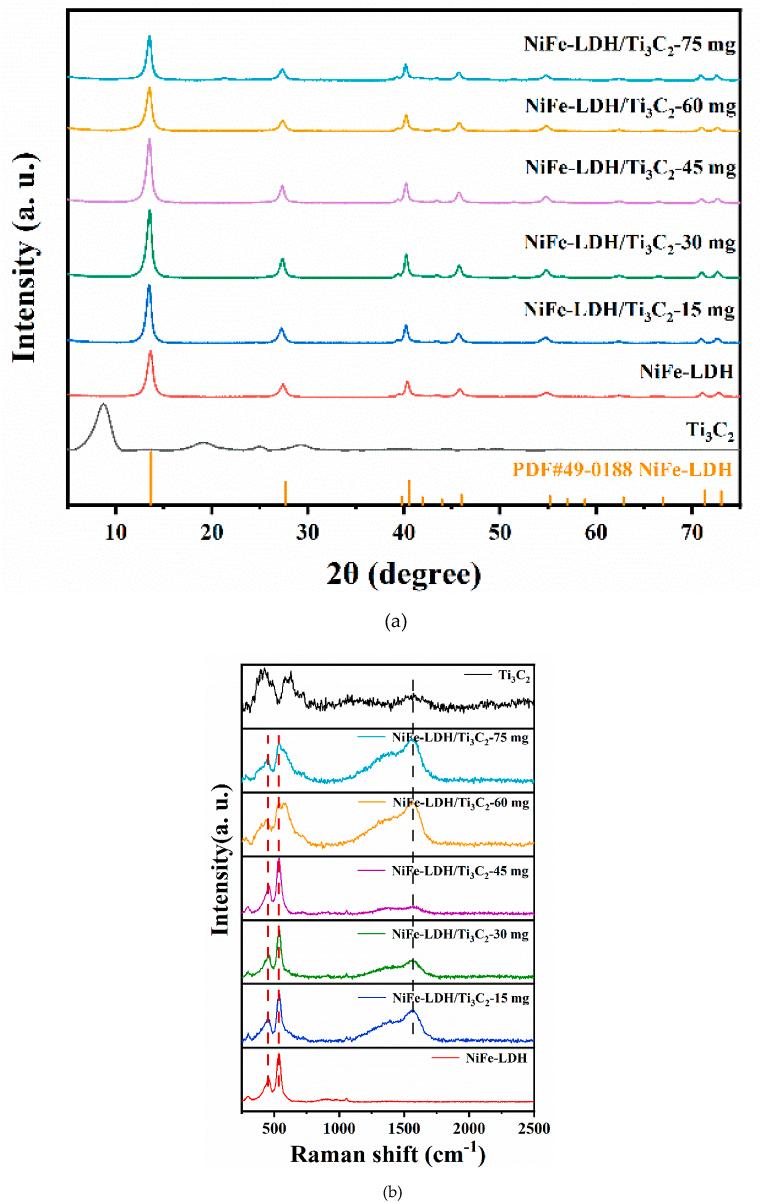

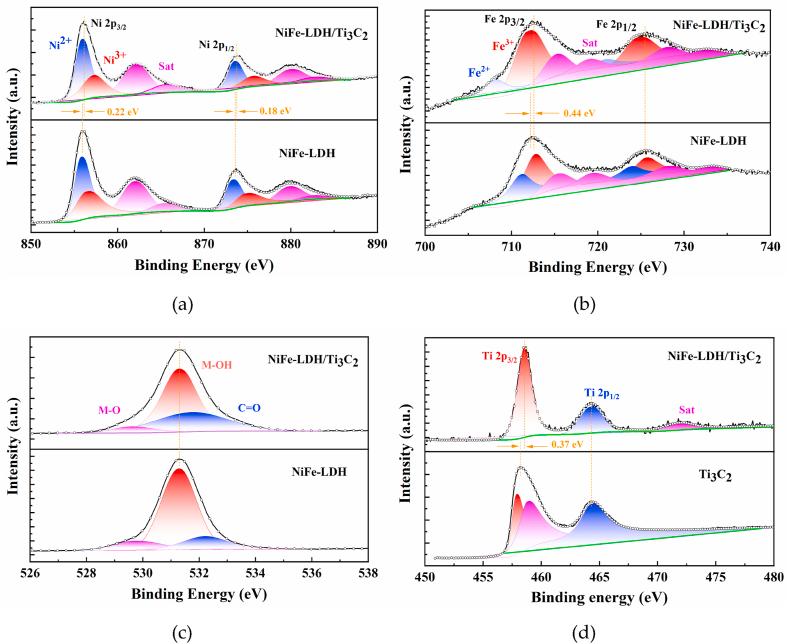

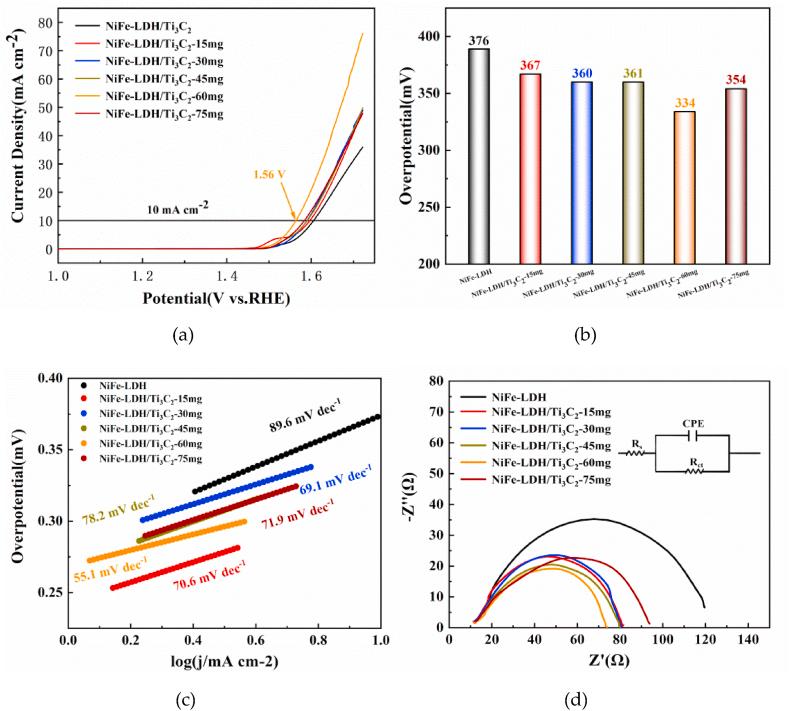

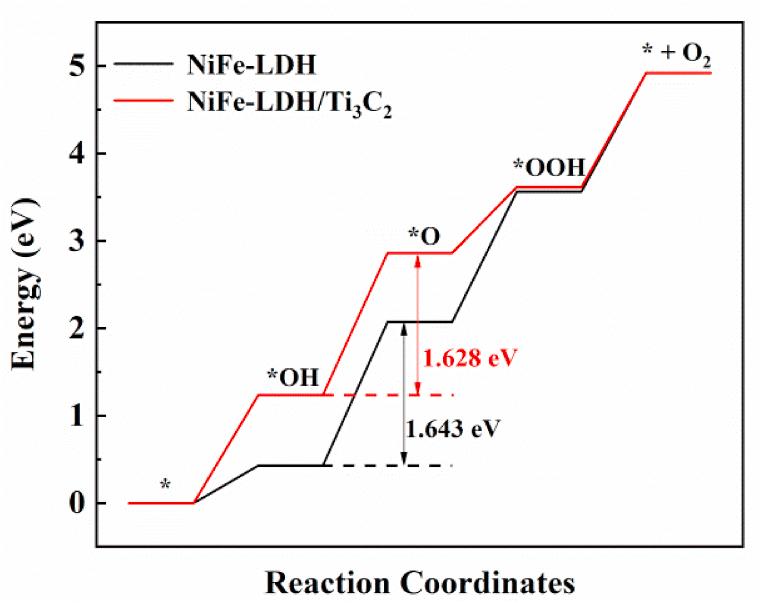

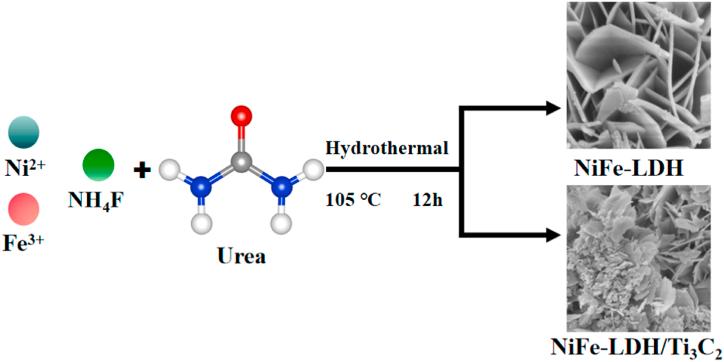

Oxygen evolution reaction (OER) is a very complex process with slow reaction kinetics and high overpotential, which is the main limitation for the commercial application of water splitting. Thus, it is of necessary to design high-performance OER catalysts. NiFe based layered double hydroxides (NiFe-LDHs) have recently gained a lot of attention due to their high reaction activity and simple manufacturing process. In this study, a novel electrocatalyst based on NiFe-LDH was constructed by introducing TiC, which was utilized to modulate the structural and electronic properties of the electrocatalysts. Structural examinations reveal that the TiC of 2D structure successfully dope the NiFe-LDHs nanosheets, forming NiFe-LDH/TiC heterojunctions. Firstly, the heterojunction substantially reduces the charge transfer resistance, promoting the electron migration between the LDH nanosheets. Secondly, theoretical calculations demonstrate that the energy barrier between the rate-determining step from *OH to *O is lowered, favoring the formation of the reaction intermediates and thus the occurrence of OER. As a result, the composite electrocatalyst exhibits a low overpotential of 334 mV at a current density of 10 mA/cm and a small Tafel slope of 55 mV/dec, which are superior to those of the NiFe-LDH by 11.2 % and 38.5 %, respectively. This study provides inspiration for promoting the performances of NiFe based electrocatalysts by utilizing 2D materials.
